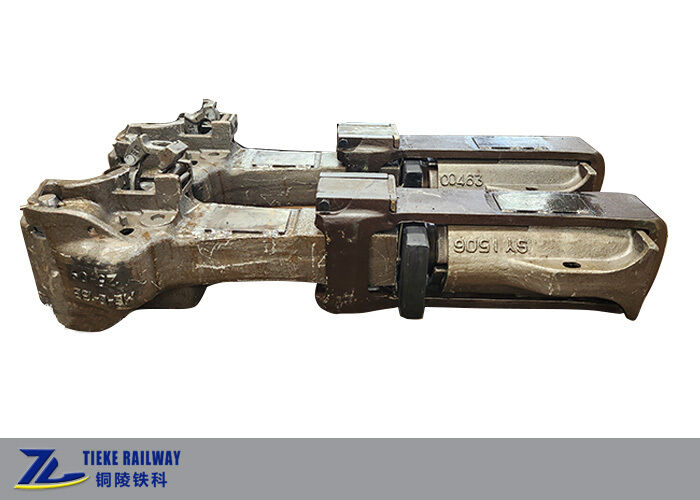

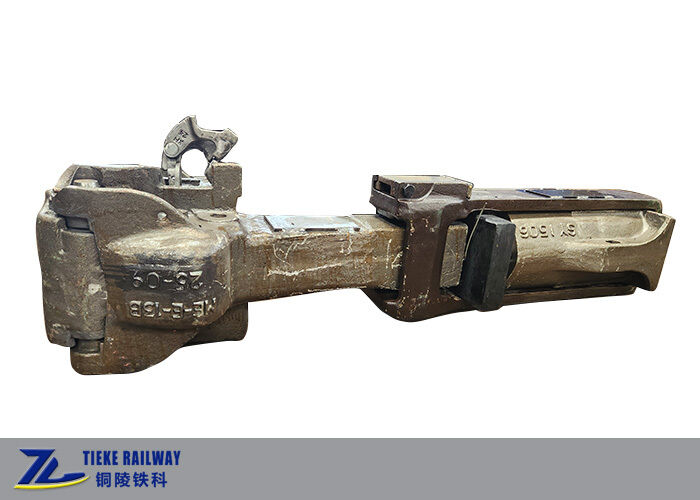

13B Railway Train Car Coupler Draft Gear Assembly Grade E Cast Steel with Yoke

13B Railway Train Car Coupler and Draft Gear Assembly

The 13B coupler was developed on the base of the 13A coupler and has been widely used in Chinese railway heavy load freight cars since 2007. It is made of E grade low alloy cast steel, with a coupler body minimum failure load of 4005 kN and a coupler knuckle minimum failure load of 3430 kN. The coupling clearance is 11.5 mm, which significantly improves the longitudinal dynamic performance of the train.

13B couplers are available in upper acting and lower acting types. They can be coupled with AAR hook couplers such as E, E/F and F type couplers, and also with domestic couplers such as No.16 and No.17 couplers. This assembly is supplied together with the draft gear (buffer), coupler yoke and yoke pin to form a complete coupler buffer device.

Main Technical Parameters

Why Choose Tieke Railway

Tieke Railway manufactures and exports railway wagons and wagon parts directly, with over 10 years of experience. We supply complete coupler buffer devices including coupler, draft gear, coupler yoke, yoke pin and related rigging for different gauges and standards. Send us your drawings or technical requirements for an accurate quotation.
