Place of Origin:
China
Brand Name:
Tieke
Breif introduction:
AAR E coupler and E/F coupler are AAR standard couplers. According to the open method, they could be divided into upper acting type and lower acting type. The hook, Knuckle and lock are all treatment by quenching and tempering. The touching profile adopt 10-A profile. The coupler materials comply with AAR M-201 standard, coupler profile comply with AAR S106 standard, and coupler manufacture comply with AAR M211 standard. All the AAR E coupler and E/F coupler adopt E50A knuckle, which are in consist and good interchangeability and compatibility with those currently in service in North America.
E/F coupler is developed on the basis of E coupler and F coupler, to meet the requirements of train passing curves and provide enough lateral swing. E/F coupler is mainly used for freight cars with long traction beams. The head of E/F coupler adopts the structure of E type coupler. The body and tail adopt the structure of F type coupler.

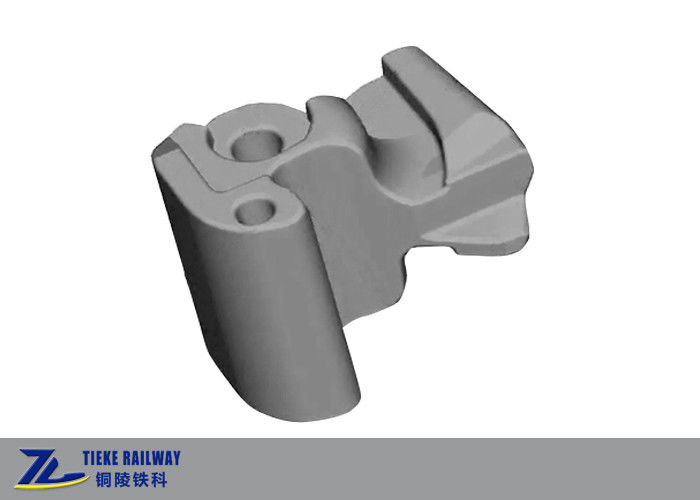

Coupler Knuckle is the control part of coupler lock and uncouple. AAR Knuckle E50AE is designed for E coupler, E/F coupler assembly. The E50AE Knuckle adopt E grade steel, complying with AAR standards for railway freight cars products. Knuckle E50AE is interchangeable with the couplers parts currently in service in North America.
We could also provide Knuckles or coupler parts for other AAR couplers, Chinese couplers and etc.
The structures of coupler hook:

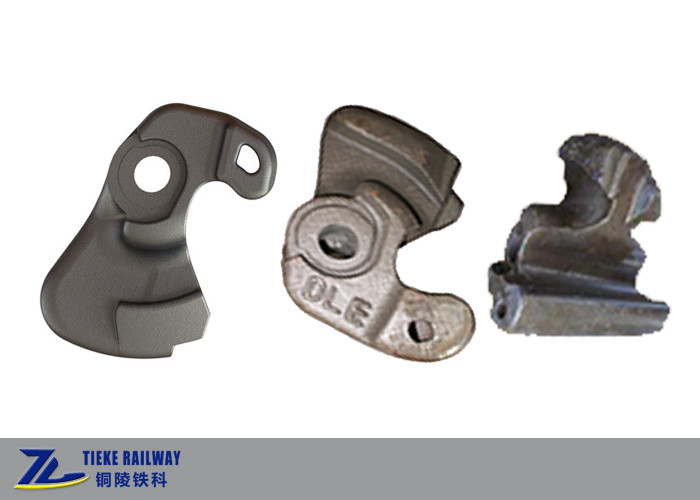

The coupler knuckles we could provide:
Why choose us?
Couplers ready for install:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons and wagon parts directly.
Q2: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q3: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q4: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
