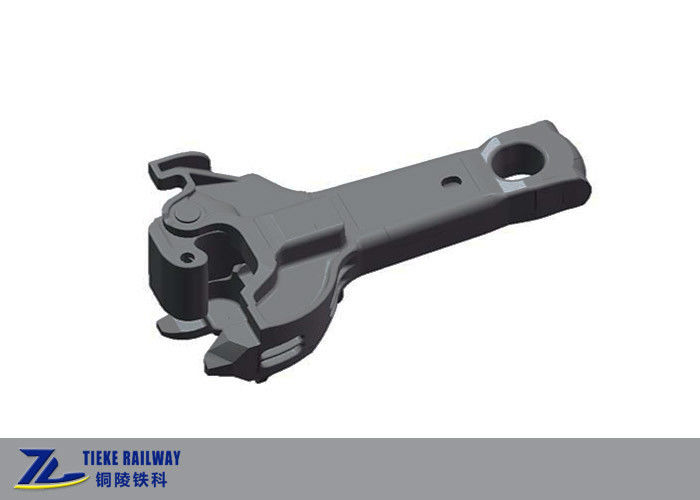

Anti Decoupling AAR F Rail Car Coupler FR Interlock Rotatable Locomotive Couplers

Anti Decoupling AAR F Rail Car Coupler FR Interlock Rotatable Locomotive Couplers

Interlock Rail Car Coupler

Anti Decoupling Rail Car Coupler

Anti Decoupling Locomotive Couplers

Place of Origin:

China

Brand Name:

Tieke

Contact Us
Request A Quote
Product Details
Name:
AAR F Couplers FR Couplers Anti Decoupling / Interlock / Rotatable Coupler
Material:
Cast Steel Grade E
Min. Failure Load Of Coupler Body:
4005kN
Min. Failure Load Of Coupler Knuckle:
3430kN
Material Standard:
AAR M 201 Grade E Steel
Coupler Touch Profile Standard:
AAR S-117 ‘F Type Interlock Coupler Profile’
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Wooden cases or pallet
Delivery Time
1-2 months
Payment Terms
T/T, L/C
Supply Ability
5000 sets per year
Product Description

AAR F Couplers FR Couplers Anti Decoupling / Interlock / Rotatable Coupler



Breif introduction:

F-type interlocking coupler was developed on the basis of H-type tight coupling for passenger cars in 1947 and became AAR standard coupler in 1954.

F coupler is made of E grade steel, material complies with AAR M201 standard, profile comply with AAR S117 standard, manufacture comply with AAR M211 standard.

FR rotatable couplers are developed to meet the requirements of coals and other bulk goods’ unloading without uncoupling and tipping, on base of F type coupler. FR Interlock rotatable couplers have been widely applied in heavy unit freight wagons, and have improved the transportation efficiency significantly.



Main technical features:

  • High structural strength, small coupling clearance, anti uncouple, interlock and auto centering functions, reliable function, good curve trafficability;
  • An additional anti falling device and one auxiliary interlock device are under the hook head;
  • Touch profile gap 9.5mm, 51% smaller than E type coupler;
  • The bottom support at the front end of coupler can effectively prevent the broken coupler from falling onto the rail, resulting in major accidents.



Main technical parameters:

Coupling line to hook shoulder length 305mm
Max. longitudinal movement clearance 9.5mm
Max. relative angle (between coupler heads) Horizontal: 3.45° Vertical: 2-0°
Max. longitudinal swing angle (on vehicle) 13 °
Max. vertical swing angle (on vehicle) Upward:5.3 downward: 7
Min failure load Knuckle:3430kN; Coupler body:4005kN
Material standard AAR M 201 Grade E Steel
Coupler touch profile AAR S-117 ‘F type interlock coupler profile’



Main dimension:

Anti Decoupling AAR F Rail Car Coupler FR Interlock Rotatable Locomotive Couplers 0


The anti decoupling device of F couplers:
Anti Decoupling AAR F Rail Car Coupler FR Interlock Rotatable Locomotive Couplers 1


Why choose us?

  1. Tieke has over 10 years railway wagons manufacturing experiences and we are able to provide full services for the wagons parts;
  2. Our coupler foundry is a dedicated foundry of Chinese Railways, the quality is assured;
  3. Tieke could provide complete set or parts of couplers like buffers, yokes, knuckles and etc, we could provide one stop service for your wagon parts.
  4. Besides Chinese couplers, we could also provide AAR coupler, GOST coupler, UIC couplers.


FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons and wagon parts directly.

Q2: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q3: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q4: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
