Railroad Coupler Buffer Locomotive Draft Gear MT 2 For Heavy Load Freight Cars

Railroad Coupler Buffer Locomotive Draft Gear MT 2 For Heavy Load Freight Cars

MT 2 Locomotive Draft Gear

Coupler Locomotive Draft Gear

Locomotive Railroad Draft Gear

Place of Origin:

China

Brand Name:

Tieke

Model Number:

MT-2

Contact Us
Request A Quote
Product Details
Name:
Train Car Coupler Buffer MT-2 Draft Gear For Heavy Load Freight Cars
Application:
Coupler Buffer For 60 T, 70 T, 80 T Railway Freight Wagons
Buffer Type:
Friction Spring Buffer
Impedance:
2270 KN
Capacity:
50 KJ
Stoke:
83 Mm
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Wooden cases
Delivery Time
1-2 months
Payment Terms
T/T, L/C
Supply Ability
20000 sets per year
Product Description

Train Car Coupler Buffer MT-2 Draft Gear for Heavy Load Freight Cars



Breif introduction:

Coupler buffer system is one of the most important devices of the vehicle. Owe to the coupler buffer, the locomotive to vehicle or vehicle to vehicle could be hooked together and the traction force could be transmitted during running and the impact force could be mitigated during shunting or braking. The coupler buffer device is composed of coupler, buffer (draft gear), coupler yoke, coupler yoke pin, impact seat, slave plate and other parts. The front slave plate, buffer and rear slave plate are installed in the coupler yoke in turn. The coupler and coupler yoke are connected as a whole with the help of coupler yoke pin. In a word, the coupler buffer has three functions: coupling, traction and buffer.



In the coupler buffer device, the coupler is to realize the coupling between locomotive and vehicle or between vehicles and transfer traction and impact force, and to make vehicle to keep a certain distance between vehicles. Buffer (draft gear) is to mitigate the collision between vehicles during train operation and shunting operation, absorb the impact and reduce the kinetic energy generated when vehicles impact each other; The slave plate, coupler yoke pin and coupler yoke play the role of transmitting longitudinal force (traction force and impact force).



Draft Gear also called buffer is to reduce the impact force by compressing the elastic element, and absorb the impact energy by friction and damping during deformation of the elastic element. Draft Gear has the function of dissipating the impact and vibration between freight cars, so as to reduce the damage to the car body structure and load goods, and improve the stability of train operation.



MT-2 Draft Gear is friction spring buffer and has the characteristics of large capacity, low impedance and reliable performance referring to AAR M901E draft gear. It is applied in C63, C76, and C80 series heavy load freight cars. It is also applied in 70t class freight cars in China.



Main parameters:

Model Impedance ≤(kN) Capacity≥(kJ) Stoke(mm)
MT-2 Friction Type Draft Gear 2270 50 83



Detail images:

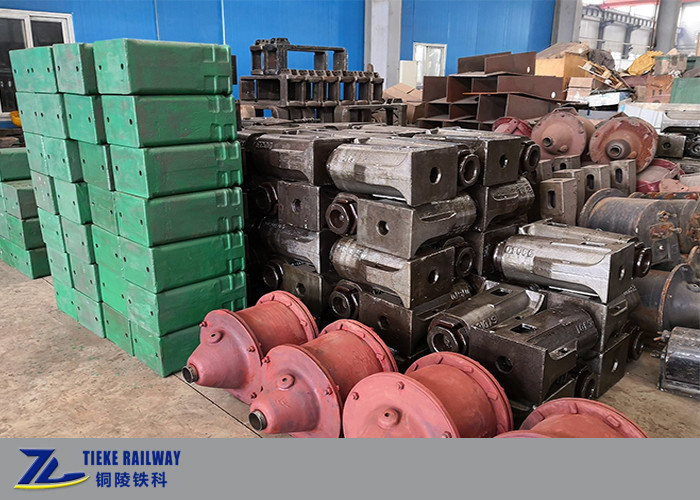

Railroad Coupler Buffer Locomotive Draft Gear MT 2 For Heavy Load Freight Cars 0

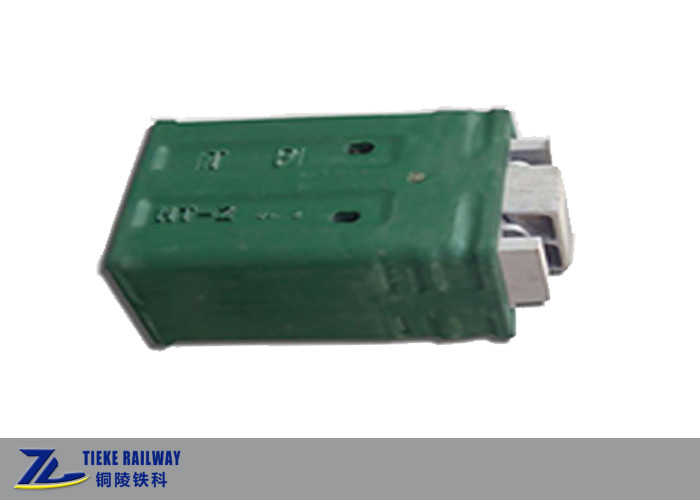

Railroad Coupler Buffer Locomotive Draft Gear MT 2 For Heavy Load Freight Cars 1



FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons and wagon parts directly.

Q2: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q3: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q4: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
