AAR 13B Railroad Train Car Coupler Grade E Casting Steel TB T456 Standard

AAR 13B Railroad Train Car Coupler Grade E Casting Steel TB T456 Standard

AAR Train Car Coupler

TB T456 Train Car Coupler

TB T456 Railroad Car Coupler

Place of Origin:

China

Brand Name:

Tieke

Contact Us
Request A Quote
Product Details
Name:
Train Car Coupler 13B Coupler AAR Grade E Casting Steel Railcar Coupler
Material:
Cast Steel Grade E
Interchangeability:
13, 13A Coupler
Min. Failure Load Of Coupler Body:
4005kN
Min. Failure Load Of Coupler Knuckle:
3430kN
Standard:
TB/T456 ‘Automatic Coupler Buffer Device For Coupled Vehicle’
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Wooden cases or pallet
Delivery Time
1-2 months
Payment Terms
T/T, L/C
Supply Ability
5000 sets per year
Product Description

Train Car Coupler 13B Coupler AAR Grade E Casting Steel Railcar Coupler



Breif introduction:

13B Coupler is developed on the base of 13A coupler and has been widely used in Chinese railway heavy load freight cars since 2007.

13B couplers have two acting type: upper acting and lower acting type. 13B couplers can be coupled with AAR hook couplers such as E coupler, E/F coupler, F coupler. Besides, 13B couplers could be also coupled with domestic couplers like No.16 couplers and No.17 couplers.

13B coupler is made of E grade low alloy cast steel. The coupler body’s min failure load is 4005KN, and the coupler knuckle’s 3430KN. The coupling clearance is 11.5mm, which can significantly improve the longitudinal dynamic performance of railway train. The coupler is complied with TB / T 456 standard.



Main technical parameters:

Name Train Car Coupler 13B Coupler AAR Grade E Casting Steel Railcar Coupler
Material Cast steel grade E
Application Chinese standard heavy load freight wagons
Min. failure Load of coupler body 4005kN
Min. failure load of Coupler knuckle 3430kN
Coupler clearance 11.5mm
Design, manufacture and inspection standard TB/T456 ‘Automatic coupler buffer device for coupled vehicle’
Interchangeability 13, 13A
Coupling feature connectable with 16 coupler, 17 coupler, AAR E type coupler, AAR E/F type coupler and AAR F type coupler


Why choose us?

  1. Tieke has over 10 years railway wagons manufacturing experiences and we are able to provide full services for the wagons parts;
  2. Our coupler foundry is a dedicated foundry of Chinese Railways, the quality is assured;
  3. Tieke could provide complete set or parts of couplers like buffers, yokes, knuckles and etc, we could provide one stop service for your wagon parts.
  4. Besides Chinese couplers, we could also provide AAR coupler, GOST coupler, UIC couplers.



Detail images:

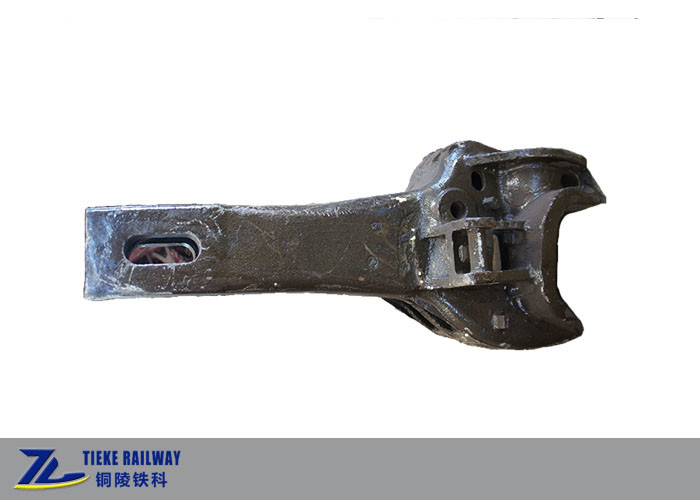

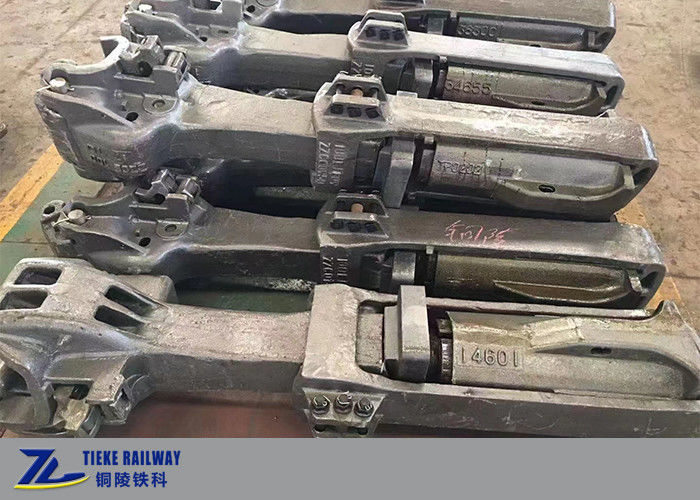

AAR 13B Railroad Train Car Coupler Grade E Casting Steel TB T456 Standard 0



AAR 13B Railroad Train Car Coupler Grade E Casting Steel TB T456 Standard 1



AAR 13B Railroad Train Car Coupler Grade E Casting Steel TB T456 Standard 2



AAR 13B Railroad Train Car Coupler Grade E Casting Steel TB T456 Standard 3



AAR 13B Railroad Train Car Coupler Grade E Casting Steel TB T456 Standard 4



FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons and wagon parts directly.

Q2: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q3: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q4: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
