Aluminum Oxide Powder Railway Tanker Wagons 70T Load GF70

Aluminum Oxide Powder Railway Tanker Wagons 70T Load GF70

Oxide Powder Railway Tanker Wagons

70T Railway Tanker Wagons

70T Powder Wagon

Place of Origin:

China

Brand Name:

Tieke

Model Number:

GF70

Contact Us
Request A Quote
Product Details
Name:
GF70 Aluminum Oxide Powder Tank Wagon Railway Powder Tank Car 70T Load
Railway Gauge:
1435 Mm
Pay Load:
70 Tons
Tare Weight:
23.6 Tons
Bogie Type:
K6 Bogie
Coupler:
No.17 Coupler
Design Speed:
120 Km/h
Application:
Transport Aluminum Oxide Powder By Railway
Payment & Shipping Terms
Minimum Order Quantity
One set
Price
Negotiable
Packaging Details
Nude packing with support base and with anti-collision protection
Delivery Time
3-6 months
Payment Terms
T/T, L/C
Supply Ability
1000 sets per year
Product Description

GF70 Aluminum Oxide Powder Tank Wagon Railway Powder Tank Car 70T Load

GF70 Aluminum oxide powder tank wagon is a special function railway wagons to transport aluminum oxide powder with a unit weight of 0.95-1.0t/m3. The alumina powder is loaded and unloaded from the top. The working mode is that the powdery materials are fluidized by compressed air and then transported to the remote material tower through the unloading pipelines.

The wagon adopts no center beam structure, and is mainly composed of tank assembly, traction pillow assembly, outer ladder assembly, air inlet pipeline assembly, air hand brake device, coupler buffer device, bogie and other components. The tank body is made of Q450NQR1 high-strength weathering steel. There are 4 feeding devices (one of which is also used as manhole) and two unloading devices, and an inner ladder is set at the manhole. The fluidized device adopts improved fluidized bed. The brake system adopts 120 type control valve and NSW hand brake machine. Draft gears are No.17 coupler and MT-2 buffer. The bogies are K6.



Main technical parameters:

Load 70t
Tare weight 23.6t
Capacity 76 m³
Commercial running speed 120 km/h
Rail gauge 1435mm
Min radius 145m
Unloading speed 1.5-2 t/min
Convey distance

150m(horizontal);

30m(vertical)

Residual amount ≤0.2%
Bogie type K6 bogie
Coupler buffer No.17 and MT-2 buffer
Coupler center height 880mm
Wheel diameter 840mm
Limit gauge GB146.1 ‘Gauge for standard gauge railway-rolling stock gauge’



Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.


Application:

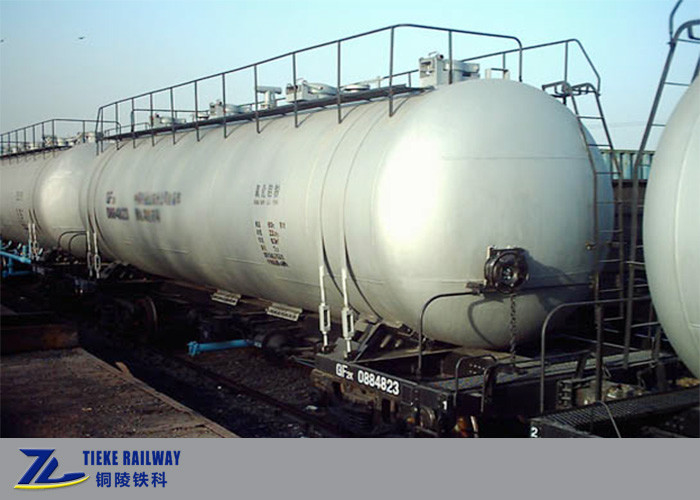

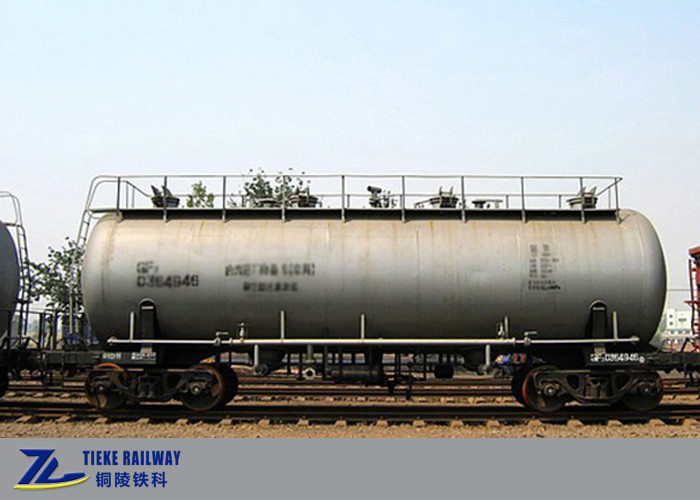

GF70 Alumina powder wagons running on Chinese railway.

Aluminum Oxide Powder Railway Tanker Wagons 70T Load GF70 0


 FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.

Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
