GHA70 Railway Tanker Wagons For Ethanol Methanol Alcohol Breathing Safety Valve

GHA70 Railway Tanker Wagons For Ethanol Methanol Alcohol Breathing Safety Valve

Ethanol Railway Tanker Wagons

Methanol Railway Tanker Wagons

Methanol Railway Wagons

Place of Origin:

China

Brand Name:

Tieke

Model Number:

GHA70

Contact Us
Request A Quote
Product Details
Name:
GHA70 Alcohol Tanker Wagon Railway Tank Car For Ethanol, Methanol
Railway Gauge:
1435 Mm
Pay Load:
70 Tons
Tare Weight:
23 Tons
Bogie Type:
K6 Bogie
Coupler:
No.17 Coupler
Design Speed:
120 Km/h
Application:
Transport Alcohol, Ethanol And Methanol By Railway
Payment & Shipping Terms
Minimum Order Quantity
One set
Price
Negotiable
Packaging Details
Nude packing with support base and with anti-collision protection
Delivery Time
3-6 months
Payment Terms
T/T, L/C
Supply Ability
1000 sets per year
Product Description

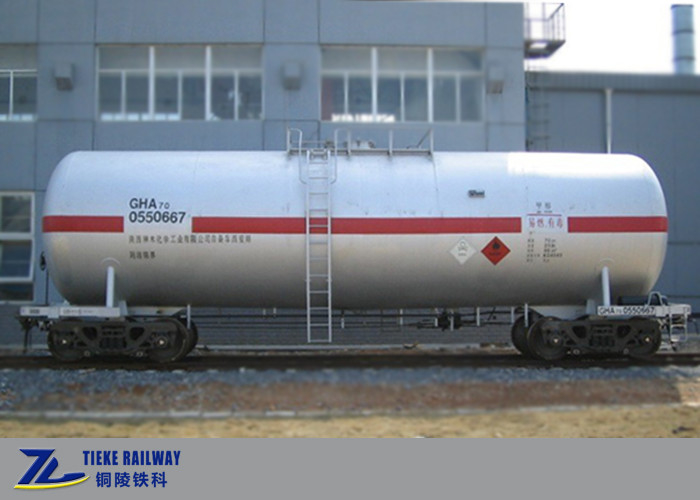

GHA70 Alcohol Tanker Wagon Railway Tank Car for Ethanol, Methanol

GHA70 Alcohol Tanker Wagon is mainly used to transport Ethanol, Methanol or similar physical and chemical properties by railway.

The whole wagon adopts all steel welded structure without center beam, which is mainly composed of traction pillow assembly, tank assembly, bogie, braking device and coupler buffer device. The tank body adopts the structure of straight cone circular section inclined bottom. The main materials of the tank body are Q295A and Q345A low alloy high-strength structural steel. The wagon is equipped with A41X breathing safety valve, spring assisted manhole, bogie K6, 120 type brake valve, KZW-A empty and load automatic adjustment device and derailment automatic braking device, NSW hand brake, No.17 coupler with grade E steel and MT-2 buffer.



Main technical parameters:

Load 70t
Tare weight 23t
Axle load 23t
Commercial running speed 120km/h
Tank total capacity 90.1 m³
Tank efficient capacity 88.3 m³
Rail gauge 1435mm
Min radius 145m
Vehicle length 13446mm
Vehicle max. width 3320mm
Vehicle max. height(empty) 4493mm
Applicable environmental temperature -40~50℃





Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.


Application:

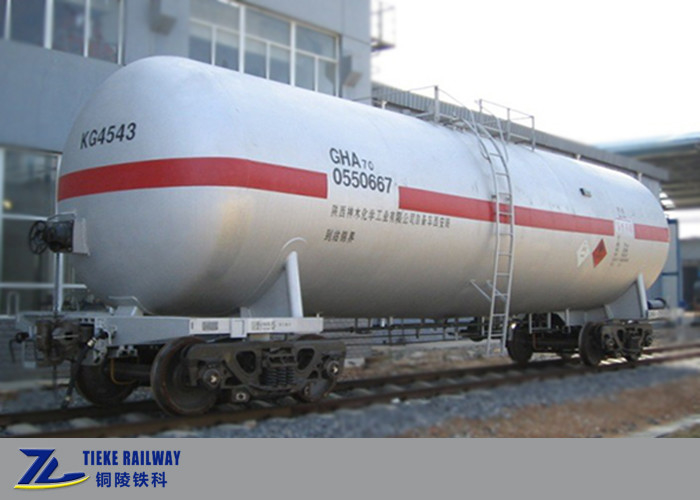

GHA alcohol tank wagon on Chinese railway

GHA70 Railway Tanker Wagons For Ethanol Methanol Alcohol Breathing Safety Valve 0


 FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.

Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
