U70 Railway Bulk Cement Tanker Wagon 70t Load Traction Pillow Included

U70 Railway Bulk Cement Tanker Wagon 70t Load Traction Pillow Included

70t Load Railway Tanker Wagons

Traction Pillow Railway Tanker Wagons

70t Cement Wagon

Place of Origin:

China

Brand Name:

Tieke

Model Number:

U70

Contact Us
Request A Quote
Product Details
Name:
U70 Railway Bulk Cement Tanker Wagon Bulk Cement Lorry 70t Load
Railway Gauge:
1435 Mm
Pay Load:
69 Tons
Axle Load:
24.8 Tons
Bogie Type:
K6 Bogie
Coupler:
No.17 Coupler
Design Speed:
120 Km/h
Application:
Transport Powder Goods Like Cement, Fly Ash, Lime Powder By Railway
Payment & Shipping Terms
Minimum Order Quantity
One set
Price
Negotiable
Packaging Details
Nude packing with support base and with anti-collision protection
Delivery Time
3-6 months
Payment Terms
T/T, L/C
Supply Ability
1000 sets per year
Product Description

U70 Railway Bulk Cement Tanker Wagon Bulk Cement Lorry 70t Load

U70 Railway bulk cement tanker wagon, also known as powder material tanker wagon and fly ash tanker wagon, is applicable to the bulk transportation of powder dry materials with particle diameter no more than 0.1mm, such as fly ash, cement, lime powder, ore powder, particle alkali and so on.

This bulk cement tanker wagon is mainly composed of wagon body, brake system, coupler buffer and bogies. The wagon body is all steel welded structure of horizontal tank without center beam, which is composed of traction pillow, tank body, fluidization device, air inlet and discharge pipeline, end ladder and walkway. The main section steel and plate steel are made of Q345NQR2 and Q450NQR1 high strength weather resistant steel. The top of the tank body is equipped with two loading ports (also used as manholes). There are air inlet pipe interfaces and unloading pipe interfaces on both sides of the vehicle. Blowing assistant pipe is fitted on the end of unloading pipes. It adopts K6 bogies, No.17 coupler and MT-2 buffer, 120 type brake device and NSW hand brake machine.



Main technical parameters:

Load 69t
Axle load 24.8t
Capacity 58.3 m³
Commercial running speed 120 km/h
Rail gauge 1435mm
Min radius 145m
Unloading speed 1.5-2 t/min
Convey distance

100m(horizontal);

30m(vertical)

Bogie type K6 bogie
Coupler buffer No.17 and MT-2 buffer
Coupler center height 880mm
Wheel diameter 840mm
Limit gauge GB146.1 ‘Gauge for standard gauge railway-rolling stock gauge’



Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.


Application:

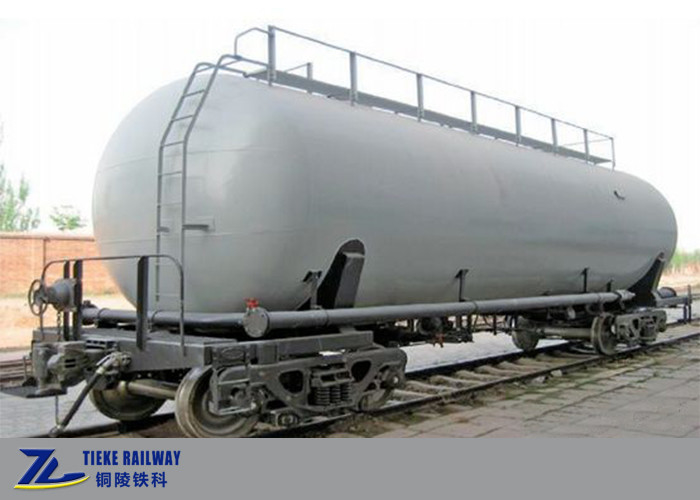

U70 Bulk cement tanker wagons running on Chinese railway.

U70 Railway Bulk Cement Tanker Wagon 70t Load Traction Pillow Included 0


 FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.

Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
