Place of Origin:
China
Brand Name:
Tieke
Model Number:
GS70

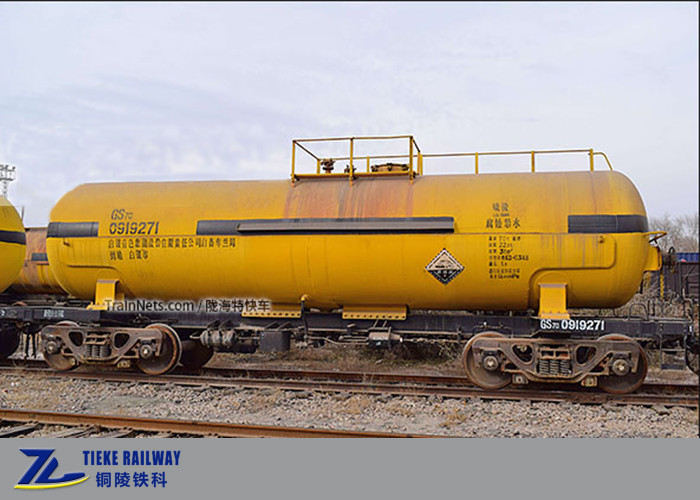

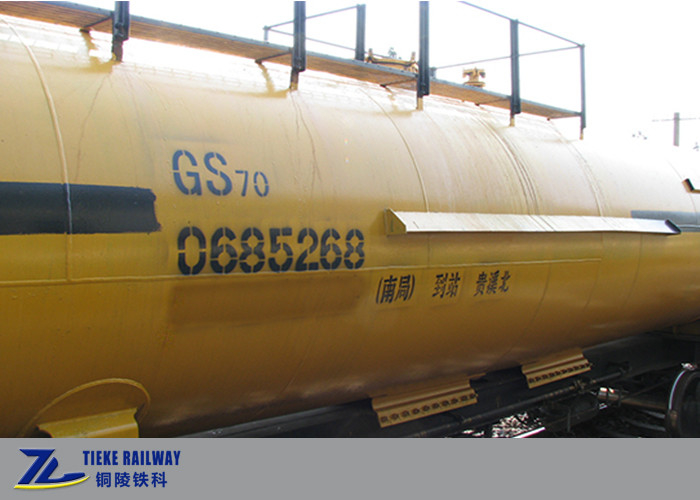

GS70 concentrated sulfuric acid tanker car is used on Chinese standard gauge railway. It is mainly used to transport concentrated sulfuric acid (also named oil of vitriol) with a concentration of more than 92.5%. The sulfuric acid is loaded and unloaded from the top of the car.

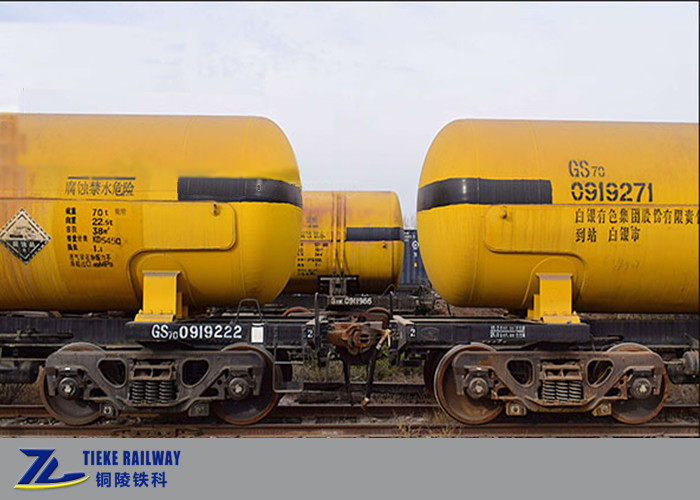

GS70 Acid tanker wagon adopts chassis structure with center and is mainly composed of tank body assembly, under frame accessories, heating device, the connection of tank body and under frame, coupler and buffer, brake device, K6 bogie, end ladder and the roof walking plate assembly.
Main features:
Main technical parameters:
Load | 70t |
Tare weight | 23t |
Axle load | 23t |
Efficient capacity | 38 m3 |
Working pressure of tank | 0.15 Mpa |
Commercial running speed | 120 km/h |
Min radius | 145m |
Application environmental temperature | -40~+50℃ |
Vehicle length | 12016mm |
Coupler type | No.17 Grade E steel |
Coupler center height | 880mm |
Bogie type | K6 bogie |
Wheel diameter | 840mm |
Rail gauge | 1435mm |
Limit gauge | GB146.1 ‘Gauge for standard gauge railway-rolling stock gauge’ |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Application:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
