Place of Origin:
China
Brand Name:
Tieke
Model Number:
G11JK

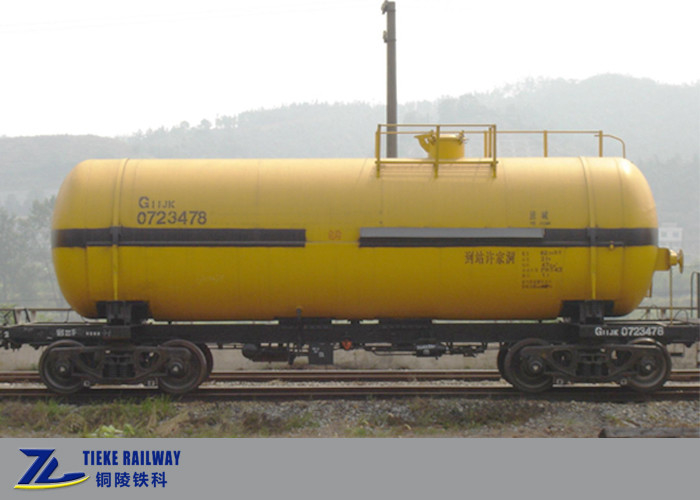

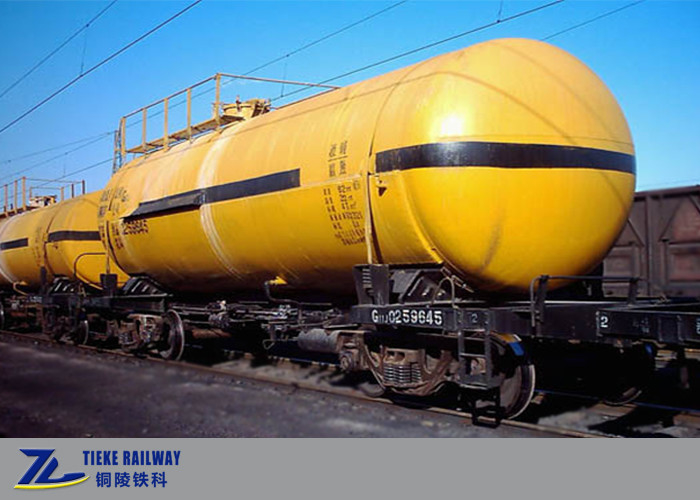

G11JK Liquid Caustic Soda Tanker Wagon is applied in Chinese standard gauge railway. It is used to ship liquid alkali (NaOH) with a concentration of more than 30%, and the liquid goods are loaded and loaded from the top of the wagon.
This tanker wagon adopts all steel welded structure with middle beam, which is mainly composed of underframe, tank body, heating sleeve device, outer ladder, connection between tank and underframe, air and hand brake device, coupler buffer device, bogie and other components. One position end of the car body is equipped with passing platform and hand brake device. The tank body is provided with slag discharge holes to facilitate cleaning. The heating sleeve, heating pipeline, slag discharge hole and other devices can be selected according to the requirements of users. It is equipped with K2 Bogie, Grade C steel 13 coupler.
Main technical parameters:
Load | 63t |
Tare weight | 20.9t |
Axle load | 20.98t |
Efficient capacity | 49 m3 |
Working pressure of tank | 0.15 Mpa |
Commercial running speed | 120 km/h |
Min radius | 145m |
Application environmental temperature | -40~+40℃ |
Tank length | 9680mm |
Vehicle length | 11988mm |
Coupler center height | 880mm |
Bogie center distance | 1750mm |
Wheel diameter | 840mm |
Rail gauge | 1435mm |
Limit gauge | GB146.1 ‘Gauge for standard gauge railway-rolling stock gauge’ |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Application:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
