Breif introduction:
K6 casting railway bogie is the main wagon bogies for 70 tons to 80 tons Chinese railway freight wagons. The max. running speed is 120km/h.
The application test and many dynamic tests show that K6 bogie can effectively reduce the wear between wheel and rail of heavy haul train, reduce the operation cost of heavy haul transportation, isolate the high-frequency vibration between wheel and rail, improve the vertical dynamic performance of vehicle and improve the running stability of vehicle.
Main technical features:
Cast steel three-piece truck bogie
Two suspension damping system: primary suspension adopts axle box elastic shear pad; secondary suspension adopts central pillow spring suspension system with variable friction damping device;
Bolster spring adopt two grades’ stiffness springs;
Adopt elastic lower cross support device to fasten the two side frames;
Center plates connecting under frame and bogies;
Lower center plate equipped with oil-bearing nylon wear disc;
Double acting double row tapered roller bearings;
Light new structure HEZB cast steel wheels or HESA rolling steel wheels;
Adopt pull rod type single side brake shoes braking, L-A or L-B combined brake beams assembly and high friction composition brake shoes;
Main technical parameters:
Name |
Railway Wagon 1000 mm /1067 mm / 1435mm /1520mm Gauge Railway Bogie |
Application |
Railway wagons pay load 40 tons to 80 t |
Axle load |
25 tons |
Tare weight |
4.8 tons |
Railway gauge |
1435 mm |
Max. running speed |
120 km/h |
Min radius |
145 m |
Fixed axle distance |
1830 mm |
Axle journal center distance |
1981 mm |
Side bearing center distance |
1520 mm |
Center plate height(empty) |
680 mm |
Wheel diameter |
840 mm |
Application |
Bogies for heavy load railway freight wagons with 25t axle load. |

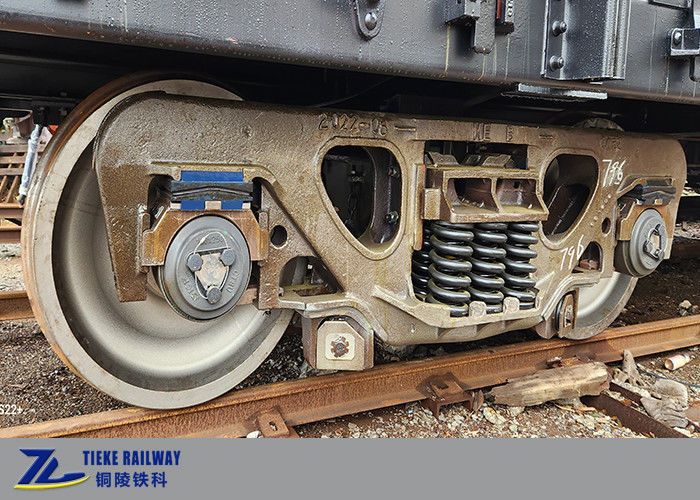

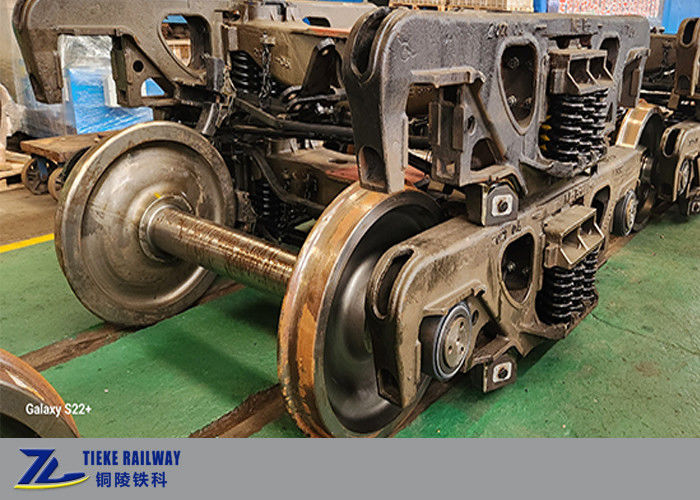

K6 bogie structure:
K6 casting bogie is mainly composed of side frames, bolster, wheelset, adapter and bearing, brake rigging, suspension springs, side bearings, bogie center plate and some wear plates.
Bogie Assemly:
Bogie axle bearing:
Bogie wheelset:
Bogie primary suspension springs:
Bogies package and transportation:
2 sets/steel pallet, 4 sets/20GP
