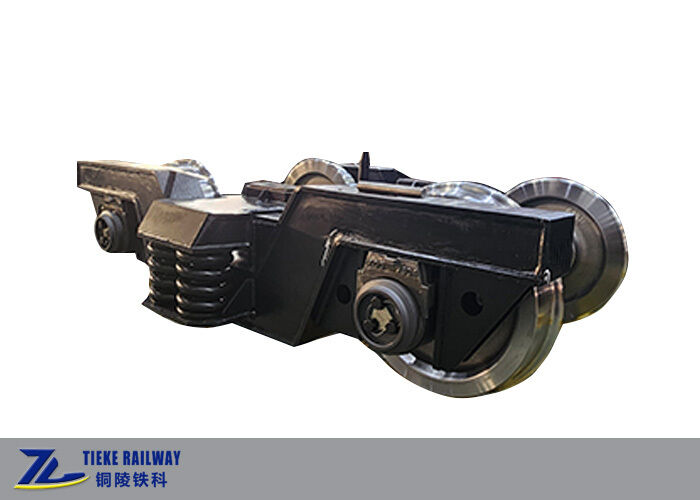

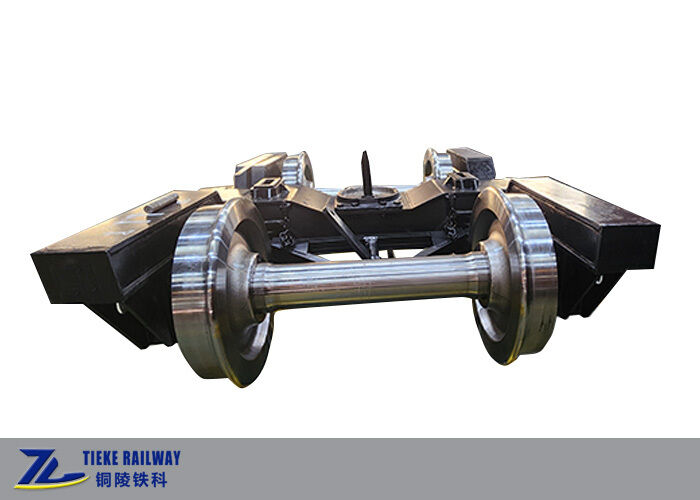

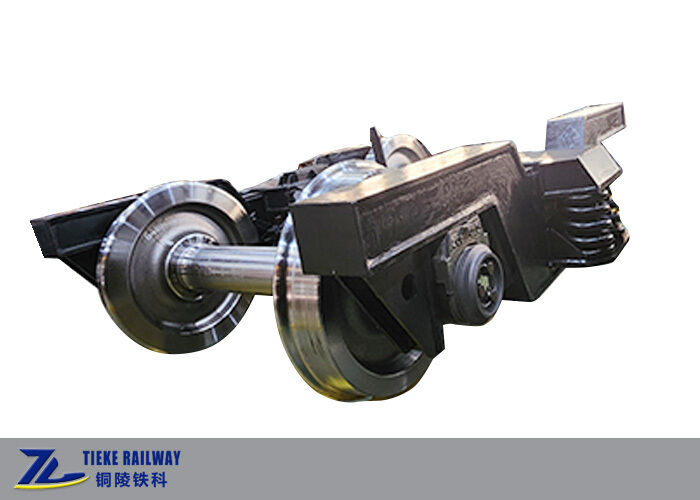

Welded Frame Bogie 21t Axle Load Truck for 1000mm Gauge Railway

Welded Frame Bogie 21t Axle Load Truck for 1000mm Gauge Railway

1. Breif introduction:

This welded frame bogie is developed for super low deck meter gauge railway wagons. The bogie’s axle load is up to 21t, and the design speed is 50km/h. This welded frame bogie is mainly composed of wheel set assembly, axle box assembly, damper device, bogie frame, brake device and weighing device.

Our welded bogie is designed with precision and built to last, integrating advanced welding technology and high-grade materials to ensure stable performance even in harsh operating environments. Here are the key advantages that set our products apart:

• Robust Welding Structure: Adopting integral H-type welded frame, our bogie features high structural rigidity and low unsprung mass. The advanced submerged arc welding process ensures uniform weld quality, strong load-bearing capacity and excellent anti-fatigue performance, effectively extending the service life of the bogie.
• Customizable Design: We offer tailored welded bogie solutions to fit different railway gauges (including 1000mm meter gauge, 1435mm standard gauge, etc.), axle loads (up to 21t and above) and design speeds. Whether for low-deck wagons, freight wagons or special-purpose railway vehicles, we can customize the structure, dimensions and components to meet your specific requirements.
• Superior Operational Performance: The welded bogie is equipped with high-efficiency damping devices and precision axle box assemblies, ensuring smooth operation and stable handling. It is specially designed to adapt to small-radius curves and complex track conditions, reducing wear and tear on wheels and rails, and lowering maintenance costs.
• Compliance with International Standards: All our welded bogies comply with international standards such as UIC510-2 (wheel profile), ISO and EN, ensuring compatibility with global railway systems. Each bogie undergoes strict quality inspection and performance testing before delivery, guaranteeing safe and reliable operation.

2. Main technical parameters:

3. Tieke bogies assembly workshop:

Bogies package and transportation:

2 sets/steel pallet, suitable for forklift loading and unloading.

FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
