Hydraulic crane rail platform is special purpose railway construction wago, which is designed for lifting and transport concrete sleepers, rails, machinery or other packing materials from stockyard to construction sites by railway. By adding movable end plates and doors around the platform, it could also transfer ballast. This hydraulic crane rail platform is proven to be economic and practical for railway construction contractor.
The crane platform is composed of one set on-board hydraulic crane with power station and one set railway flat wagon. The hydraulic crane and the flat wagon are totally independent.The crane is powered by seperate hydraulic power unit.
There are straight arm type crane and folded arm type crane for customer to choose from. The hydraulic crane's lifting capabilities could be 5 tons, 8 tons, 10 tons, or 12 tons. The crane's hydraulic power station is composed of diesel engine, battery, hydraulic oil tank, hydraulic pumps, etc. Customer could name the brand of the crane or accept our recommended brand. To improve the safety during railway work, we offer various safety limiters and remote control according to customer need.
The crane platform is typical railway flat wagon, we could provide different load flat wagon from 40t to 70t for customer to choose from. The flat wagon is towed by locomotive and the towing speed could be up to 120km/h.
Rail platform parameters:
| Name | Hydraulic crane rail platform |
| Pay load(uniform distribution) | 70T |
| Tare weight | 28T |
| Axle load | 25t |
| Rail gauge | 1435mm, 1000mm, 1520mm, 1067mm |
| Dimension | 16366mm×2970mm×1120mm |
| Active side plate height | Side plate:420mm ; end plate:270mm |
| Coupler center height | 880±10mm |
| Min radius | 145m |
| Structural speed | 120km/h |
| Brake method | Air brake and hand brake |
| Coupler type | No.13 Coupler(AAR) |
| Bogie type | K6 3-piece bogie |
| Wheel diameter | 840mm |
| Structural clearance limit | GB146.1 ‘Standard gauge railway rolling stock structure clearance limit’ |
5T Hydraulic crane parameters:
| Max. rated lift weight | 5,000 kg |
| Max. lifting torque | 10.5 t*m |
| Min. rated operating range | 2.5m |
| Max. operating range | 8m |
| Max. lifting height | 10.5m |
| Lifting angle | 0-70° |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Typical parameters of 5T crane:

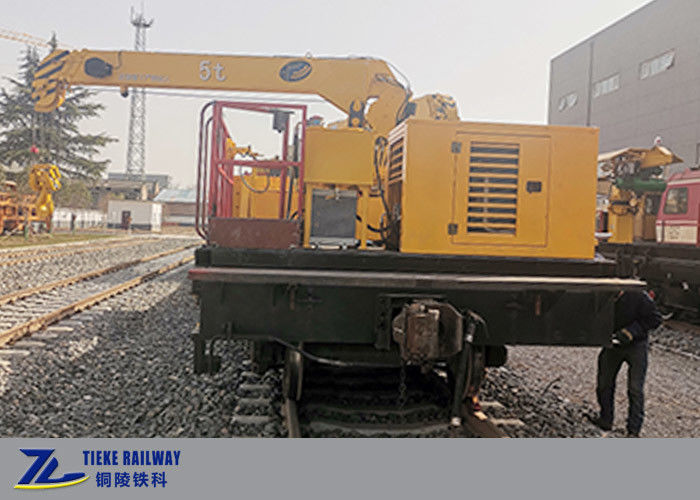

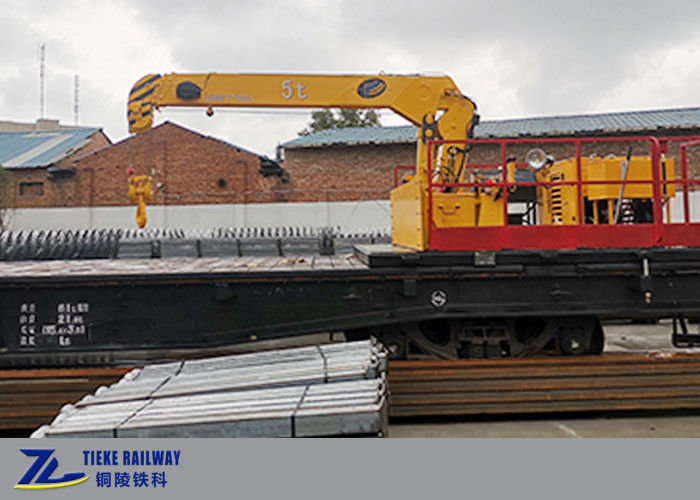

Application image:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
