Heavy Duty Casting Railway Wagon Bogie K6 OEM 27t Axle Load

Heavy Duty Casting Railway Wagon Bogie K6 OEM 27t Axle Load

Casting Railway Wagon Bogie

27t Axle Load Railway Wagon Bogie

27t Axle Load Railway Bogie

Place of Origin:

China

Brand Name:

Tieke

Model Number:

K6

Contact Us
Request A Quote
Product Details
Name:
Railway Wagon Bogie Heavy Duty Casting Bogie 27 Tons Axle Load
Application:
Bogies For Heavy Load Railway Freight Wagons With 27 Axle Load
Rail Gauge:
1435 Mm
Axle Load:
27 Tons
Bogie Tare Weight:
5.2 Tons
Max. Running Speed:
100 Km/h
Min Radius:
145 M
Wheel Diameter:
915 Mm
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
2 sets/steel pallet
Delivery Time
2-4 months
Payment Terms
L/C, T/T
Supply Ability
5000 sets per year
Product Description

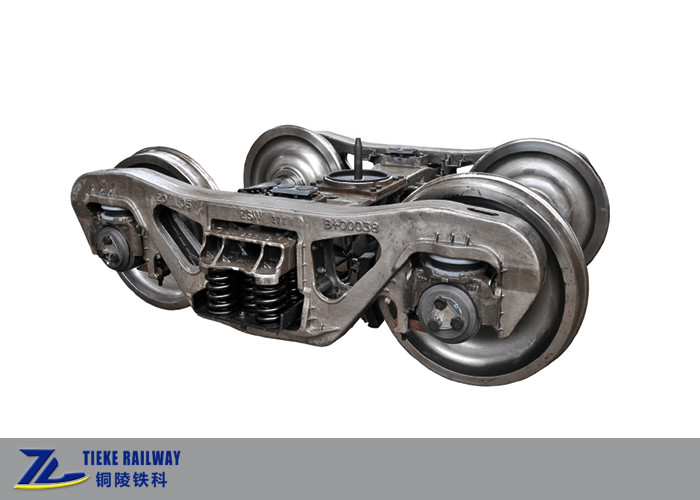

Railway Wagon Bogie Heavy Duty Casting Bogie 27 Tons Axle Load



Breif introduction:
DZ2 heavy duty casting bogie is applied for heavy load railway freight wagons with 27t axle load and 100km/h commercial operating speed.

The structure of DZ2 bogie is similar to that of the existing K4 and K5 swing bogies. Spring support plates are installed between the two side frames. The spring support plates connect the left and right bearing springs together and sit on the support seat of the central bearing platform of the side frame through the shaking seat. At the same time, the left and right side frames are supported on the front and rear bearing saddles through the axle box rubber spring at the top of its guide frame. Using the low torsional stiffness of the rubber spring, the left and right side frames become suspenders that can swing synchronously in the transverse direction. This structure increases the transverse flexibility of the vehicle, reduces the under spring weight, improves the dynamic performance of the vehicle and effectively reduces the wear between wheel and rail.


DZ2 bogie is mainly composed of bolster, side frame, wheel set, rolling bearing device, axle box suspension device, central suspension and damping device, bogie braking device, lower swing device and elastic side bearing.


In addition to provide this model bogie, we are able to design or OEM bogies according to customer requirements.

Main technical features:

  1. Combines the side frame swing technology of swing bogie and the primary axle box elastic position technology of low power bogie;
  2. The lateral and vertical action force of the wheel and rail is low and the wear is small;
  3. Low power, quasi radial, no welding, small wear;


Main technical parameters:

Name Railway Wagon Bogie Heavy Duty Casting Bogie 27 Tons Axle Load
Application Bogies for heavy load railway freight wagons with 27 axle load
Axle load 27 tons
Tare weight 5.2 tons
Railway gauge 1435 mm
Max. running speed 100 km/h
Min radius 145 m
Fixed axle distance 1860 mm
Axle journal center distance 2006.6 mm
Side bearing center distance 1520 mm
Center plate diameter 375 mm
Center plate height(empty) 680 mm
Wheel diameter 915 mm
Brake ratio middle pull rod brake:4.0; DAB-1 integrate brake:11.6
Application Bogies for heavy load railway freight wagons of 27t axle load.

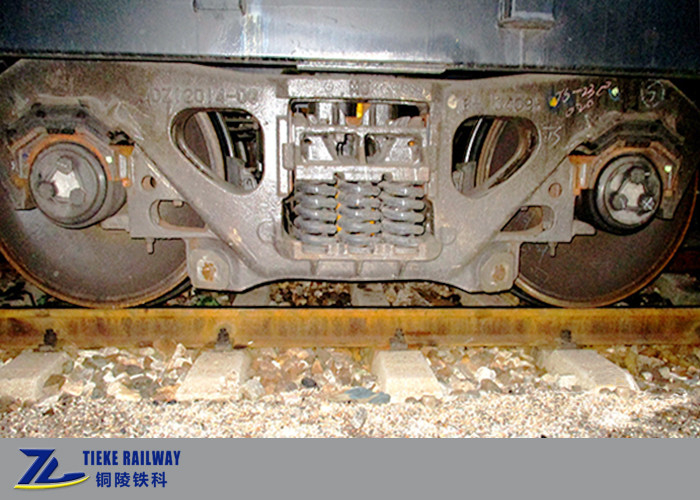

DZ2 bogie on railway wagons:
Heavy Duty Casting Railway Wagon Bogie K6 OEM 27t Axle Load 0

Tieke bogies assembly workshop:
Heavy Duty Casting Railway Wagon Bogie K6 OEM 27t Axle Load 1

Bogies package and transportation:
2 sets/steel pallet, suitable for forklift loading and unloading.
Heavy Duty Casting Railway Wagon Bogie K6 OEM 27t Axle Load 2

Bogies loading by forklift into containers:
Heavy Duty Casting Railway Wagon Bogie K6 OEM 27t Axle Load 3

FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
