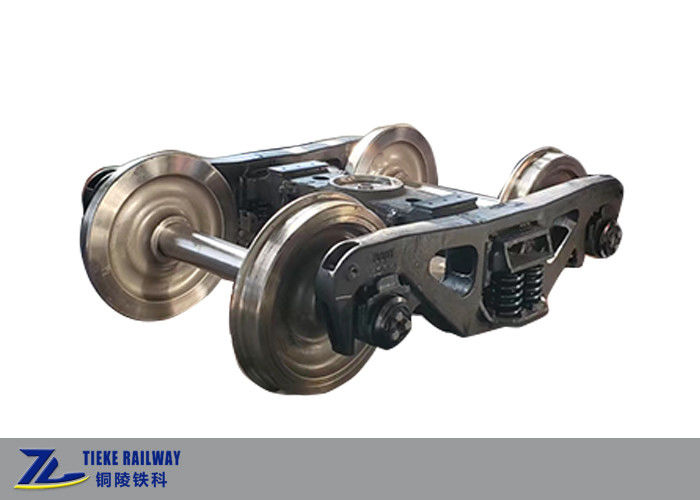

Freight Railway Wagon Bogie Three Piece Casting 25 Ton Axle Load TB Standard

Freight Railway Wagon Bogie Three Piece Casting 25 Ton Axle Load TB Standard

25 Ton Railway Wagon Bogie

TB Railway Wagon Bogie

TB Freight Bogie

Place of Origin:

China

Brand Name:

Tieke

Model Number:

K6

Contact Us
Request A Quote
Product Details
Name:
Freight Rail Car Bogie K6 Three-Piece Casting Bogie 25 Ton Axle Load TB Standard
Application:
TB Standard Freight Rail Cars
Rail Gauge:
1435 Mm
Axle Load:
25 Tons
Bogie Tare Weight:
4.8 Tons
Max. Running Speed:
120 Km/h
Min Radius:
145 M
Wheel Diameter:
840 Mm
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
2 sets/steel pallet
Delivery Time
2-4 months
Payment Terms
L/C, T/T
Supply Ability
5000 sets per year
Product Description

Freight Rail Car Bogie K6 Three-Piece Casting Bogie 25 Ton Axle Load TB Standard



Breif introduction:
K6 bogie is the main bogie for 25T axle load, speed increased and heavy load of China Railway freight cars. It is widely applied for  25T axle load general open top wagon, gondola, box car, flat car, tank car, etc., as well as various 25t axle load special purpose freight cars.

The actual railway running application and many dynamic tests show that K6 bogie can effectively reduce the weariness between wheel and rail of heavy haul train, reduce the operation cost of heavy haul transportation, isolate the high-frequency vibration between wheel and rail, improve the vertical dynamic performance of vehicle and improve the running stability of vehicle. It is the main bogie of 70t and above freight cars in China.

In addition to this standard model bogie, we are able to design or OEM bogies according to customer requirements.

Main technical features:

  1. Cast steel three-piece truck bogie
  2. Two suspension damping system: primary suspension adopts axle box elastic shear pad; secondary suspension adopts central pillow spring suspension system with variable friction damping device;
  3. Bolster spring adopt two grades’ stiffness springs;
  4. Adopt elastic lower cross support device to fasten the two side frames;
  5. Center plates connecting under frame and bogies;
  6. Lower center plate equipped with oil-bearing nylon wear disc;
  7. Double acting double row tapered roller bearings;
  8. Light new structure HEZB cast steel wheels or HESA rolling steel wheels;
  9. Adopt pull rod type single side brake shoes braking, L-A or L-B combined brake beams assembly and high friction composition brake shoes;


Main technical parameters:

Name Freight Rail Car Bogie K6 Three-Piece Casting Bogie 25 Ton Axle Load TB Standard
Application TB standard freight rail cars
Axle load 25 tons
Tare weight 4.8 tons
Railway gauge 1435 mm
Max. running speed 120 km/h
Min radius 145 m
Fixed axle distance 1830 mm
Axle journal center distance 1981 mm
Side bearing center distance 1520 mm
Center plate height(empty) 680 mm
Wheel diameter 840 mm
Application Bogies for heavy load railway freight wagons with 25t axle load.

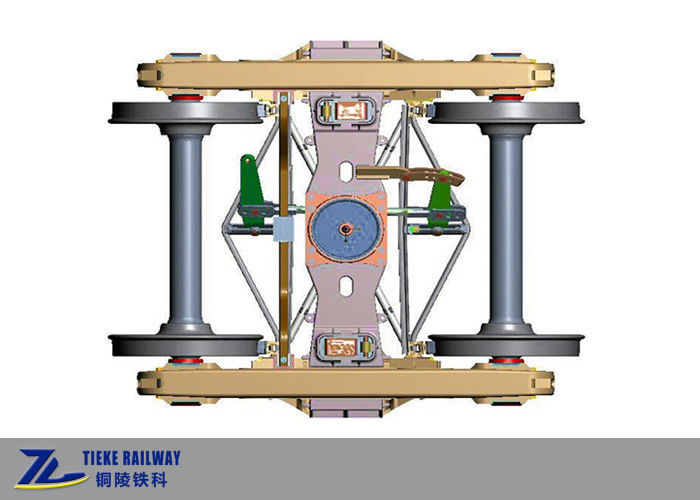

Explosion diagram of K6 bogie:
Freight Railway Wagon Bogie Three Piece Casting 25 Ton Axle Load TB Standard 0

Tieke bogies assembly workshop:
Freight Railway Wagon Bogie Three Piece Casting 25 Ton Axle Load TB Standard 1

Bogies package and transportation:
2 sets/steel pallet, suitable for forklift loading and unloading.
Freight Railway Wagon Bogie Three Piece Casting 25 Ton Axle Load TB Standard 2

Bogies loading by forklift into containers:
Freight Railway Wagon Bogie Three Piece Casting 25 Ton Axle Load TB Standard 3

FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
