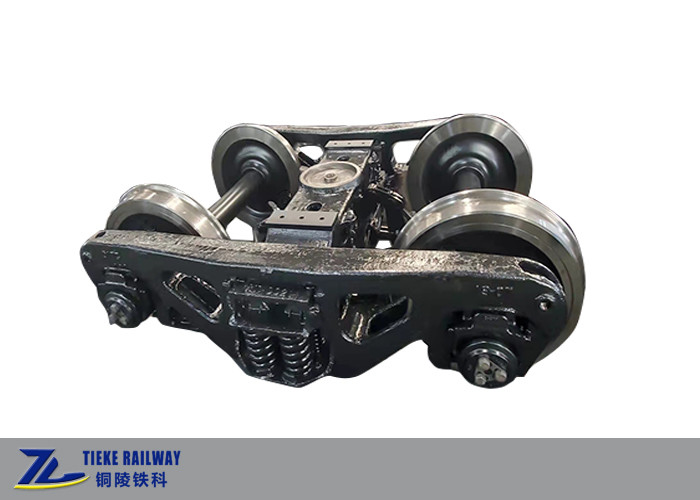

TB Standard Three Piece Bogie K2 21 ton Axle Load rail Bogies

TB Standard Three Piece Bogie K2 21 ton Axle Load rail Bogies

TB Three Piece Bogie

21 ton Axle Three Piece Bogie

21 ton Axle Rail Bogies

Place of Origin:

China

Brand Name:

Tieke

Model Number:

K2

Contact Us
Request A Quote
Product Details
Name:
TB Standard Bogie K2 Three-Piece Casting Bogie Freight Wagon Bogie
Application:
Bogies For Heavy Load Railway Freight Wagons With 21t Axle Load.
Rail Gauge:
1435 Mm
Axle Load:
21 Tons
Bogie Tare Weight:
4.2 Tons
Max. Running Speed:
120 Km/h
Min Radius:
100 M
Wheel Diameter:
840 Mm
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
2 sets/steel pallet
Delivery Time
2-4 months
Payment Terms
L/C, T/T
Supply Ability
5000 sets per year
Product Description

TB Standard Bogie K2 Three-Piece Casting Bogie Freight Wagon Bogie



Breif introduction:

K2 bogie is main bogie for 21t axle load freight car with the characteristic of stable operation, safety and reliability and convenient maintenance. It is applied for railway freight cars with 21 ton axle load on 1435mm standard railway gauge.



Main technical features:

  1. Cast steel three piece bogie;
  2. Side frames and bolster are casting grade B steel;
  3. Central suspension system adopt two stage stiffness springs: damping springs higher than bolster springs;
  4. In the middle of two side frames, the elastic lower cross support device is installed to realize better curve traffic ability;
  5. TBU double row tapered roller bearings;
  6. HDS rolling forged wheel or HDZC casting wheel;
  7. Lower center plate equipped with oil-bearing nylon wear disc;
  8. Combined brake beam and forged middle pull rod are applied for the foundation brake device.



In addition to provide this model bogie, we are able to design or OEM bogies according to customer requirements.



Main technical parameters:

Name TB Standard Bogie K2 Three-Piece Casting Bogie Freight Wagon Bogie
Application Bogies for heavy load railway freight wagons with 21t axle load
Axle load 21 tons
Tare weight 4.2 tons
Railway gauge 1435 mm
Max. running speed 120 km/h
Min radius 100 m
Fixed axle distance 1750 mm
Lower center plate diameter 355 mm
Side bearing center distance 1520 mm
Wheel diameter 840 mm
Basic brake ratio 4
Application Bogies for heavy load railway freight wagons with 21t axle load.

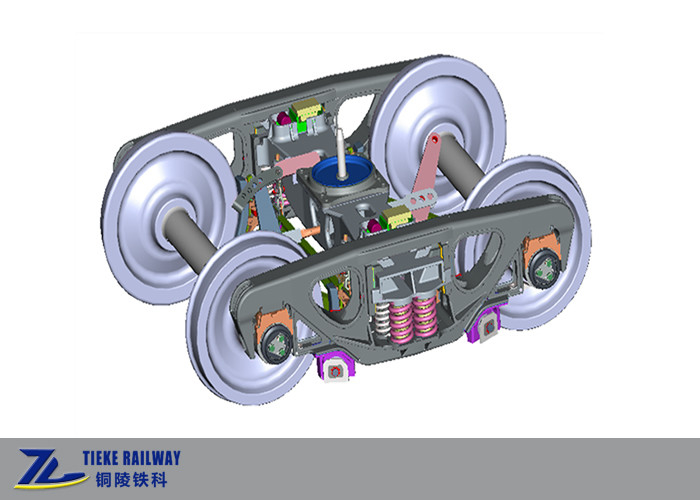

Detail configuration image:

TB Standard Three Piece Bogie K2 21 ton Axle Load rail Bogies 0



Tieke bogies assembly workshop:

TB Standard Three Piece Bogie K2 21 ton Axle Load rail Bogies 1



Bogies package and transportation:

2 sets/steel pallet, suitable for forklift loading and unloading.

TB Standard Three Piece Bogie K2 21 ton Axle Load rail Bogies 2



Bogies loading by forklift into containers:

TB Standard Three Piece Bogie K2 21 ton Axle Load rail Bogies 3



FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
