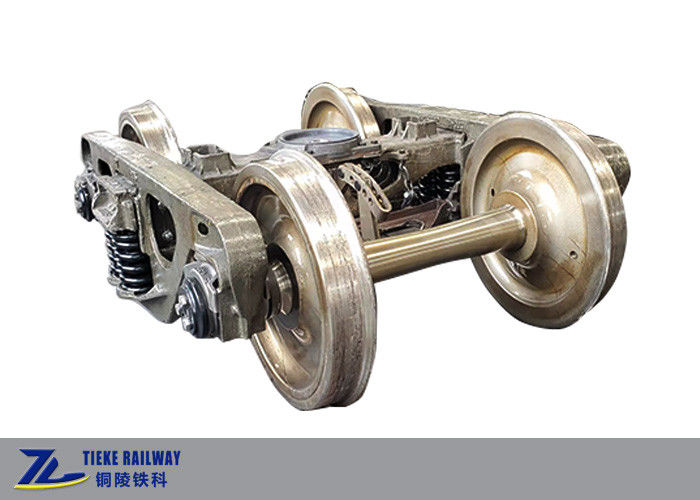

14 Ton Axle Load Railway Wagon Bogie For Meter Gauge RailCar

Railway Wagon Bogie Truck Bogie Meter Gauge 14 Tons Axle Load

Breif introduction:

This 1000 mm meter gauge truck bogie is applied for Southeast Asia countries, whose railway is meter gauge. We develop this type of bogies for customer to build new railway flat wagons. This type bogies design and manufacture strictly comply with customer’s existing bogies and could realize maintenance and exchange of the whole bogie or some of the main components.

This meter gauge bogie adopts three-piece ride control structure by using control type wedge damping device, and is mainly comprised of wheel set assembly, bolster assembly, side frame assembly, roller bearing assembling, adapter, brake rigging, load spring, wedge and damping device, bogie side bearing assembly and etc. The bogie’s performance meets the Evaluation requirements of GB/T5599 and its Intensity design comply with the regulations of TB/T1335.

Main features:

1. Classic 3-piece bogie, bolster, side frame, bearing adapter, bearing and other main materials meet AAR standards;
2. Small curve radius, which can adapt to the lines in mountainous areas of Southeast Asia countries;
3. The damping device adopts damping spring and control wedge, which improves the alignment ability of the bogie while damping;

Main technical parameters:

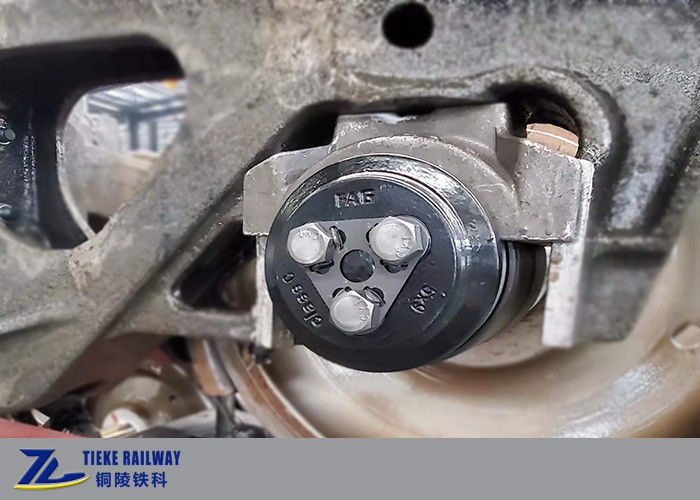

Detail configuration image:

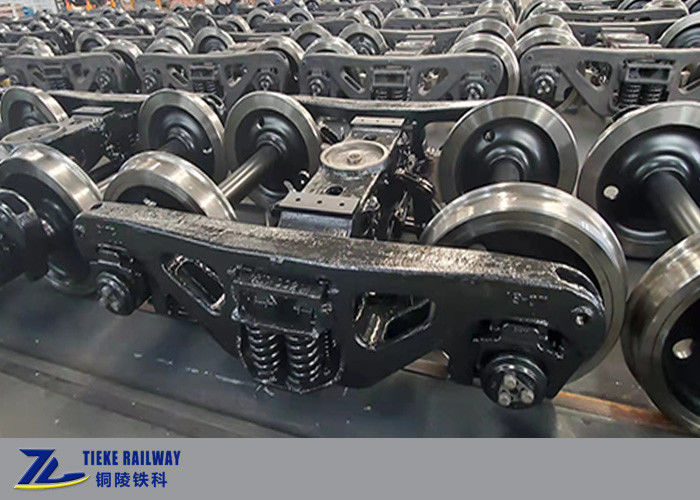

Tieke bogies assembly workshop:

Bogies package and transportation:

2 sets/steel pallet, suitable for forklift loading and unloading.

Bogies loading by forklift into containers:

FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
