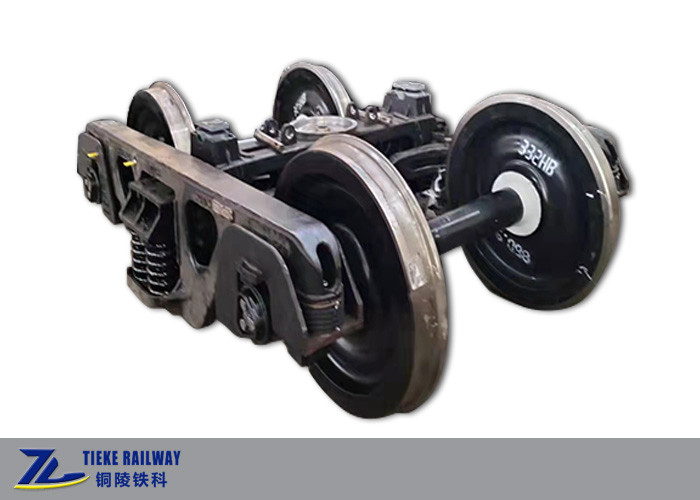

Ride Control Truck train bogies 13 Ton Axle Load Engine Bogie

Ride Control Truck train bogies 13 Ton Axle Load Engine Bogie

ride control train bogies

13 ton axle train bogies

13 ton axle train engine bogie

Place of Origin:

China

Brand Name:

Tieke

Contact Us
Request A Quote
Product Details
Name:
Freight Wagon Bogie Ride Control Truck Bogie 13 Tons Axle Load
Application:
Railway Freight Wagons
Rail Gauge:
1067 Mm
Axle Load:
13 Tons
Bogie Tare Weight:
3 Tons
Max. Running Speed:
100 Km/h
Min Radius:
80 M
Wheel Diameter:
860mm
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
2 sets/steel pallet
Delivery Time
2-4 months
Payment Terms
L/C, T/T
Supply Ability
5000 sets per year
Product Description

Freight Wagon Bogie Ride Control Truck Bogie 13 Tons Axle Load



Breif introduction:

This 1067mm gauge ride control wagon bogie is applied for Taiwan and Southeast Asia area with 1067mm railway gauge. We develop this type of bogies to replace the bogies of existing railway freight wagons and could realize maintenance and exchange of the whole bogie or some of the main components.

This 1067mm 13T axle load bogie adopts three-big-pieces casting steel structure. It is mainly composed of bolster and side frames, 860mm wheel sets, AAR Class C 5’’X9’’ rolling bearing, adapter, center bearing springs, brake beam assembly, controlled wedge damping device, lower bearing body, center plates and etc.



Main features:

  1. Classic 3-piece bogie, bolster, side frame, bearing adapter, bearing and other main materials meet AAR standards;
  2. Small curve radius, which can adapt to the lines in mountainous areas of Taiwan;
  3. The damping device adopts damping spring and control wedge, which improves the alignment ability of the bogie while damping;



Main technical parameters:

Name Freight Wagon Bogie Ride Control Truck Bogie 13 Tons Axle Load
Application Railway freight wagons

Bogie structure type

Control ride type bogies
Rail gauge 1067mm
Axle load 13 t
Tare weight 3 t
Max. running speed 100 km/h
Min radius 80m
Center plate height(empty) 705mm
Wheel diameter 860mm
Fixed axle space 1650mm
Brake ratio 6:1

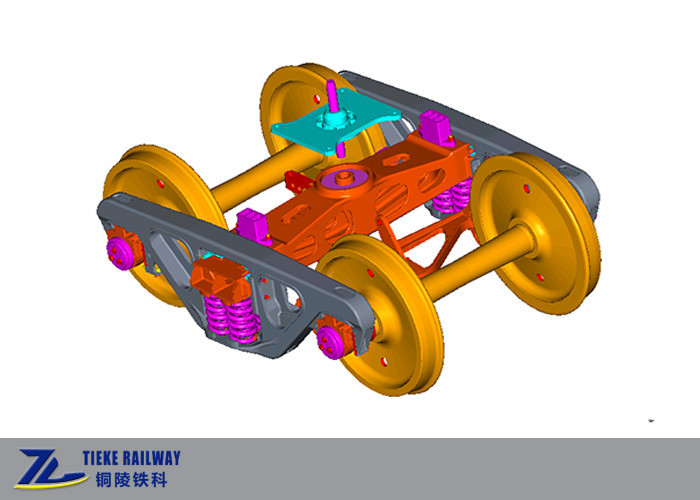

Detail configuration image:

Ride Control Truck train bogies 13 Ton Axle Load Engine Bogie 0



Tieke bogies assembly workshop:

Ride Control Truck train bogies 13 Ton Axle Load Engine Bogie 1



Bogies package and transportation:

2 sets/steel pallet, suitable for forklift loading and unloading.

Ride Control Truck train bogies 13 Ton Axle Load Engine Bogie 2



Bogies loading by forklift into containers:

Ride Control Truck train bogies 13 Ton Axle Load Engine Bogie 3



FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
