Place of Origin:
China
Brand Name:
Tieke
Model Number:
KPT20
Brief introduction:

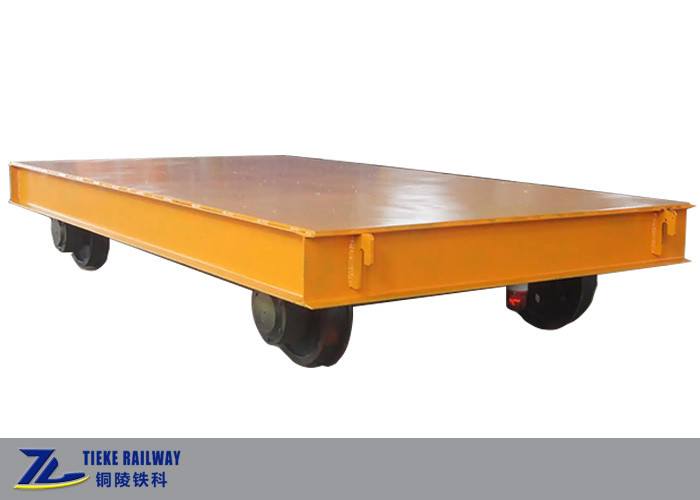

KPT-20 Electric flat vehicle is used to transport in-plant goods by rails for industrial or mineral factories. The railway vehicle is driven by AC motor, which is powered by three phases AC power supply, which is safety and reliable. The flat vehicle could be operated by remote control, which is easy and simple. In overall, the vehicle is with reliable performance, smooth running, compact structure and nice appearance. This electric flat car is an ideal choice for enterprises to transport materials by track.
KPT-20 Electric flat vehicle is used to transport in-plant goods by rails for industrial or mineral factories. The railway vehicle is driven by AC motor, which is powered by three phases AC power supply, which is safety and reliable. The flat vehicle could be operated by remote control, which is easy and simple. In overall, the vehicle is with reliable performance, smooth running, compact structure and nice appearance. This electric flat car is an ideal choice for enterprises to transport materials by track.
KPT-20 Electric flat vehicle is mainly composed of 6 parts: vehicle body,drive device,active wheelsets,drive buffer,wire reeling machine,electric control system, and is equipped by speaker alarm accessorial function. The vehicle is powered by wire reeling device. The electricity from the wire reeling device goes through electric control system, driving device, driving buffer, driving wheelset and other assist device, realizing flat wagon’s running control and auxiliary function control. The operator only need to control the remote control of the vehicle and could realize the running and function control of the vehicle.
Main technical parameters:
Name | Railway Track Electric Wagon Electric Flat Car Cable Powered 20 Tons Load Remote Control |
Application | Handle in-plant materials or equipment by rail track |
Load | 20t |
Tare weight | 16t |
Rail gauge | 1435mm(or customized gauge) |
Rail type | 50kg/m(or customized rails) |
Flat vehicle’s dimensions | 12000mm×2000mm×650mm |
Running speed | ≤10km/h(loaded); ≤20km/h(empty) |
Power supply | 380V50Hz AC power supply (three-phase five wire) with elastic cable drum on the vehicle |
Cable length | 100m |
Driving motor | YZR180L,11Kw, 700r/min |
Brake method | Electromagnetic braking |
Operate method | Operation panel and remote control |
Package and delivery:

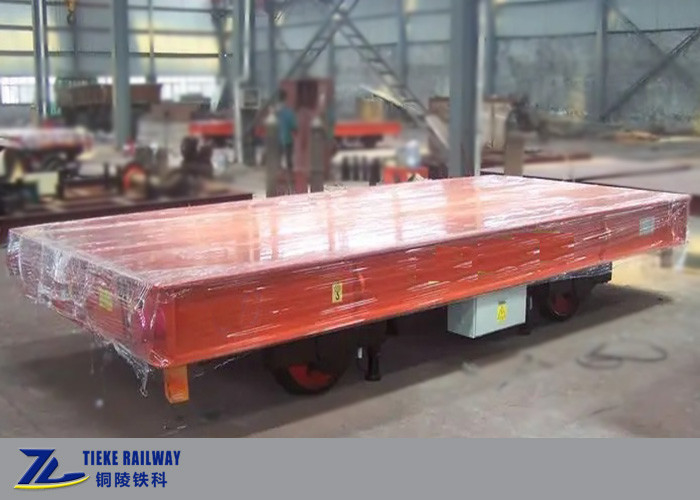

Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.

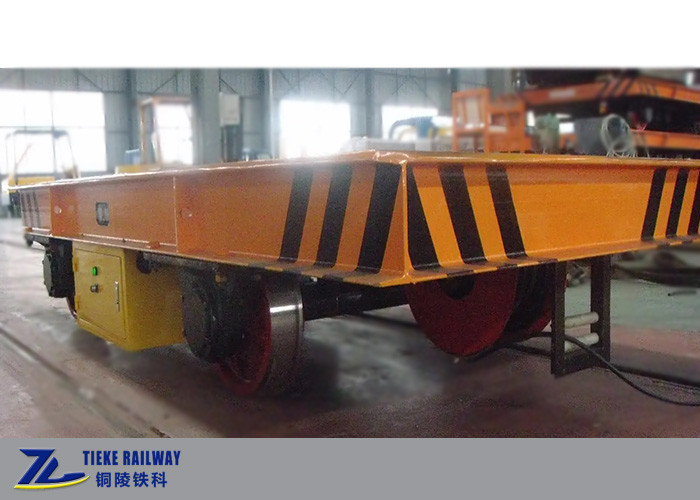

Application photo:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
