Brief introduction:
100t hot metal ladle transfer rail wagon is specially designed to transport 100t molten iron ladle by railway. It is low speed molten metal transport wagon. It has the features of simple structure, low volume, low cost, small radius, easy operation and has been widely applied in steelmaking industry.
This ladle wagon is mainly composed of chassis, coupler buffer, iron tank, bogies and etc. This wagon body is all welded steel structure, consisting of support, bending beam, pillow beam, traction beam and other parts. The main section steel and steel plate are made of Q235-A steel. The wagon is equipped with No.13 type B top acting coupler, MT-3 buffer, and reinforced 80-1 bogie. The bogies includes side frame, bolster, wheels and axles, axle box and spring assembly.
Main technical parameters:
Name | 100 Tons Hot Metal Ladle Transfer Rail Wagon Molten Steel Transporter |
Application | Transfer 100 tons hot metal ladle for steel making factory |
Load | 100t |
Tare weight | 25.0t |
Axle load | 45t |
Min radius | 75m |
Commercial running speed | 20km/h |
Wagon length | 8336mm |
Wagon’s max. width | 3600mm |
Wagon’s max. height | 4200mm |
Coupler center’s height | 880mm |
The clearance between the supporting shaft and the ladle seat | 10-15mm |
The lowest part of the curved beam when full loaded | 90mm |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Detail images:

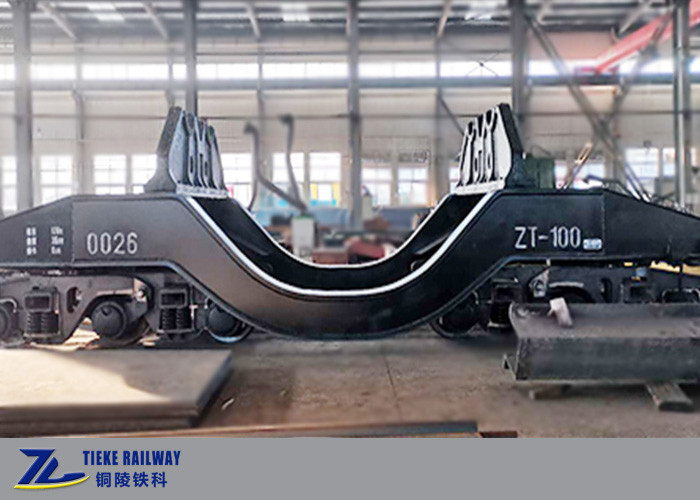

Drawing of 100 tons hot metal ladle transfer rail wagon:

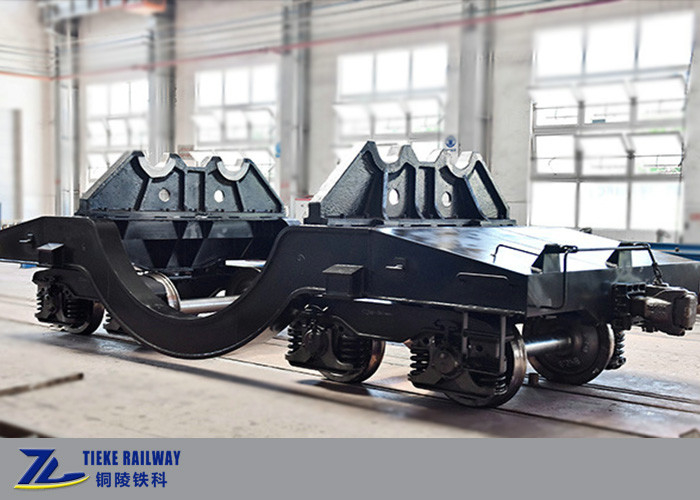

Welding wagon chassis:
