38t Load Concrete Mixer Railway Freight Wagon Rail Car 80km/H

38t Load Concrete Mixer Railway Freight Wagon Rail Car 80km/H

38t Railway Freight Wagon

80km/H Railway Freight Wagon

38t Concrete Mixer Car

Place of Origin:

China

Brand Name:

Tieke

Model Number:

PD38

Contact Us
Request A Quote
Product Details
Name:
Special Railway Freight Wagon Cement / Concrete Mixer Delivery Rail Car
Application:
Transport The Mixed Concrete From The Concrete Mixing Station Along The Paved Railway To The Pouring Construction Sites
Railway Gauge:
1435 Mm
Pay Load:
38 Tons
Tare Weight:
18 Tons
Bogie Type:
Welded Structure Bogie
Coupler:
No.2 Coupler
Design Speed:
80 Km/h
Payment & Shipping Terms
Minimum Order Quantity
One set
Price
Negotiable
Packaging Details
Nude packing with support base and with anti-collision protection
Delivery Time
3-6 months
Payment Terms
T/T, L/C
Supply Ability
1000 sets per year
Product Description

 Special Railway Freight Wagon Cement / Concrete Mixer Delivery Rail Car



Brief introduction:

PD38 Cement / concrete mixer delivery railcar is concrete mixing and transport vehicle customized by Tieke for its domestic subway construction units. This vehicle can be used for concrete pouring works along the railway: track bed concrete pouring of ballastless track, subway tunnel construction, railway gantries and electric pole foundation pit pouring. During work, it is pulled by a railway locomotive, which can transport the mixed concrete from the concrete mixing station along the paved railway to the pouring construction sites. The vehicle is mainly composed of railway flat car, concrete mixing drum, power drive system, etc. It has the advantages of simple structure, large transportation volume, stable transportation and fast speed. The mixer truck can also be coupled with other engineering vehicles, which can improve the working efficiency of the locomotive.



We could also design and manufacture various railway maintain  cars  to customers different requirements!



Main technical parameters:

Name Special Railway Freight Wagon Cement / Concrete Mixer Delivery Rail Car
Application Transport the mixed concrete from the concrete mixing station along the paved railway to the pouring construction sites
Load of flat car 38T
Tare weight 18T
Concrete mix barrel 6-7 Cubic meters(customized acceptable)
Rail gauge 1435mm
Flat car dimension 13000mm×2750mm(Length, width)
Steel floor height 1150mm
Coupler center height 880±10mm
Min radius 100m
Structural speed 80km/h
Brake method Air brake and hand brake
Coupler type No.2 Coupler
Bogie type Welding bogie
Wheel diameter 840mm



Package and delivery:

Nude pack with support base and with anti-collision protection.

Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.

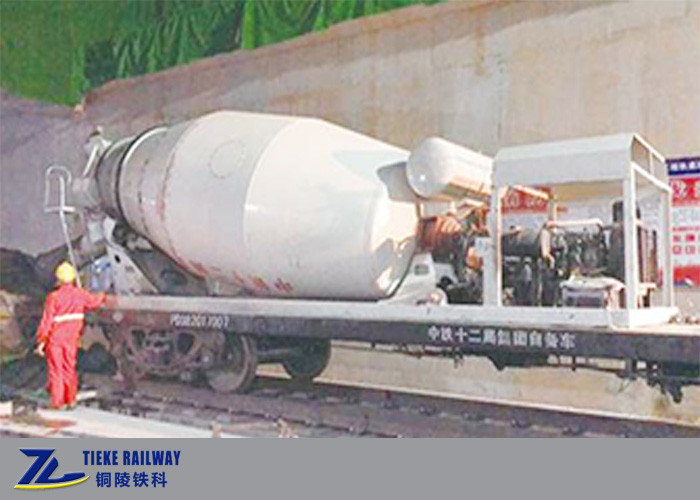

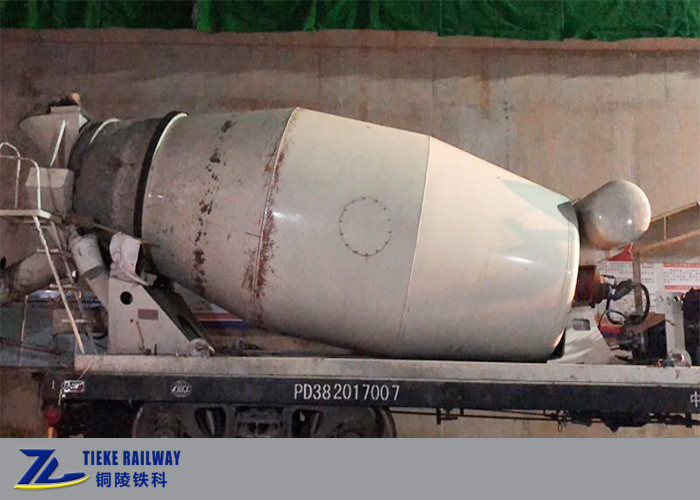

Railway concrete mixing barrel with power unit:

38t Load Concrete Mixer Railway Freight Wagon Rail Car 80km/H 0



FAQ:

Q1: Are you a trading company or a factory?

A: We are directly a factory and we manufacture and export railway wagons directly.



Q2: Do you have design ability to provide customized railway vehicles?

A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.



Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?

A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.



Q4: Why should I choose you, compared with your competitors?

A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.



Q5: What should I provide to get a quotation from you?

A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
