Brief introduction:
ZT140 140t ladle rail transport trailer car is specially designed to transport 140t molten iron ladle by railway inside steel making company. It is low speed molten metal transport trailer and is tractioned by locomotive. It has the features of simple structure, low volume, low cost, small radius, easy operation and has been widely applied in steelmaking industry.
The 140t molten iron tanker wagon is composed of chassis, base, bogie, coupler buffer, lookout shed and etc. The wagon bodies are all steel welded structure, composed of sleeper beam, end traction side beam, cross beam, reinforcing beam, bending beam, support, etc. All the main bearing beams are made of Q355B low alloy high strength structure steel. The coupler is 13B bottom active type in grade E steel, and the buffer is MT-2. The bogies are three axle casting bogie with casting center plate. The bogies spring suspension consists 12 sets outer coil spring and inner coil spring and all the springs are high strength spring steel 60Si2CrVA. The bogie wheels adopt 650mm diameter rolling wheels. The wagon adopts air brake system (Chinese 120 valve brake machine) and equipped with manual brake.
Main features :
Main technical parameters:
Name | Railway Wagon Ladle Transfer Trailer Iron Ladle Rail Transport Car 140 Tons |
Application | Transport hot molten iron ladle for steel plant |
The max. load of molten metal | 140tons |
Tare weight(without tanker) | ≤35.6t |
Axle load | 31t |
The max. total weight(wagon, tanker, and loaded molten metal) | ≤186t |
Max. dimensions(Length*width*height) | 9800mm*3260*2410(without the ladle) |
Coupler center height(empty) | 880mm |
The distance from the lowest part of tanker wagon to rails | ≥15mm |
Rail gauge | 1435mm |
Max. running speed when loaded | 20km/h, 10km(turnout) |
Max. running speed when empty | 30km/h,15km/h(turnout) |
Min radius | 100m |
Inner width of chassis base | ≥3110mm |
The gap between tanker base and chassis base | ≥15mm |
The gap of tanker and cover plate of chassis | ≥15mm |
The inner distance of base groove | ≥1480mm |
Coupler | 13# bottom active coupler |
Bogie | Welded three axle bogie |
Wheel diameter | 650mm |
Limit gauge | Comply with GB/T 146.1-83 |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.

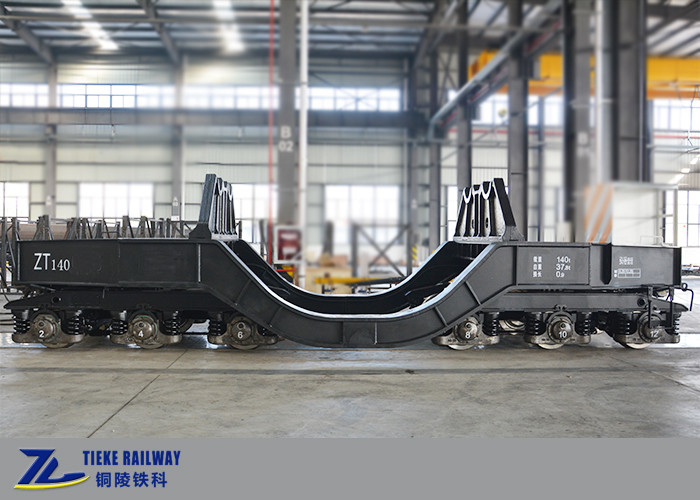

Detailed image:

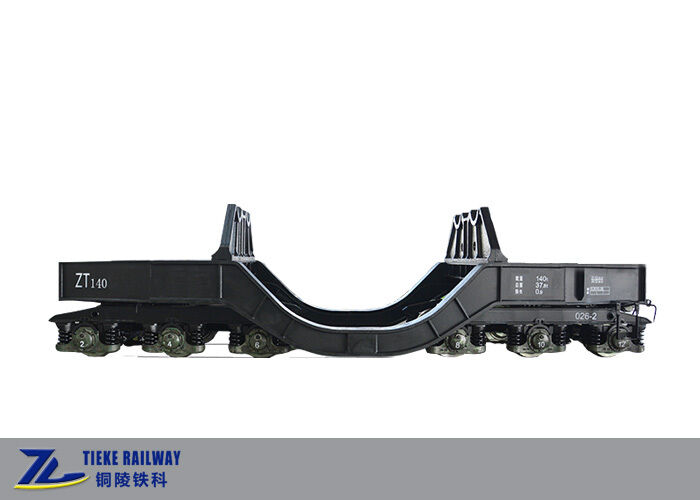

Tieke ZT140 140t ladle rail transport trailer car main dimensions:

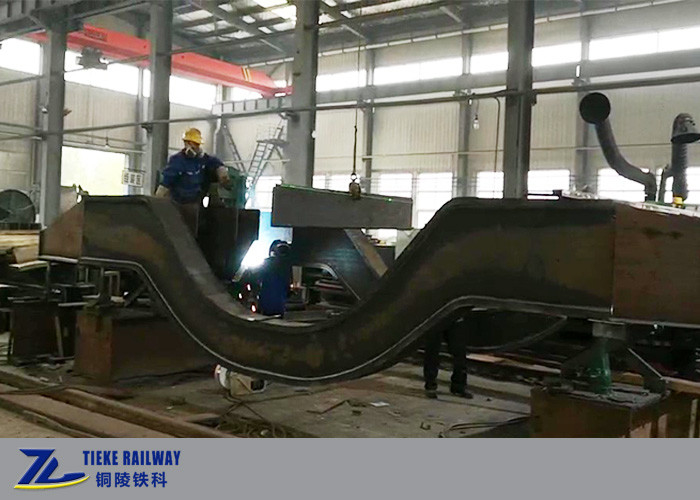

Manufacture picture:

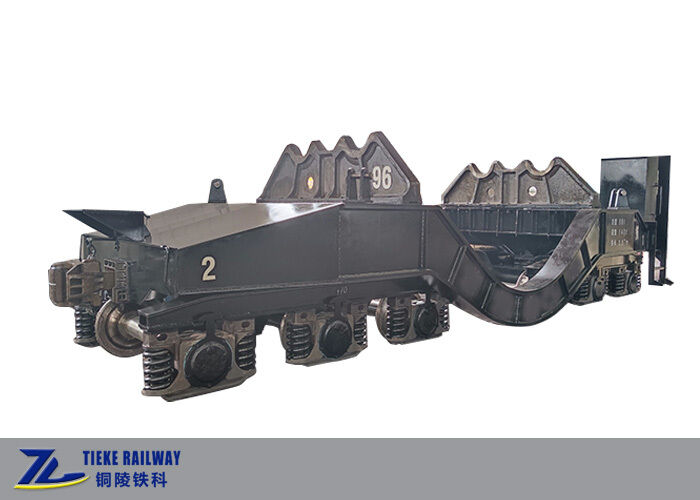

Heavy duty 3 axle bogie:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
Send your inquiry directly to us
