120 Ton Hot Metal Ladle Transfer Car Low speed Low Cost For Steelmaking

120 Ton Hot Metal Ladle Transfer Car Low speed Low Cost For Steelmaking

120 Ton Hot Metal Ladle Transfer Car

Steelmaking Hot Metal Ladle Transfer Car

120 Ton Ladle Transfer Car

Place of Origin:

China

Brand Name:

Tieke

Model Number:

ZT120

Contact Us
Request A Quote
Product Details
Name:
Railway Material Handle Equipment Ladle Transfer Car For 120 Tons Hot Iron Ladle
Application:
Transfer Hot Molten Iron By Railway For Steel Factory
Railway Gauge:
1435 Mm
Pay Load:
125 Tons
Tare Weight:
25 Tons
Bogie Type:

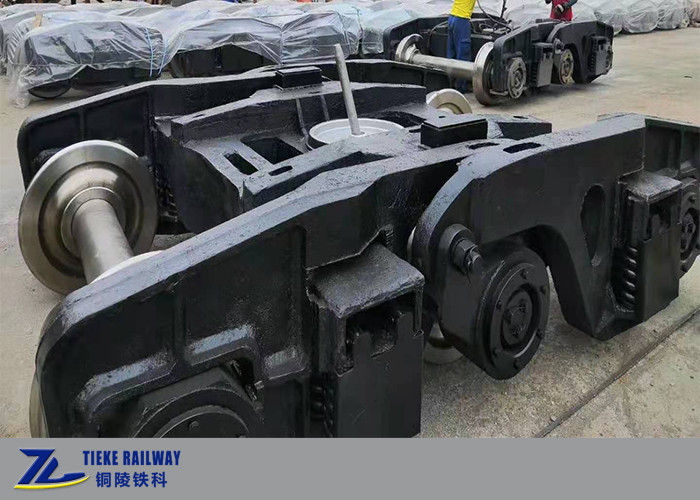

Welded 3 Axle Bogie
Coupler:
No.13 Upper Active Coupler
Design Speed:
20 Km/h Or As Customer Required
Payment & Shipping Terms
Minimum Order Quantity
One set
Price
Negotiable
Packaging Details
Nude packing with support base and with anti-collision protection
Delivery Time
3-6 months
Payment Terms
T/T, L/C
Supply Ability
1000 sets per year
Product Description

Railway Material Handle Equipment Ladle Transfer Car for 120 Tons Hot Iron Ladle

Breif introduction:

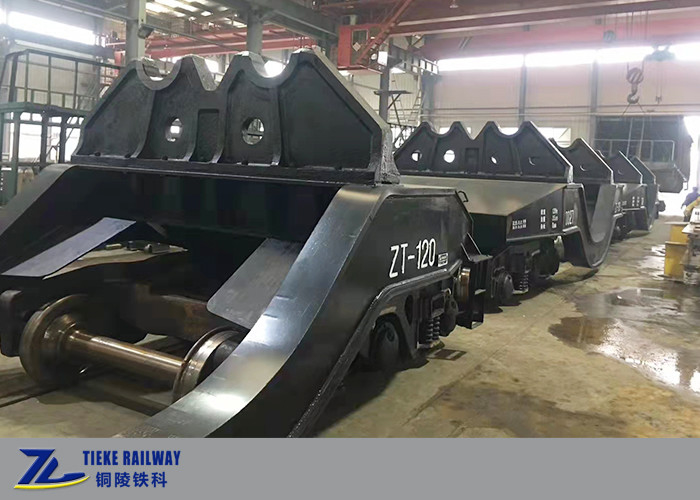

ZT series 120t Railway ladle transfer car is specially designed to transport hot molten iron(pig iron) ladle from blast furnace to steel making facilities like converter or electric furnace by railway inside the factory. It is slow speed molten metal transport railway wagon. It has the features of simple structure, low volume, low cost, small radius, easy operation and easy maintenance and widely used in steelmaking industry.

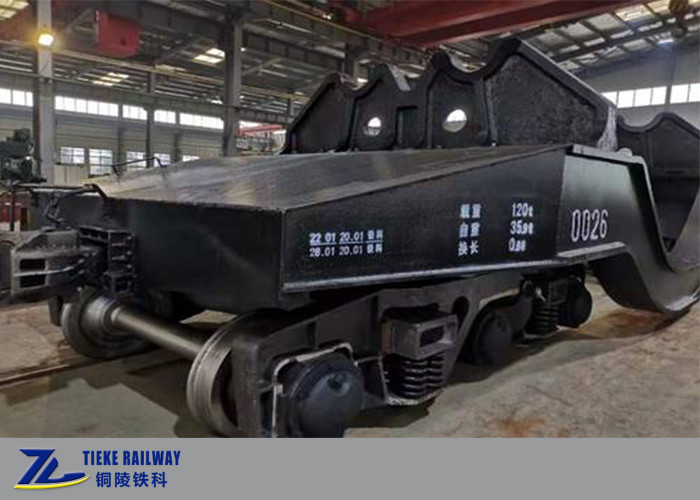

The ladle transfer rail car is composed of under frame, base, bogie, coupler buffer and etc.


Main features:

  • Special designed for steel making industry handling hot ladle
  • Durable and reliable structure
  • Low speed
  • Small radius
  • Easy operation and maintenance
  • Safety



Main technical parameters:

Name Railway Material Handle Equipment Ladle Transfer Car for 120 Tons Hot Iron Ladle
Application Transfer hot molten iron by railway for steel factory
The max. load of molten metal 125tons
Tare weight(without tanker) ≥25t
The max. total weight(wagon, tanker, and loaded molten metal) ≥190t
Max. dimensions(Length*width*height) 8350mm*4000*5000(with the tanker)
Coupler center height 880mm
The distance from the lowest part of tanker wagon to rails ≥15mm
Rail gauge 1435mm
Max. running speed when loaded As per customer requirement
Min radius ≤90m
Inner width of chassis base ≥3110mm
The gap between tanker base and chassis base ≥15mm
The gap of tanker and cover plate of chassis ≥15mm
The inner distance of base groove ≥1480mm
Coupler 13# upper active coupler
Bogie Welded bogie
Wheel diameter 840mm



Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
 120 Ton Hot Metal Ladle Transfer Car Low speed Low Cost For Steelmaking 0


Application photo:

Tieke ZT120 Metal Iron Tanker Wagon are in service on Chinese Steelmaking factory.

120 Ton Hot Metal Ladle Transfer Car Low speed Low Cost For Steelmaking 1


 FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.

Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
