NSW Railway Hand Brake Machine Vertical Wheel 400mm Cast Steel with Locking

NSW Type Railway Hand Brake Machine for Freight Wagons

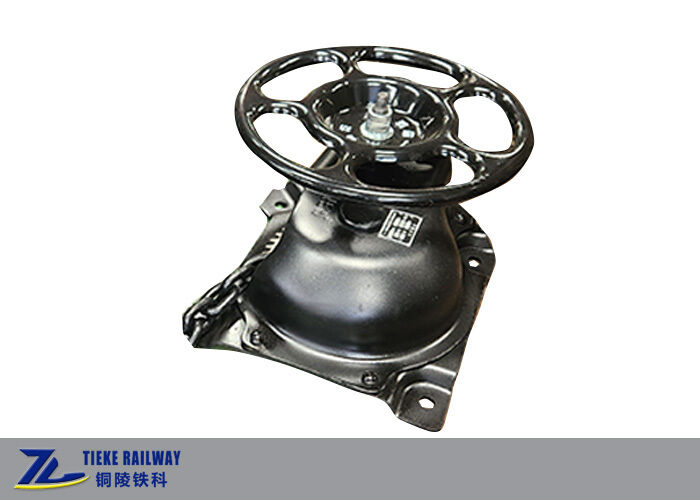

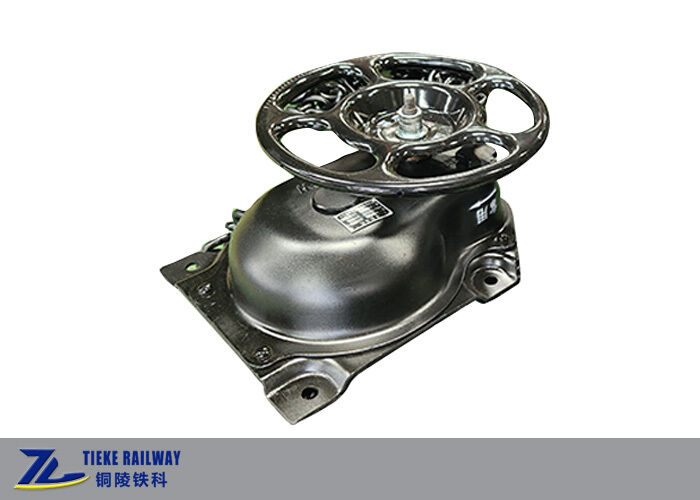

The NSW type hand brake machine is applicable to all kinds of railway freight wagons for parking or shunting. It is mainly composed of the case, base, hand wheel, speed regulating handle, driving shaft, chain winding shaft and locking mechanism. The hand wheel is printed with direction indicating ‘ON’ and ‘OFF’, and the nameplate is on the case.

Operating Instructions

• ON: Turn the speed regulating handle upright, then turn the hand wheel clockwise to produce and maintain the braking force.
• OFF: Keep the speed regulating handle stationary, turn the hand wheel anticlockwise for about 40° and the hand brake will release. The torque required for release is about 50% of the input torque when braking.
• Slow Down: Turn the speed regulating handle anticlockwise to the horizontal position. At this time the spine tongue does not work. If necessary, turn the hand wheel clockwise to brake and anticlockwise to release at any time.
• Locking: A brake locking device operated by a triangle key is equipped. To lock the hand brake, turn the locking tab at the bottom left of the case clockwise after braking until the key cannot move. Turn the key anticlockwise to release the locking function.

Main Technical Parameters

Why Choose Tieke Railway

Tieke Railway manufactures and exports railway wagons and wagon parts directly. With over 10 years of experience in manufacturing railway wagons and bogies, we can design hand brake machines and bogie components for different gauges including 1435mm, 1000mm, 1067mm and 1520mm. Send us your drawings or technical requirements for an accurate quotation.
