Place of Origin:
China
Brand Name:
Tieke
Model Number:
C70

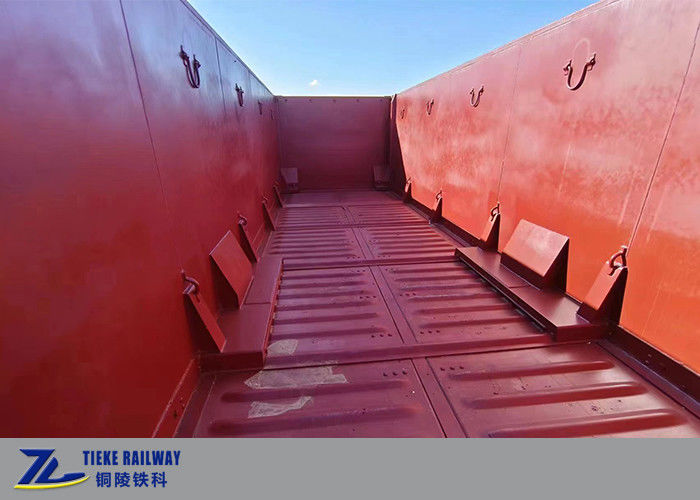

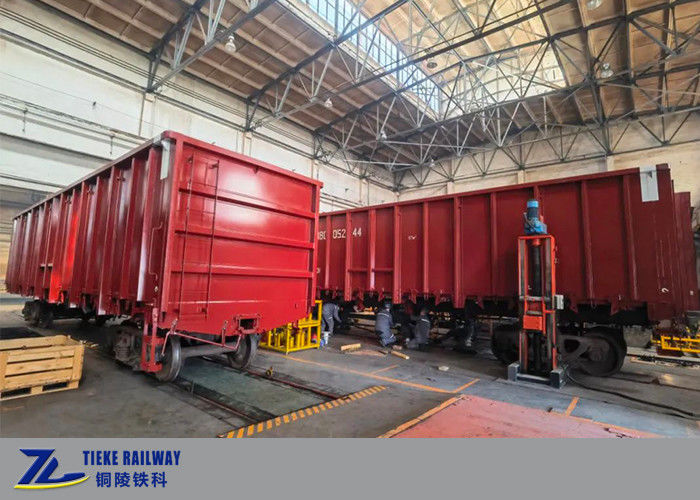

Open Top Wagon is a type of railway coal wagon specially designed for the transportation of coal, ore and other bulk material. It is an ideal choice for the transportation of large coal and ore. With a volume of 82 M3, a maximum width of 3230mm, a payload of 70t and an axle load of 23.5t, it can reach a maximum running speed of 120km/h. It is an excellent 1520mm railway coal wagon for bulk material transportation. The open top design allows for quick loading and unloading of the material. In addition, the open top design also enhances the safety of the transportation process.
| Parameter | Value |
|---|---|
| CIS railway open wagon | Yes |
| Rail gauge | 1520mm |
| Coal open wagon | Yes |
| Steel open wagon | Yes |
| Coupler center height | 1060mm |
| Axle load | 23.5t |
| Max. height | 3621mm |
| Max. running speed | 120km/h |
| Limit gauge | 1-T |
| Pay load | 70t |
| Max. length | 13920mm |
| Volume | 82 M3 |
| Fixed distance | 8650mm |
Tieke C70 is a 1520mm railway coal wagon with a 1-T limit gauge, 82 M3 volume, 24t tare weight and a maximum length of 13920mm. It is an open top wagon specifically designed for transporting coal. It is a reliable and efficient option for railway operators, perfect for the transportation of coal over long distances. It is highly resistant to wear and tear and is built to withstand high loads and speeds. The Tieke C70 1520mm open top wagon is an excellent choice for transportation of coal.
Packaging and Shipping for Open Top Wagon:
The open wagons will be packed in nude and there are anti-collision protection in the corner sides. The packing suits for sea freigt transportation and truck transportation.
