Railway Bogie Side Frame Casting Steel Wood or metal Mold

Railway Bogie Side Frame Casting Steel Wood or metal Mold

Bogie side frame

Bogie side frame casting

Bogie casting frame

Place of Origin:

China

Brand Name:

Tieke

Model Number:

Customized

Contact Us
Request A Quote
Product Details
Name:
Railway Bogie Side Frame Casting Bogie Frame Casting Steel Side Frame
Rail Gauge:
Narrow Gauge, Standard Gauge, Broad Gauge, Meter Gauge
Standard:
AAR, EN, TB, GOST And Etc
Production Process:
Sand Casting
Mold Material:
Wood Or Metal
Material:
Cast Steel Grade B Or Grade C
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Pallet
Delivery Time
2-4 months
Payment Terms
L/C, T/T
Supply Ability
20,000 pcs per year
Product Description

Railway Bogie Side Frame Casting Bogie Frame Casting Steel Side Frame



Breif introduction:

Casting side frame is an important part of the casting type three-piece bogie for railway vehicle. Side frame is to connect two wheel sets and transfer the load of the car body from the bolster and suspension system to the wheels and rails. Side frames are generally made of cast steel by casting process, and often equipped with column wear plate, chute wearing plate and other components.

Tieke has been manufacturing railway wagons for over ten years. We own moulds for K2 bogie, K6 bogie, K8 bogie, meter gauge bogie, 1067mm gauge bogie and 1520mm gauge bogie.Besides, we could also design and manufacture side frames according to customer’s specific requirements of the bogies.



Why choose us?

  1. We own series of casting bogies could meet different axle loads and different gauge requirements;

  2. Our foundry is designated foundry of the Ministry of Chinese Railways, for the casting products of railway train parts and the quality is assured;

  3. Tieke provide full ranges of various wagon and bogie parts and one stop services for customers;

  4. Tieke is adaptable to different railway gauges, different axle loads, running speeds;

  5. Tieke could design manufacture and material standards like AAR, EN, TB, GOST and etc.



The side frame is mainly casted by Class B and Class C steel as below table:

Chemical composition of casting side frame:

Material

C ≤

Si≤

Mn≤

P≤

S≤

Cu≤

Ni≤

Cr≤

Mo≤

Class B

0.28

0.4

1

0.03

0.03

0.3

0.3

-

-

Class C



0.28

0.4

1.5

0.03

0.03

0.3

0.35

0.3

0.3



Mechanical properties of casting side frame:

Material

Tensile strength

Yield Strength

Elongation Rate

Reduction rate in section

Impact absorption

Class B

≥485

≥260

≥24

≥36

≥20(-7℃)

Class C

≥620

≥415

≥22

≥45

≥20(-18℃)

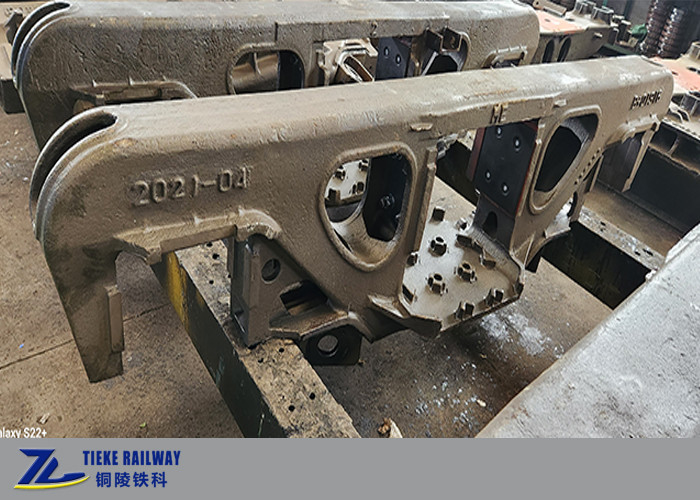

Tieke workers are assemblying Bogie:

Railway Bogie Side Frame Casting Steel Wood or metal Mold 0

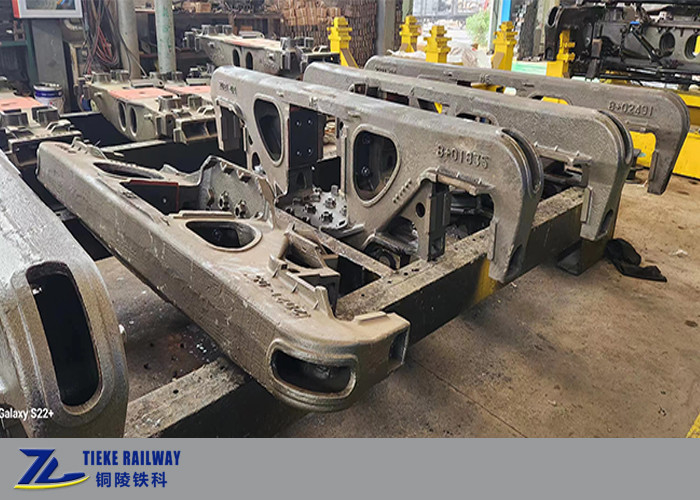

Semi finished bogie:

Railway Bogie Side Frame Casting Steel Wood or metal Mold 1



FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
