Place of Origin:
China
Brand Name:
Tieke
Model Number:
PC40
Main features:
1. The crane wagon's under frame is composed of center beam, side beam, sleeper beam, cross beam and reinforcing beam. The center beam adopts 36 channel steel and reinforcing plate to form a box beam, the side beam adopts 25 channel steel, and the floor adopts 5mm checkered steel plate, which is solid, flat, beautiful and anti-skid. The structural strength, vertical stiffness and impact strength of the frame comply with the provisions of TB / T1335-96 and TB / T2369-93.
2. The crane wagon's running part is composed of two axle unpowered welded bogies, which are composed of frame, side bearing, wheel set and axle box, V-shaped rubber spring, spherical upper and lower center plates, foundation brake, etc. The primary suspension adopts V-shaped rubber spring, and the wheel adopts integral rolled steel wheel, which meets the return speed of 100 km / h and has good running quality;
3. The side plates and side plates around the flat crane wagon are movable plates, which can adapt to the lifting and transportation of a variety of equipment and materials;
4. The crane and flat wagon are connected by flange to facilitate installation; The crane’s drive system is independent and the operation is more flexible;
5. The flat car braking system is composed of air braking system, foundation braking device and hand braking device, which can be connected with other rail vehicles.
We can also develop other rail construction and maintenance vehicles according to the special needs of customers.
Main technical parameters:
| Name | Customized Railway Freight Car Railway Crane Wagon 10 Tons Lifting Load |
| Application | Lift and transfer railway building materials or equipment for railway construction |
| Load of flat car | 40T |
| Tare weight | 19T |
| Cranes options | 8t,10t,12t |
| Rail gauge | 1435mm |
| Flat car dimension | 13000mm×2750mm(Length, width) |
| Steel floor height | 1150mm |
| Side plate height | Side plate:420mm ; end plate:270mm |
| Coupler center height | 880±10mm |
| Min radius | 100m |
| Structural speed | 120km/h |
| Brake method | Air brake and hand brake |
| Coupler type | No.2 Coupler |
| Bogie type | Welding bogie |
| Wheel diameter | 840mm |

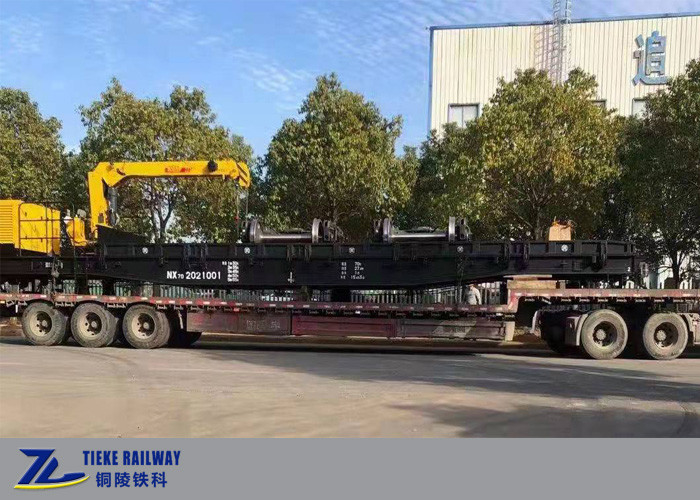

Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Typical parameters of 10T crane and 12T crane:

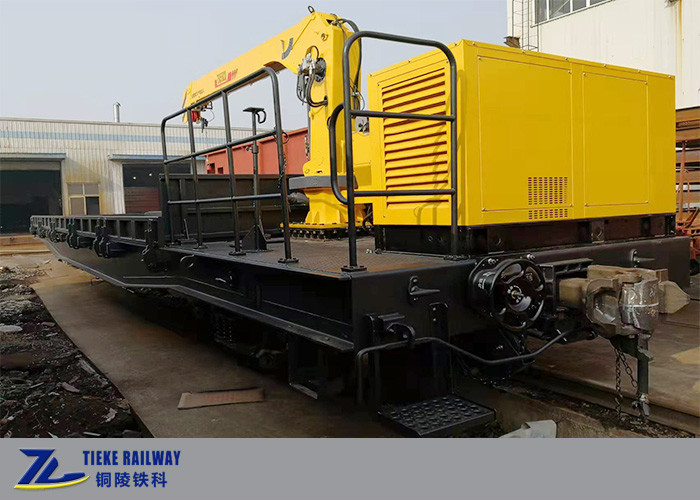

Detail image:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
