Place of Origin:
China
Brand Name:
Tieke
Model Number:
NX70

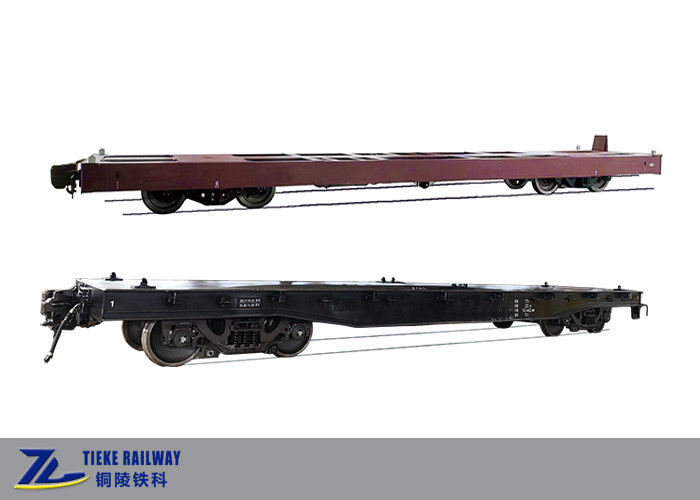

This flat bed railcar is mainly composed of chassis, floor, container lock device, end wall, coupler buffer, brake system, and bogies. The chassis is all welded structure and covered with steel foor. The bogies are K6 three-piece casting steel type , which is mature product in Chinese railway.
We are able to design and manufacture various flat bed wagons for 20', 30' or 40' containers. The rail gauges could be 1000mm, 1067mm, 1435mm and 1520mm. We could ensure the flat bed wagons could be linked with customers locomotive and other railcars.
Main features of NX70 container rail car flat bed wagon:
Main technical parameters:
| Name | Container Rail Car Flat Bed Wagon Two 20 GP Loading Capacity 70 Tons |
| Application | Transport 20' containers by railway or railroad |
| Load | 70t |
| Tare weight | 23.8t |
| Axle load | 23t |
| Gauge | 1435mm |
| Wheel diameter | 840mm |
| Number of axles | 4 |
| Bogie type | K6 Casting bogie |
| Coupler type | #17 New interlock coupler, grade E steel |
| Coupler center height | 880mm |
| ISO container loading ground to rail surface distance(empty) | 1216mm |
| Length | 16366mm |
| Min radius | 145m |
| Brake type | Air brake +park hand brake |
| Brake ratio | 7.8 |
| Brake distance | ≤1400mm |
| Design speed | 120km/h |
| Limit gauge | Comply with Comply GB146 1-83 ‘standard gauge railway rolling stock gauge’ |
Container railway loading condition:
| S/N | Containers | Max. Gross Weight |
| 1 | 1×ISO 20’ Container | 1×30.48t |
| 2 | 2×ISO 20’ Container | 2×30.48t |
| 3 | 1×ISO 40’ Container | 1×30.48t |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Application photos:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
