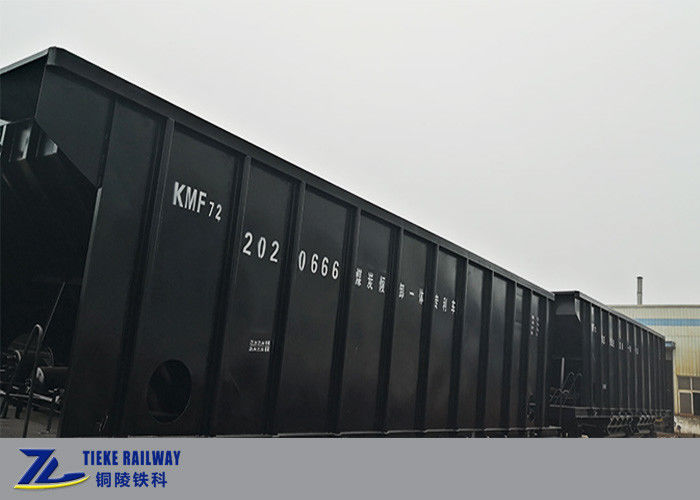

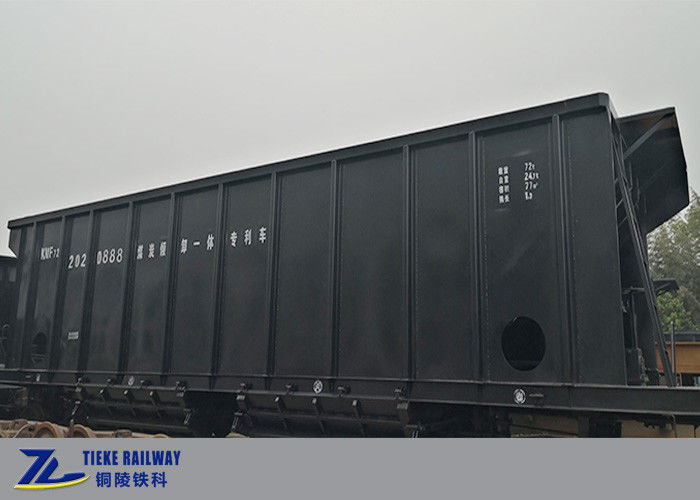

Quick Unloading Coal Hopper Wagon Air Control 77 Cubic Meter

Quick Unloading Coal Hopper Wagon Air Control 77 Cubic Meter

Quick Unloading Coal Hopper

77 Cubic Meter Coal Hopper

77 Cubic Meter Hopper Wagon

Place of Origin:

China

Brand Name:

Tieke

Model Number:

KMF72

Contact Us
Request A Quote
Product Details
Name:
Air Control Quick Unloading Railroad Coal Hopper Car 77 Cubic
Application:
Transport Bulk Coals By Railway
Railway Gauge:
1435 Mm
Pay Load:
72 Tons
Tare Weight:
24.7 Tons
Bogie Type:
K6 Three Big Piece Casting Steel Bogie
Coupler:
No.17 Coupler And MT-2 Buffer
Design Speed:
120 Km/h
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Nude packing with support base and with anti-collision protection
Delivery Time
3-6 months
Payment Terms
T/T, L/C
Supply Ability
1000 sets per year
Product Description

Air Control Quick Unloading Railroad Coal Hopper Car 77 Cubic

KMF72 Coal hopper Car is upgraded on the basis of KM70 coal hopper car by adding one set air control system, realizing multiple cars unloading the coals at the same time, which greatly improves the coal unloading efficiency.



The other main design and structures are similar with KM70. The hopper car is comprised of under frame, bottom doors, bottom door opening and closing mechanism, air control pipeline device, bogie, braking device and coupler buffer device. The unloading ports are on both sides of the vehicle bottom and there are 4 unloading hatches, which can be unloaded quickly by air control or by manual. The underframe and the bottom doors are all welded steel structure. It adopt K6 casting bogies, 120 type air brake control valve, NSW type hand brake, #17 coupler and MT-2 buffer.


Main features:

  • One train of hoppers could be unloaded at the same time
  • Upper load and bottom unload
  • Pneumatic auto unloading
  • Easy operation and maintenance
  • Safety



Main technical parameters:

Name Air Control Quick Unloading Railroad Coal Hopper Car 77 Cubic
Application Transport bulk coals by railroad
Load 72t
Tare weight 24.7 t
Capacity 77 m3
Axle load 25t
Gauge 1435mm
Coupler type #17 coupler and MT-2 buffer
Coupler center height(empty) 880 mm
Length 14300 mm
Bogie type K6 three big piece casting steel bogie
Fixed axle distance 1830mm
Wheel diameter 840mm
Load method Upper load, bottom and sides unload
Number of unload hatches 4
Brake method Air brake
Brake distance ≤1400 m
Brake ratio 7.8
Transmission type Two stage transmission and top lock mechanism
Max. running speed 120 km/h
Min radius 145m
Lifespan 25 years
Limit gauge Comply with GB146 1-83 ‘standard gauge railway rolling stock gauge’



 The added air control device:
The added air control device (refer to below picture),  is arranged on the upper part of the traction beam at the position two end of the hopper car. In order to ensure driving safety and not affecting original air brake system, an independent train pipe is installed to supply air to the air control device. The door opening mechanism at the bottom of the hopper is controlled by the air control device to complete the opening and closing of the bottom door, so as to realize the coal unloading automation of the hopper car and the synchronous coal unloading and closing of the whole train. According to the air supply mode (locomotive or ground) selected by the customer, an appropriate length of braided brake hose assembly shall be installed at the end or tail of the train to realize the connection with the air supply device.



Quick Unloading Coal Hopper Wagon Air Control 77 Cubic Meter 0


Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
 Quick Unloading Coal Hopper Wagon Air Control 77 Cubic Meter 1


 FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.

Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
