Place of Origin:
China
Brand Name:
Tieke
Model Number:
K13NK
Video

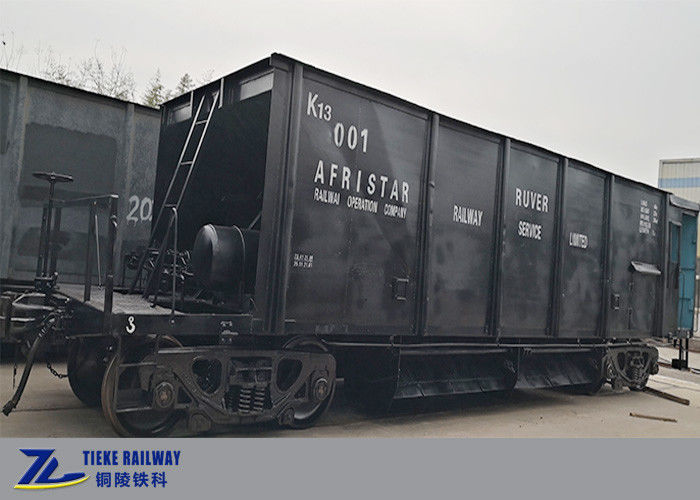

K13NK Ballast hopper wagon is upgraded on the basis of K13NA ballast hopper wagon by adopting K2 bogies, automatic empty / load adjustment device, new combined brake beam, new high friction composite brake shoes and etc.
This hopper wagon is a special railcar to transport ballast for laying new railway or repairing old railway, or to transport similar aggregate cargo for industrial or mineral factories. It could be loaded from both sides of the railway and discharged to both sides of the railroad.
K13NK ballast hopper wagon is mainly composed of under frame, side wall, end wall, hopper, operation cab, unload ballast system, dust remove system, bogies, brake system, and coupler buffer. The underframe is made by complete welded steel without middle beam.

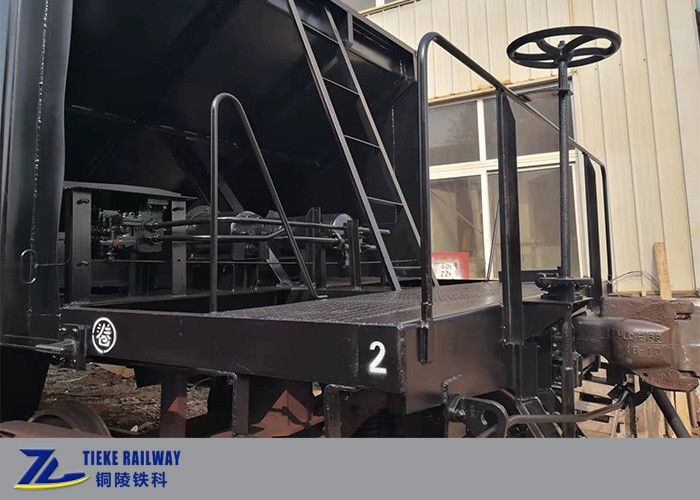

When discharging the transported cargo (ballast or ore stones) , the bottome doors could be operated pheumatically or by manual. The hopper wagon is equipped with indepent operation cab to open and close the bottom doors of the hoppers. The doors operation mechanism is composed of upper transmission device and lower transmission device. The manual transmission mechanism and pneumatic control management system are set on the under frame at the one end of the car body. The pneumatic transmission and manual braking mechanisms are independent of each other, and its conversion is controlled by the shift fork and the jaw clutch. The bottom door opening and closing mechanism has a self-locking function, which can ensure that the bottom door will not open automatically during vehicle operation. At the same time, in order to avoid the accidental opening of the bottom door opening and closing mechanism caused by the operator's miss-operation during vehicle operation, an eccentric locking anti miss rotation device is also equipped.
Main features:
Main technical parameters:
| Name |
Railway Freight Cars Ballast Hopper Wagons Covered 60 Tons Load |
|
Application |
Transport railway ballast |
| Load | 60t |
| Tare weight | ≤23t |
| Capacity | 36 m3 |
| Axle load | 21t |
| Gauge | 1435mm |
| Coupler type | #13A Grade C Steel |
| Coupler center height(empty) | 880 mm |
| Length | 12046mm |

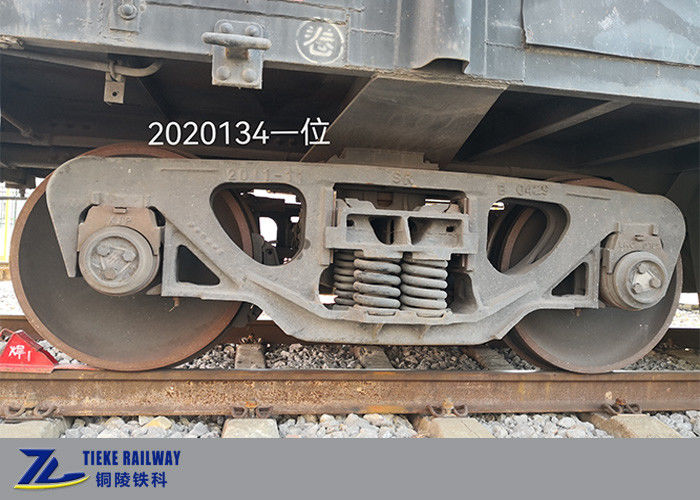

| Bogie type | K2 Bogie |
| Fixed axle distance | 1750mm |
| Wheel diameter | 840mm |
| Load method | Upper load, two sides and bottom pneumatic unloading |
| Brake method | Air brake |
| Brake distance | ≤1400 m |
| Brake ratio | 9.6 |
| Max. running speed | 120 km/h |
| Min radius | 145m |
| Lifespan | 25 years |
| Limit gauge | Comply with Comply GB146 1-83 ‘standard gauge railway rolling stock gauge’ |
Package and delivery:
Nude pack with support base and with anti-collision protection.
To meet the road limit height, we normally seperate the bogies and the car body during transportation.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Application photos:
Tieke K13NK ballast hopper wagons are in service on Chinese Railway.
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
