Forging steel Brake Master Cylinder Push Rod TB standard Train Rigging

Forging steel Brake Master Cylinder Push Rod TB standard Train Rigging

TB Brake Master Cylinder Push Rod

Tieke Brake Master Cylinder Push Rod

TB Cylinder Push Rod

Place of Origin:

China

Brand Name:

Tieke

Contact Us
Request A Quote
Product Details
Name:
Air Brake Parts Brake Cylinder Push Rod Train Brake Rigging Parts
Application:
Railway Freight Wagons Brake System
Material:
Forging Steel
Bushing Material:
Ao-Bey Wear Bushing
Dimension:
Customized
Standard:
TB Or Other Railway Standard
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Pallet
Delivery Time
1 month
Payment Terms
L/C, T/T
Supply Ability
500,000 pcs per year
Product Description

Air Brake Parts Brake Cylinder Push Rod Train Brake Rigging Parts



Brief introduction:

The train’s fundamental brake system including brake cylinder, brake cylinder push rod, car brake lever(front), car brake lever(back), pull rods, slack adjuster, bogie brake lever, swing lever, brake beam and push rod.



One end of the push rod is fixed on the brake cylinder and another end connecting with car brake lever. Brake cylinder push rod is the part directly receiving the brake force from the brake cylinder. Cooperated with levers, bogie pull rods, cylinder push rod transmit the brake force to the brake shoes and the wheels, realizing train brake.



Brake cylinder pull rod is made of forging steel and there are two connecting holes on the fork end. Ao-Bey wear resistant bushings are installed inside the holes.



Technical parameters:

Name

Air Brake Parts Brake Cylinder Push Rod Train Brake Rigging Parts

Application Railway freight wagons brake system
Material Forging steel
Bushing material Ao-Bey wear bushing
Dimension As per drawing
Standard TB or other railway standard

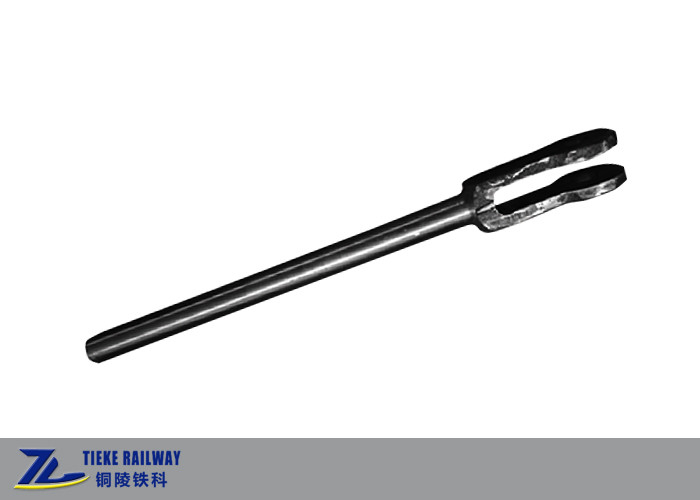

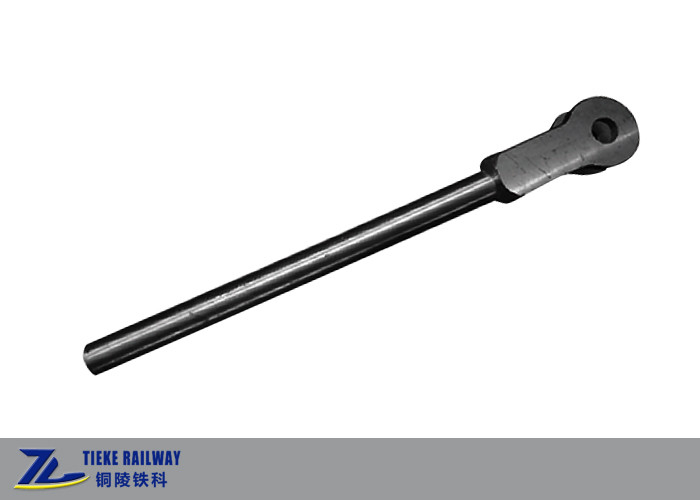

Detail image:

Forging steel Brake Master Cylinder Push Rod TB standard Train Rigging 0



Train brake rigging arrangement:

Forging steel Brake Master Cylinder Push Rod TB standard Train Rigging 1



Why choose us?

  1. Tieke is an authorized railway wagons parts provider of Chinese Railways and our quality is assured;
  2. Tieke provide full ranges of various wagon and wagon spare parts and one stop services for customers;
  3. Tieke is adaptable to different railway gauges, different axle loads, running speeds;
  4. Tieke could design and manufacture according other railway standards like AAR, EN, TB, GOST and etc.



FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons, bogies and various bogie parts directly.

Q2: Do you have design ability to provide customized railway bogie parts?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway parts according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
