Place of Origin:
China
Brand Name:
Tieke
Brief introduction:
The train’s brake rigging including car brake lever(front), car brake lever(back), pull rods, slack adjuster, bogie brake lever, swing lever, brake beam and push rod.
There are car brake lever and truck brake lever (bogie brake lever) in the brake rigging, according to the position mounted. The car brake lever is fixed on the automatic brake shoes clearance adjuster (slack adjuster). One end is connected to the brake cylinder and the other end is connected to the bogie through the connecting pull rod. Truck brake lever is fixed on the brake beam. The brake levers, together with the pull rods and connecting bushing, transmit the brake force produced by the brake cylinder to the brake shoes, and the brake shoe directly rubs the wheel, so that the train brakes.

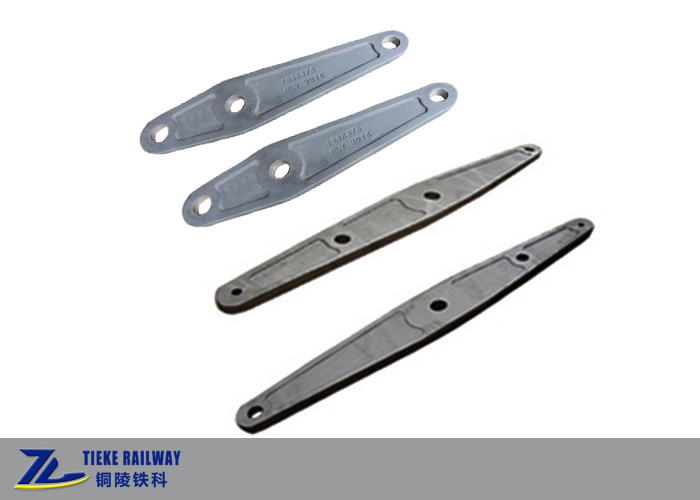

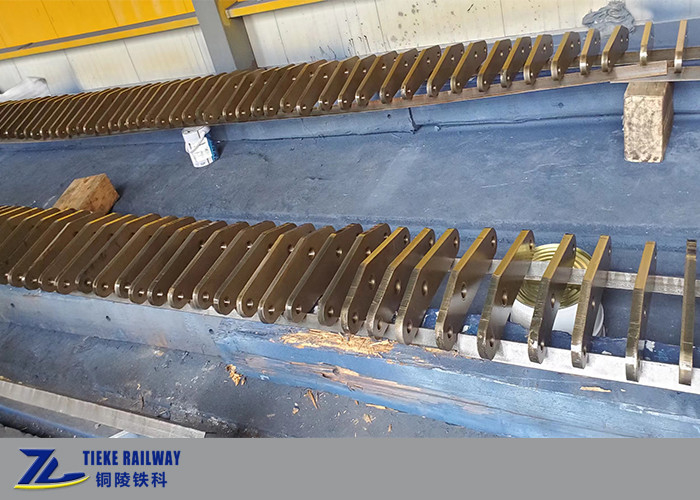

There are 4 holes on car brake lever and 3 holes on bogie brake lever. The holes size and distance on the brake lever is determined by the braking ratio of the vehicle model. The size of levers is designed to comply with the whole brake system requirement. The brake lever is generally made by forging and Ao-Bey wear resistant bushings are installed in the holes
Technical parameters:
Name | Railway Air Brake Parts Car Brake Levers Bogie Brake Levers for Brake Rigging |
Application | Railway brake rigging system |
Material | Forging steel |
Bushing material | Ao-Bey wear bushing |
Dimension | As per drawing |
Standard | TB or other railway standard |
Train brake rigging arrangement:
Why choose us?
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons, bogies and various bogie parts directly.
Q2: Do you have design ability to provide customized railway bogie parts?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway parts according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
