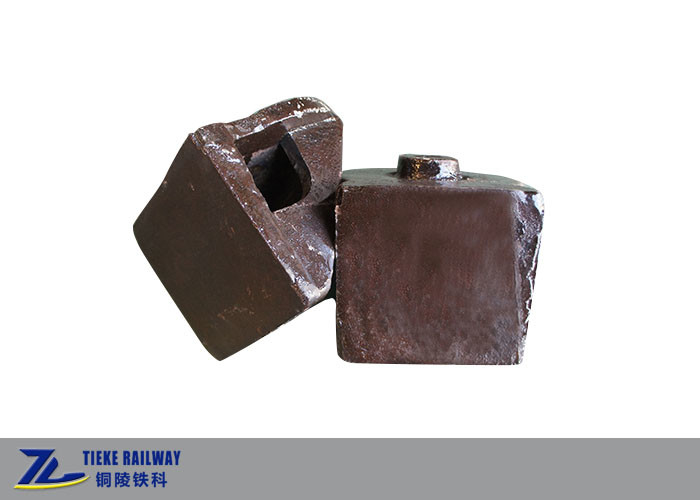

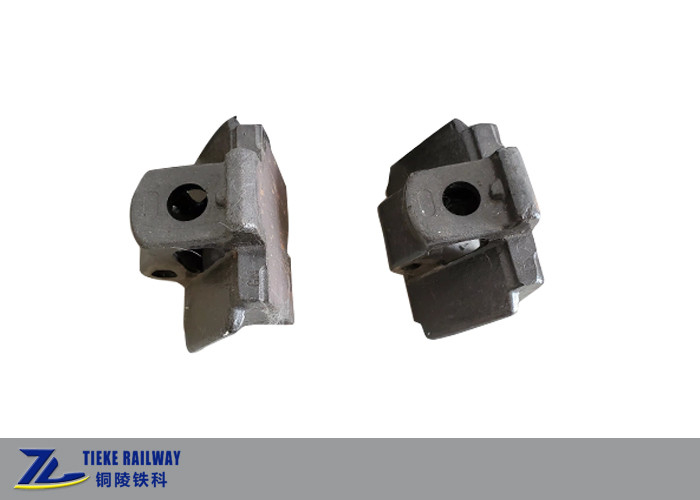

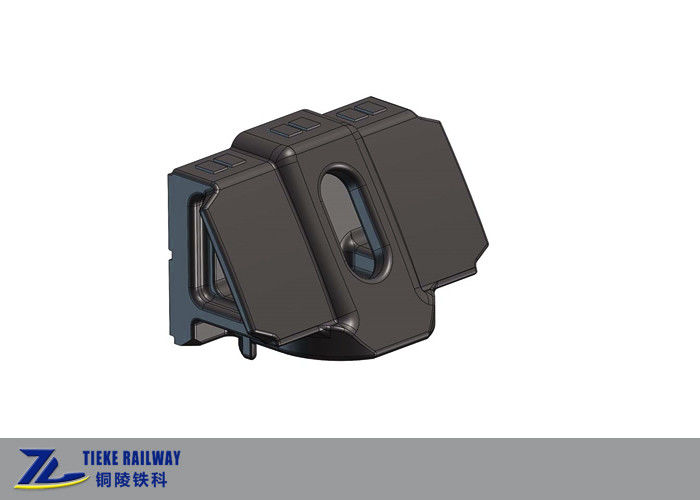

ADI Railway Bogie Parts Wedge Variable Friction Dumper Wedged Device

ADI Railway Bogie Parts Wedge Variable Friction Dumper Wedged Device

Wedge Railway Bogie Parts

Wedged Railway Bogie Parts

ADI Friction Wedge

Place of Origin:

China

Brand Name:

Tieke

Contact Us
Request A Quote
Product Details
Name:
Bogie Dumper Parts Wedge Variable Friction Dumping Wedged Device
Application:
Dumping Suspension System For Three Piece Bogie
Manufacture Process:
Casting
Material:
ADI, AISI1340, HT250, GG-25
Standard:
TB/T2813 Or Customer Requirements
Inclination Angle:
Customized
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Pallet or wooden case
Delivery Time
2-4 months
Payment Terms
L/C, T/T
Supply Ability
500,000 pcs per year
Product Description

Bogie Dumper Parts Wedge Variable Friction Dumping Wedged Device



Description:

Wedge suspensions are important systems for three-piece bogies.

The bogie wedge suspension device is a wedge-shaped variable friction damping device, which is composed of side frame column wear plate, combined wedge, inclined wear plate and double stiffness damping springs. Friction resistance is generated between the wedge and the wear plate of the side frame column to attenuate the vibration energy.



As proven, optimized designed wedge with the best inclination angle plays important role in reducing vertical acceleration and the friction between wheel and rail, the deviation on rail between loaded and empty running condition. The railway freight cars equipped with the best inclination angle wedge has qualitative improvement in stable operation, hunting speed, and derailment probability.



Friction wedge is made of ADI (Austenitic Ductile Iron), Casting alloy steel or grey cast iron by casting. The manufacturing process complies with the requirements of China railway or other country railway standards.We could design various friction wedges for the requirements of various bolster and side frame interfaces of different bogies.



Main technical parameters:

Name Railway Bogie Wedge Friction Wedge Cast Iron for Wedge Suspension System
Application For wedge suspension system for three piece bogie
Standard TB/T2813 or customer requirements
Manufacture process Casting
Inclination angle Customized
Material options ADI, AISI1340, HT250, GG-25



Typical bogie wedge suspension system diagram:

ADI Railway Bogie Parts Wedge Variable Friction Dumper Wedged Device 0



Three piece bogie structure diagram:

ADI Railway Bogie Parts Wedge Variable Friction Dumper Wedged Device 1


Wedges in warehouse:
ADI Railway Bogie Parts Wedge Variable Friction Dumper Wedged Device 2


Why choose us?

  1. Our foundry is designated foundry of the Ministry of Chinese Railways, for the casting products of railway train parts and the quality is assured;
  2. Tieke provide full ranges of various wagon and bogie parts and one stop services for customers;
  3. Tieke is adaptable to different railway gauges, different axle loads, running speeds;
  4. Tieke could design manufacture and material standards like AAR, EN, TB, GOST and etc.



FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
