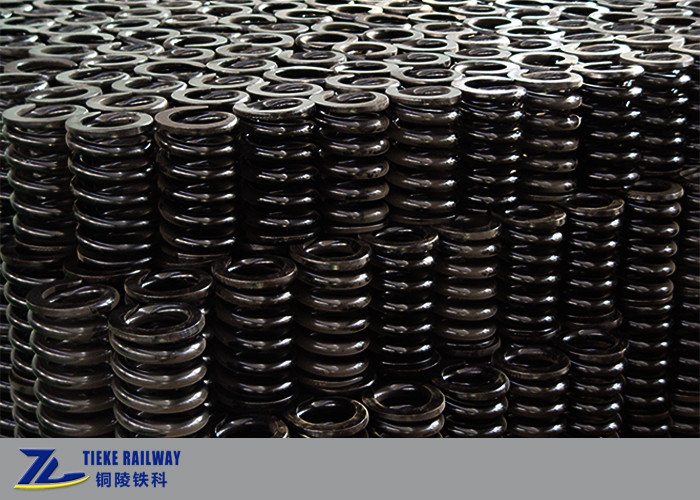

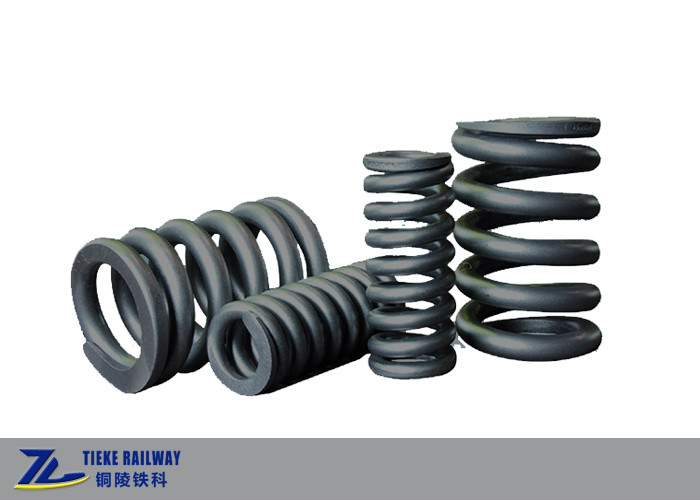

DIN 2096 Railway Bogie Parts Suspension Inner Outer Wedge Coil Spring

DIN 2096 Railway Bogie Parts Suspension Inner Outer Wedge Coil Spring

DIN 2096 Railway Bogie Parts

Suspension Railway Bogie Parts

DIN 2096 Wedge Spring

Place of Origin:

China

Brand Name:

Tieke

Contact Us
Request A Quote
Product Details
Name:
Bogie Springs Bogie Suspension Inner Spring / Outer Spring / Wedge Spring / Coil Spring
Application:
Suspension And Damper For Railway Bogies
Manufacture Process:
Rolling
Material:
60Si2CrVAT/60Si2CrVA/50CrV4/ SUP 9
Types:
Inner Spring, Outer Spring, Wedge Spring
Standard:
DIN 2096, JIS G 4801/Chinese Railway Standards
Payment & Shipping Terms
Minimum Order Quantity
4 sets
Price
Negotiable
Packaging Details
Pallet
Delivery Time
2-4 months
Payment Terms
L/C, T/T
Supply Ability
500,000 pcs per year
Product Description

Bogie Springs Bogie Suspension Inner Spring / Outer Spring / Wedge Spring / Coil Spring

Breif introduction:

The main functions of bogie’s spring suspension device are: 1. When the locomotive and vehicle passes through the uneven line or vibration and impact occur due to wheel set defects, it can alleviate the impact and attenuate the vibration; 2. Make the weight distribution between the wheel sets of the same bogie appropriate, so that the wheel load of each wheel set will not vary too much under various line conditions.



Springs for bogie’s suspension are made of high-strength spring steel by hot coil or cold coil, and manufactured according to AAR, EN or Chinese railway standards.



Main features:

Materials 60Si2CrVAT/60Si2CrVA/50CrV4/ SUP 9
Standard DIN 2096, JIS G 4801/Chinese Railway Standards
Manufacture process Rolling
Spring types Inner Spring, Outer Spring, Wedge Spring
Application Spring for railway freight cars, passenger cars, locomotive cars



Chemical composition of spring steel materials:

Material C Si Mn S P Cr Ni Cu V
60Si2CrVAT 0.56~0.64 1.40~1.80 0.40~0.70 ≤0.020 ≤0.020 0.90~1.20 ≤0.35 ≤0.20 0.10~0.20
60Si2CrVA 0.56~0.64 1.40~1.80 0.40~0.70 ≤0.030 ≤0.030 0.90~1.20 ≤0.35 ≤0.25 0.10~0.20
50CrV4 0.46~0.54 0.17~0.37 0.50~0.80 ≤0.030 ≤0.030 0.80~1.10 ≤0.35 ≤0.25 0.10~0.20
SUP 9   0.17~0.37   ≤0.030   0.65~0.95 ≤0.35 ≤0.25 0.10~0.20



Mechanical properties of spring steel materials:

Material Tensile strength σb (MPa) Yield strength σs (MPa) Elongation δ5 (%) Reduction of area ψ (%)
60Si2CrVAT ≥1665 ≥1860 ≥8 ≥20
60Si2CrVA ≥1862(190) ≥1666(170) ≥6 ≥20
50CrV4 ≥1274(130) ≥1127(115) ≥10 ≥40
SUP 9 ≥1225(125) ≥1080(110) ≥9 ≥20



Why choose us?

  1. Our foundry is designated foundry of the Ministry of Chinese Railways, for the casting products of railway train parts and the quality is assured;
  2. Tieke provide full ranges of various wagon and bogie parts and one stop services for customers;
  3. Tieke is adaptable to different railway gauges, different axle loads, running speeds;
  4. Tieke could design manufacture and material standards like AAR, EN, TB, GOST and etc.

Applications of bogie springs:

DIN 2096 Railway Bogie Parts Suspension Inner Outer Wedge Coil Spring 0



DIN 2096 Railway Bogie Parts Suspension Inner Outer Wedge Coil Spring 1



DIN 2096 Railway Bogie Parts Suspension Inner Outer Wedge Coil Spring 2



FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
