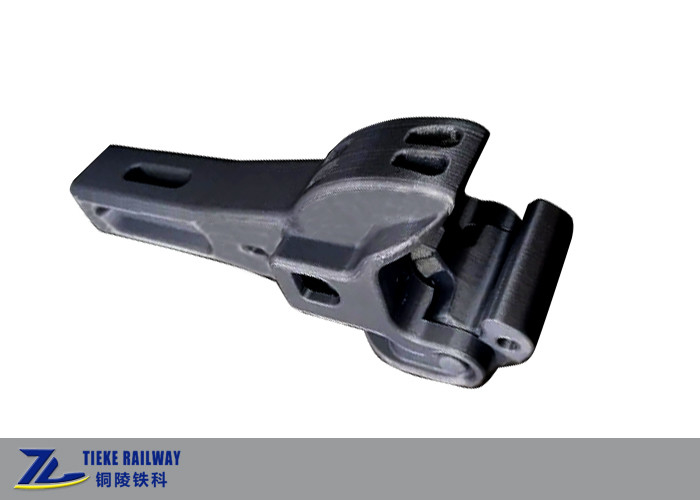

AAR F AAR E Railroad Knuckle Coupler E60EE SE60DE For Freight Car

AAR F AAR E Railroad Knuckle Coupler E60EE SE60DE For Freight Car

AAR E Railroad Knuckle Coupler

AAR F Railroad Knuckle Coupler

AAR E Railroad Knuckle

Place of Origin:

China

Brand Name:

Tieke

Contact Us
Request A Quote
Product Details
Name:
AAR E Coupler AAR E/F Coupler E60EE SE60DE Freight Car Couplers
Material:
Cast Steel Grade E
Min. Failure Load Of Coupler Body:
4005kN
Min. Failure Load Of Coupler Knuckle:
3430kN
Material Standard:
AAR M 201 Grade E Steel
Coupler Touch Profile Standard:
AAR S106, 10-A
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Wooden cases or pallet
Delivery Time
1-2 months
Payment Terms
T/T, L/C
Supply Ability
5000 sets per year
Product Description

AAR E Coupler AAR E/F Coupler E60EE SE60DE Freight Car Couplers



Breif introduction:

AAR E coupler and E/F coupler are AAR standard couplers. According to the open method, they could be divided into upper acting type and lower acting type. The hook, Knuckle and lock are all treatment by quenching and tempering. The touching profile adopt 10-A profile. The coupler materials comply with AAR M-201 standard, coupler profile comply with AAR S106 standard, and coupler manufacture comply with AAR M211 standard. All the AAR E coupler and E/F coupler adopt E50A knuckle, which are in consist and good interchangeability and compatibility with those currently in service in North America.



E/F coupler is developed on the basis of E coupler and F coupler, to meet the requirements of train passing curves and provide enough lateral swing. E/F coupler is mainly used for freight cars with long traction beams. The head of E/F coupler adopts the structure of E type coupler. The body and tail adopt the structure of F type coupler.



We could provide 9 kinds of E type coupler and E/F couplers with AAR certifications: E60EE(E60DE), SE60DE, SBE60DE, SBE67CE, SBE68CE, SBE69BE, E69BE, E4881AE, EF511WE.



Main technical features:

Name AAR E Coupler AAR E/F Coupler E60EE SE60DE Freight Car Couplers
Material Grade E steel, AAR M-201
Coupler profile AAR S106, 10-A
Manufacture standard AAR M211
Application Railway freight cars in North American countries
Models E60EE(E60DE), SE60DE, SBE60DE, SBE67CE, SBE68CE, SBE69BE, E69BE, E4881AE, EF511WE

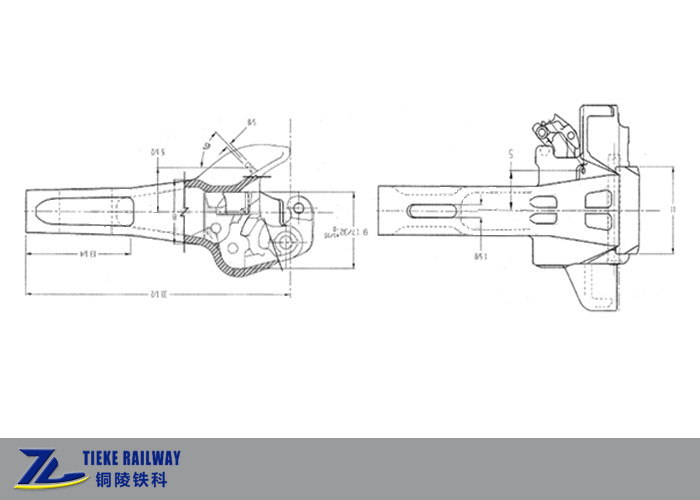

Main dimension of AAR E coupler:

AAR F AAR E Railroad Knuckle Coupler E60EE SE60DE For Freight Car 0



Main dimension of EF coupler:

AAR F AAR E Railroad Knuckle Coupler E60EE SE60DE For Freight Car 1



Why choose us?

  1. Tieke has over 10 years railway wagons manufacturing experiences and we are able to provide full services for the wagons parts;
  2. Our coupler foundry is a dedicated foundry of Chinese Railways, the quality is assured;
  3. Tieke could provide complete set or parts of couplers like buffers, yokes, knuckles and etc, we could provide one stop service for your wagon parts.
  4. Besides Chinese couplers, we could also provide AAR coupler, GOST coupler, UIC couplers.


Couplers ready for install:
AAR F AAR E Railroad Knuckle Coupler E60EE SE60DE For Freight Car 2

FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons and wagon parts directly.

Q2: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q3: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q4: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
