AAR M 201 TB Railway Wagon Parts Grade C Steel Car Body Upper Center Plate

AAR M 201 TB Railway Wagon Parts Grade C Steel Car Body Upper Center Plate

AAR M 201 Railway Wagon Parts

AAR Railway Wagon Parts

AAR Center Plate

Place of Origin:

China

Brand Name:

Tieke

Contact Us
Request A Quote
Product Details
Name:
Railway Freight Wagon Parts Upper Center Plate Car Body Center Plate
Manufacture Process:
Casting Or Forging
Material:
Grade B+ Steel, Grade C Steel, 25 Mn, ZG230-450 Casting Steel
Standard:
TB/T46 ‘Core Plate And Wear Plate Of Railway Vehicle’
Dimension:
As Customer Requirements
Application:
Connecting Under Frame And Bogies
Payment & Shipping Terms
Minimum Order Quantity
One set
Price
Negotiable
Packaging Details
Wooden cases
Delivery Time
1-2 months
Payment Terms
T/T, L/C
Supply Ability
20000 sets per year
Product Description

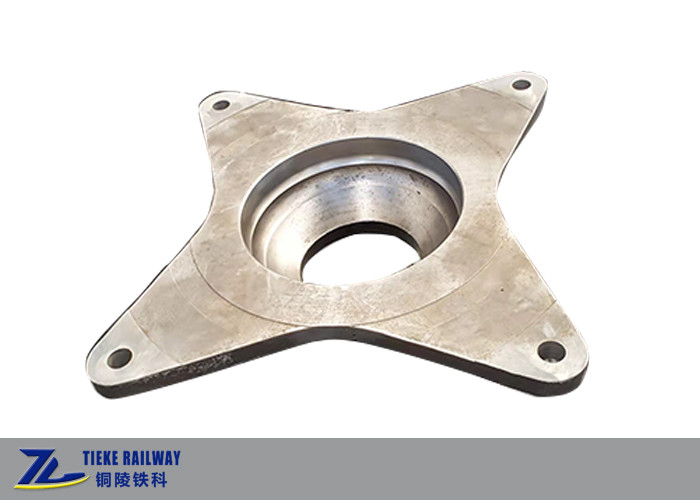

Railway Freight Wagon Parts Upper Center Plate Car Body Center Plate

Upper Center Plate, also called car body center plate, is the connecting part of under frame and bogies.

Normally, the upper center plate is mounted by rivet under the car body in a longitudinally extending center sill, to which a main bolster extending transversely relative. Upper center plate, wear disc and lower center plate (center plate on bogie) are threaded together by a pivot pin, realizing connecting the car body and the bogie.

Upper Center Plate is made by casting or forging process, according to AAR M-201 standard or Chinese standard materials. Tieke could design and manufacture various upper center plates for railway freight cars according to customer requirements and related railway standards.



Main technical features:

Manufacture process Casting for forging
Material Grade B+ steel, grade C steel, 25 Mn, ZG230-450 casting steel
Standard TB/T46 ‘Core plate and wear plate of railway vehicle’
Dimension As customers requirement

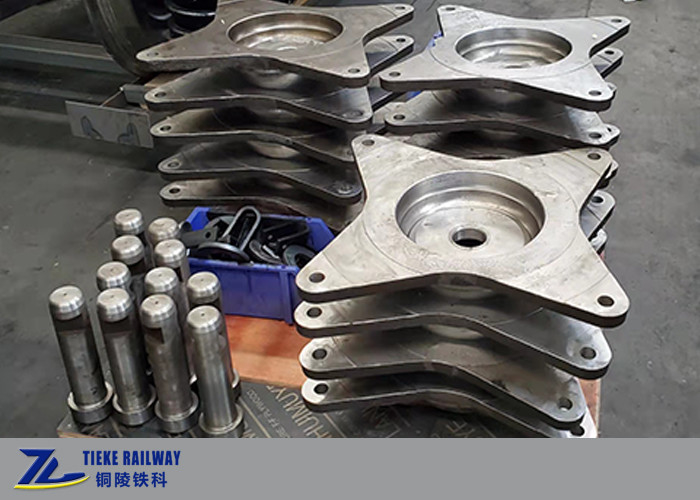

Tieke's car body center plates ready for installing on freight wagons:

AAR M 201 TB Railway Wagon Parts Grade C Steel Car Body Upper Center Plate 0



FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons and wagon parts directly.

Q2: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q3: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q4: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
