Railway Freight Car Train Handbrake Vertical Wheel NSW Hand Brake

Railway Freight Car Train Handbrake Vertical Wheel NSW Hand Brake

Railway Train Handbrake

Wheel Train Handbrake

NSW Train Hand Brake

Place of Origin:

China

Brand Name:

Tieke

Model Number:

NSW

Contact Us
Request A Quote
Product Details
Name:
NSW Hand Brake Machine Vertical Wheel Brake For Railway Freight Cars
Application:
Hand Brakes For Railway Freight Wagons
Hand Wheel Diameter:
400 Mm
Input Torque:
156 N*M
Output Full Force Of Chain:
≥10kN
Weight:
36 Kg
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Wooden cases
Delivery Time
1-2 months
Payment Terms
T/T, L/C
Supply Ability
20000 sets per year
Product Description

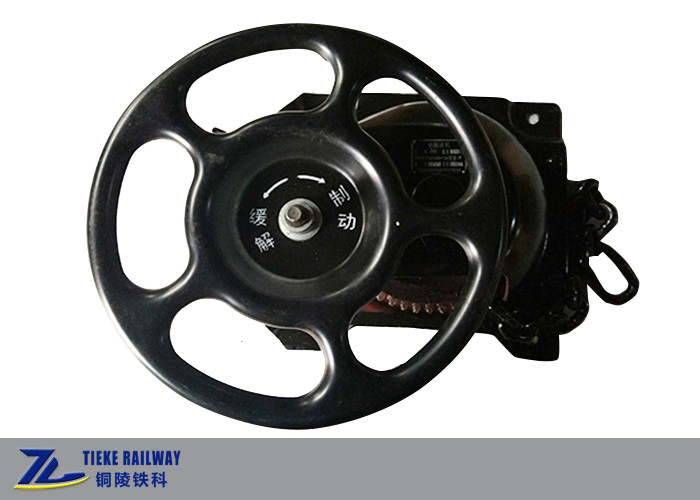

NSW Hand Brake Machine Vertical Wheel Brake for Railway Freight Cars



Breif introduction:

NSW type hand brake machine is applicable to all kinds of railway freight wagons for parking or shunting.

NSW type hand brake machine is mainly composed of case, base, hand wheel, speed regulating handle, driving shaft, chain winding shaft, locking mechanism. The hand wheel is printed with direction indicating ‘ON’ and ‘OFF’. The nameplate is on the case.



Main technical features:

  1. ON: turn the speed regulating handle up right, turn the hand wheel clockwise to produce and maintain the braking force.
  2. OFF: keep the speed regulating handle stationary, turn the hand wheel to anti clockwise for about 40 ° and the hand brake will release. The torque required for release is about 50% of the input torque when braking
  3. Slow down: Turn the speed regulating handle anticlockwise to the horizontal position. At this time, the spine tongue does not work. If necessary, turn the hand wheel clockwise to brake and turn the hand wheel anticlockwise to release any time.
  4. Equipped with brake locking device operated by a triangle key. To lock the hand brake, turn the locking tab at the bottom left of the case to clockwise direction after braking until the key could not move. At this position, the release function will be locked. Turn the key anticlockwise to release the locking function and release the operation.



Main technical parameters:

Name NSW Hand Brake Machine Vertical Wheel Brake for Railway Freight Cars
Application Hand brakes for railway freight wagons
Hand wheel diameter 400mm
Input torque 156N*M
Output full force of chain ≥10kN
Dimension 400mm*522mm*214mm
Installing hole size Diameter 18mm
Release torque Lower than brake torque
Weight 36 kg

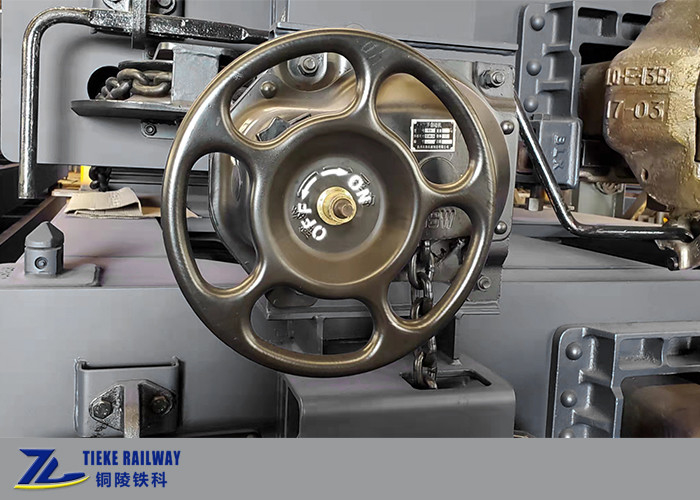

NSW hand brake machine installed on freight wagons:

Railway Freight Car Train Handbrake Vertical Wheel NSW Hand Brake 0



FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons and wagon parts directly.

Q2: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q3: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q4: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
