Welded Frame Goods Train Bogie For 4 Axle Truck Car 20 Ton Axle Load

Welded Frame Goods Train Bogie For 4 Axle Truck Car 20 Ton Axle Load

welded goods train bogie

20 ton axle goods train bogie

welded truck bogie

Place of Origin:

China

Brand Name:

Tieke

Contact Us
Request A Quote
Product Details
Name:
Welded Frame Bogie With 2 Axle Goods Train Car Bogie 20 Tons Axle Load
Application:
Truck Bogie For Goods Train Car
Rail Gauge:
1000 Mm
Axle Load:
20 Tons
Bogie Tare Weight:
4.1 Tons
Max. Running Speed:
100 Km/h
Min Radius:
120 M
Wheel Diameter:
920 Mm
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
2 sets/steel pallet
Delivery Time
2-4 months
Payment Terms
L/C, T/T
Supply Ability
5000 sets per year
Product Description

Welded Frame Bogie with 2 Axle Goods Train Car Bogie 20 Tons Axle Load



Breif introduction:

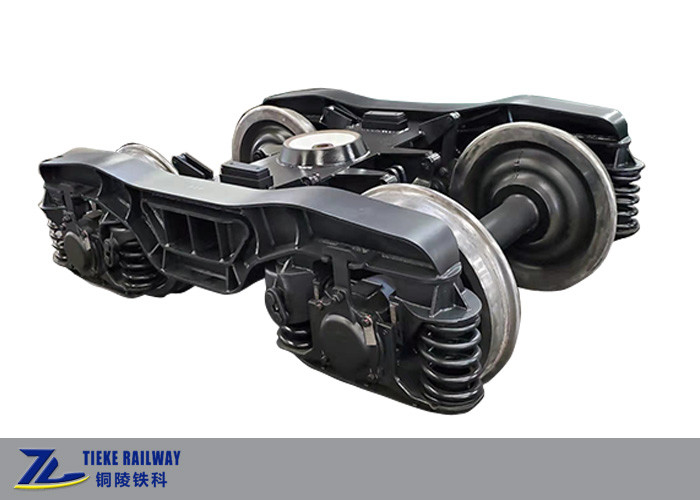

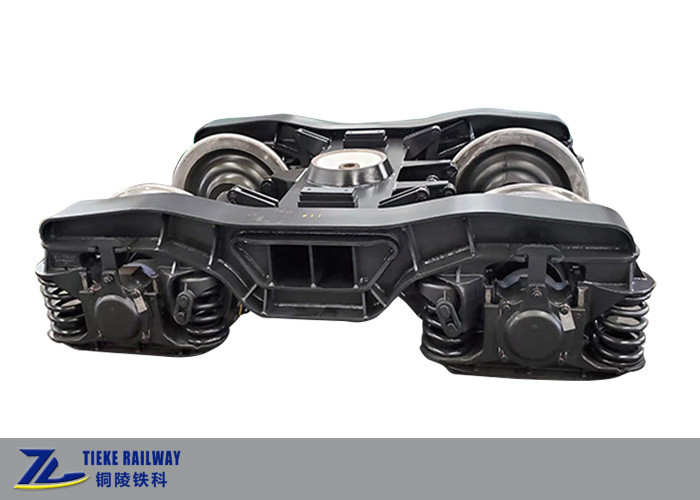

This welded frame bogie is developed for train car carrying cargo goods on meter gauge railway for Southeast Asian customers. The bogie’s axle load is up to 20t, and its running speed could reach 100km/h. This welded frame bogie is mainly composed of wheel set assembly, axle box assembly, damper device, bogie frame, brake device and weighing device.



We are able to design and manufacture welded frame bogies according to customers train car requirements.



Main technical features:

  1. Integral H type frame structural, high structural speed and light weight below the springs
  2. Spherical surface center plate, with bigger touch area of upper and lower center plates, distributing the load uniformly, and improving the ability to transmit longitudinal force and transverse force.
  3. Two stage stiffness spring for axle box, improving the vertical stability of empty vehicle, excellent dynamic performance under the condition of empty and loaded;
  4. Adopt Linor shock absorber to better solve the bogie’s different damping force requirements under empty status and loaded status
  5. Adopt constant contact elastic side bearing to improve the stability of the bogie snake movement
  6. Apply suspension bilateral brake shoes for braking, improving the barking efficiency and reducing the weariness of brake shoes.
  7. Adopt weighing device to realize automatic adjustment of braking force under the working condition of empty and loaded status.



Main technical parameters:

Name Welded Frame Bogie with 2 Axle Goods Train Car Bogie 20 Tons Axle Load
Application Truck bogie for goods train car
Rail gauge 1000mm
Axle load 16t, 18t, 20t
Tare weight <4.1t
Fixed axle distance 1750mm
Max. running speed 100km/h
Wheel diameter 920mm



Tieke bogies assembly workshop:

Welded Frame Goods Train Bogie For 4 Axle Truck Car 20 Ton Axle Load 0



Bogies package and transportation:

2 sets/steel pallet, suitable for forklift loading and unloading.

Welded Frame Goods Train Bogie For 4 Axle Truck Car 20 Ton Axle Load 1



Bogies loading by forklift into containers:

Welded Frame Goods Train Bogie For 4 Axle Truck Car 20 Ton Axle Load 2



FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
