Place of Origin:
China
Brand Name:
Tieke
Model Number:
P70
Breif introduction:

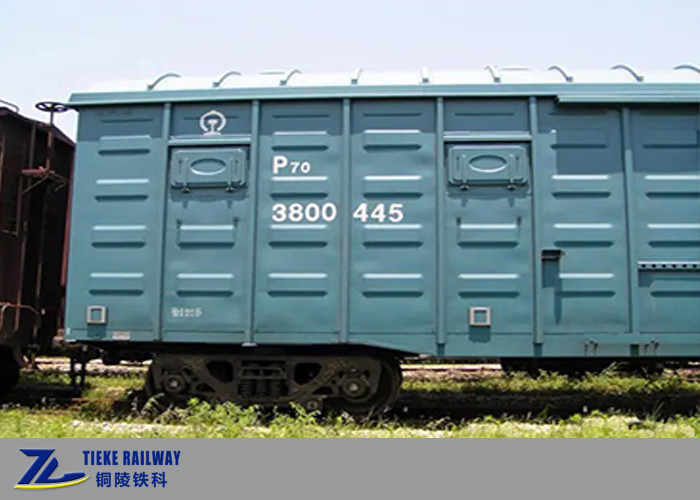

P70 Standard Gauge Covered Railway Goods Wagon Box Car 70 Tons Load is used on standard gauge railway. It can carry all kinds of goods protected from the sun, rain and snow, as well as goods packed in boxes and bags. With auxiliary facilities, it can transport personnel, and can meet the requirements of mechanized loading and unloading operations such as forklifts or conveyors.
Main features:
1. The volume of the boxcar is 145m3, the load is 70t, the volume is 10m3 higher than that of P64GK box car, the load is 10t higher than that of P64GK box car, and the single vehicle load is increased by 16.7%.
2. Adopt K6 bogie or K5 bogie with mature technology and reliable performance, running quality improved and commercial speed up to 120km/h; adopt No.17 coupler and high strength steel middle beam, and could meet the requirements of marshalling 10000 ton heavy haul trains.
4. Based on the application experience of the existing box car, the structure is optimized and the fatigue strength and corrosion resistance of the car body are improved;
5. Four ventilators are adopted on the top of the vehicle to strengthen the air circulation in the vehicle, improve the loading environment in the vehicle and avoid the corrosion of the roof plate caused by the damp and turbid air gathering on the top of the roof
Main technical parameters:
| Name | Standard Gauge Covered Railway Goods Wagon Box Car 70 Tons Load |
| Application | Transport all kinds of goods that need to protect from the sun, rain or snow. |
| Load | 70t |
| Tare weight | 24.6t |
| Capacity | 145m3 |
| Min Radius | 145m |
| Bogie type | K6 or K5 |
| Coupler | No.17 coupler |
| Wheel diameter | 840mm |
| Commercial running speed | 120km/h |
| Brake distance | ≤1400m |
| Length | 17066mm |
| Max. height | 4770mm |
| Coupler center height | 880mm |
| Floor height (to rail surface) | 1136mm |
| Door hole size | 2539mm×3012mm |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Application:
Packed grains in bags are loaded onto covered boxcar by conveyor.
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
