Place of Origin:
China
Brand Name:
Tieke
Model Number:
KM70

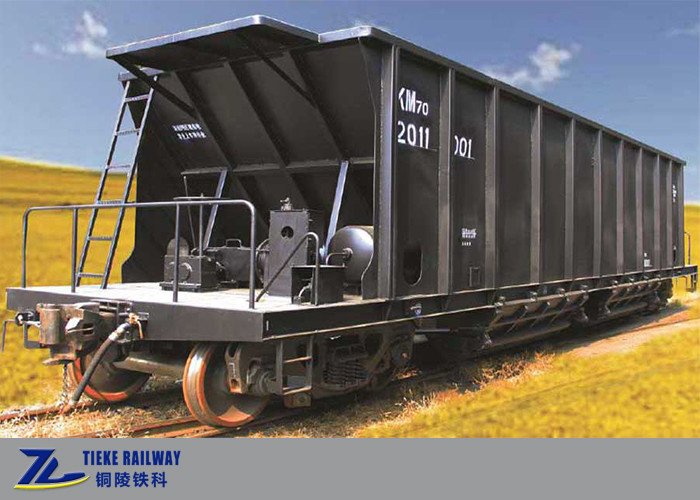

KM70 Coal / ore hopper car is designed for Chinese 1435mm standard gauge railway to transport bulk goods such as coal, mineral ores and etc. It is mainly composed of chassis, bottom doors, bottom door opening and closing mechanism, air control pipeline device, bogie, braking device and coupler buffer device. The unloading port is on both sides of the vehicle bottom and there are 4 unloading hatches, which can be unloaded quickly by air control or by manual. The chassis and the bottom doors are all welded steel structure. It adopt K6 casting bogies, 120 type air brake control valve, NSW type hand brake, #17 coupler and MT-2 buffer.
Main features:
Main technical parameters:
Name |
Railway Hopper Wagons Coal / Ore Hopper Cars Heavy Load 70 Tons |
Application |
Transport bulk goods such as coal, mineral ores by railway |
Load |
70t |
Tare weight |
≤23.8 t |
Capacity |
75 m3 |
Axle load |
23t |
Gauge |
1435mm |
Coupler type |
#17 coupler and MT-2 buffer |
Coupler center height(empty) |
880 mm |
Length |
14400 mm |
Bogie type |
K6 three big piece casting steel bogie |
Fixed axle distance |
1830mm |
Wheel diameter |
840mm |
Load method |
Upper load, bottom and sides unload |
Number of unload hatches |
4 |
Brake method |
Air brake |
Brake distance |
≤1400 m |
Brake ratio |
7.8 |
Transmission type |
Two stage transmission and top lock mechanism |
Max. running speed |
120 km/h |
Min radius |
145m |
Lifespan |
25 years |
Limit gauge |
Comply with GB146 1-83 ‘standard gauge railway rolling stock gauge’ |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Application photos:

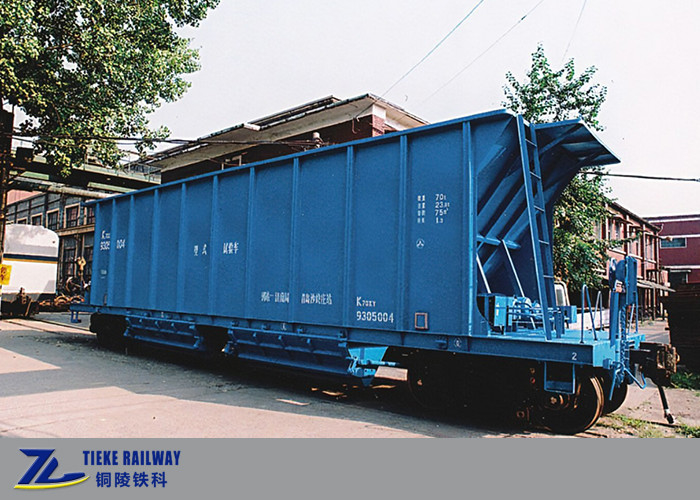

Tieke KM70 coal / ore hopper cars are in service on Chinese Railway.
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
