Place of Origin:
China
Brand Name:
Tieke
Model Number:
KF80
Breif introduction:

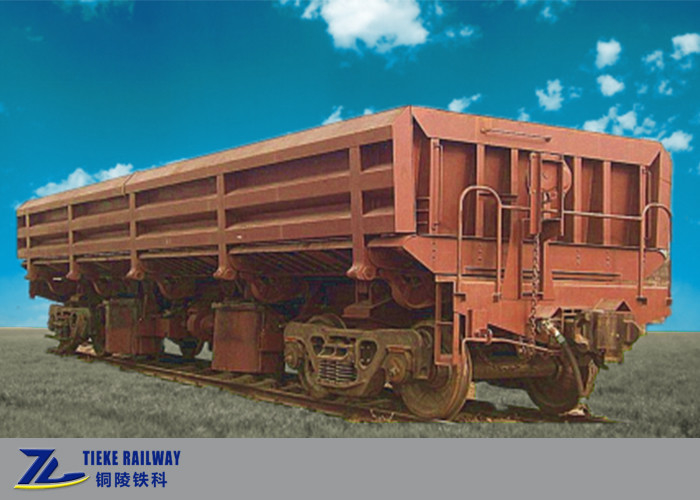

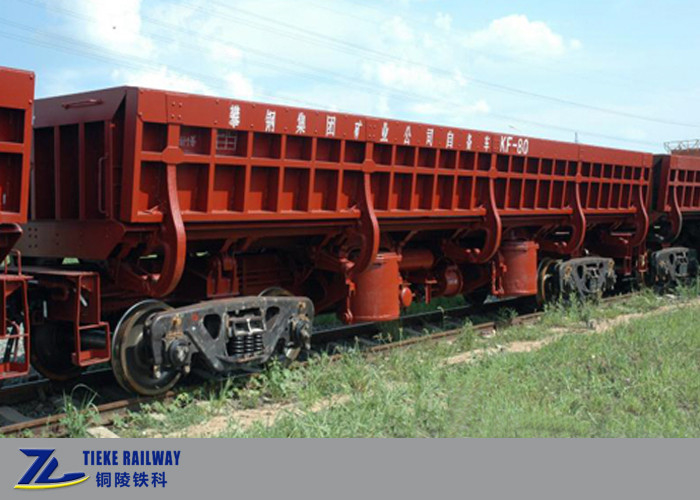

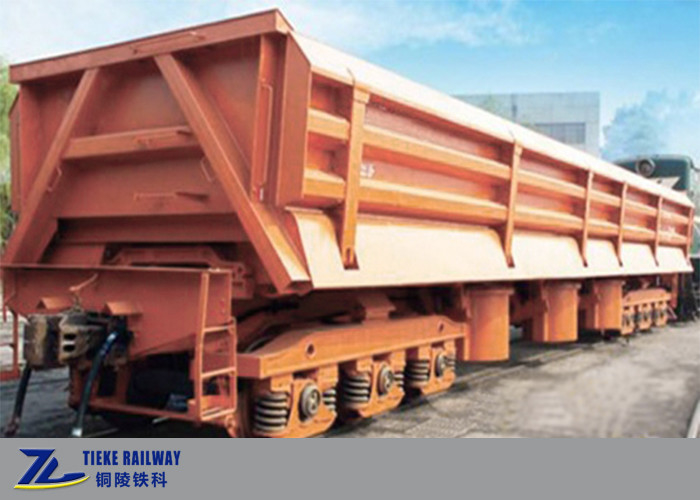

KF80 Pneumatic side tipping gondola is specially designed to transport heavy bulk goods like ballast, ore, rock, gravel, coal, building materials and etc. It is mainly applied in factories, mine developers, big construction sites, whose railway lines are complied with national grade III or above and with mechanized loading equipment. This side tipping gondola is mainly composed of chassis, side walls, bogie, titling cylinder, titling pipeline, control doors, air brake and coupler buffer. It has the features of stable tipping, rapid unloading, easy operation, high transportation efficiency, safe and reliable.
Main features:
Main technical parameters:
| Name | Railway Ballast Gondola Side Tipping Gondola Heavy Load 80 Tons |
| Application | Transport heavy goods as ballast, steel slag, building materials |
| Load | 80t |
| Tare weight | ≤40 t |
| Capacity | 36.6 m3 |
| Axle load | 30t |
| Gauge | 1435mm |
| Coupler type | #13B Grade C Steel |
| Coupler center height(empty) | 880 mm |
| Length | 13234 mm |
| Bogie type | 2RG Bogie |
| Fixed axle distance | 1800mm |
| Wheel diameter | 840mm |
| Load method | Upper load, two sides pneumatic tipping unloading |
| Side wall tipping degree | 45° |
| Tipping cylinder working pressure | 0.65MPa |
| Number of tipping cylinders | 4 pcs |
| Brake method | Air brake |
| Brake distance | ≤1400 m |
| Brake ratio | 7.8 |
| Max. running speed | 80 km/h |
| Min radius | 80m |
| Lifespan | 25 years |
| Limit gauge | Comply with Comply GB146 1-83 ‘standard gauge railway rolling stock gauge’ |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Application photos:

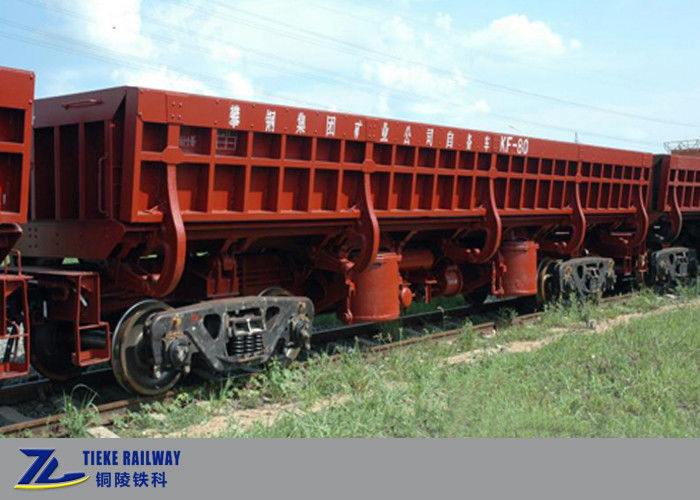

Tieke K80 side tipping gondola transporting stone slags.
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
