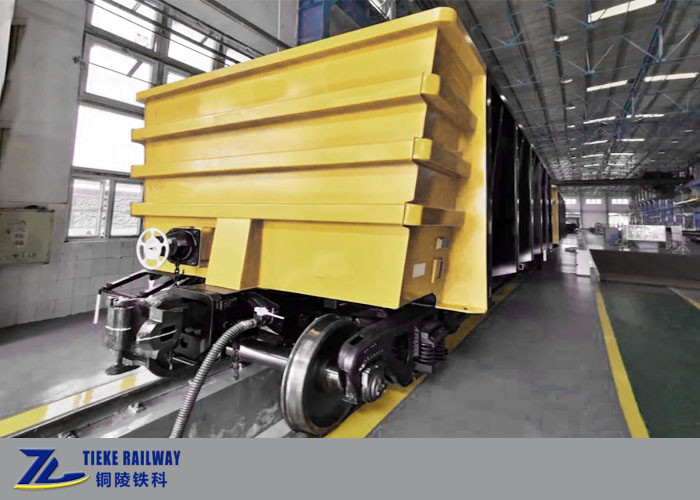

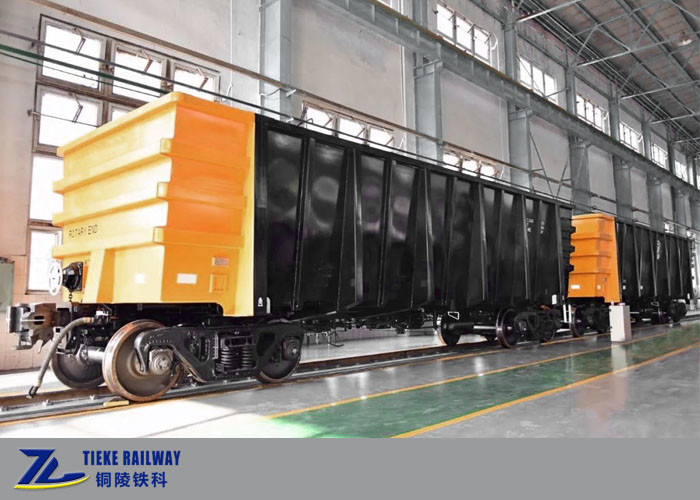

Railway Special Coal Bathtub Gondola 80 Tons Load 100 Km/H Design Speed

Railway Special Coal Bathtub Gondola 80 Tons Load 100 Km/H Design Speed

80 Tons Load Coal Gondola

100 km/h Bathtub Gondola

80 Tons Load Bathtub Gondola

Place of Origin:

China

Brand Name:

Tieke

Model Number:

C80

Contact Us
Request A Quote
Product Details
Name:
Special Coal Wagon Bathtub Gondola Open Top 80 Tons Load Railway Railroad
Application:
Transport Bulk Coals By Railway
Railway Gauge:
1435 Mm
Pay Load:
80 Tons
Tare Weight:
26 Tons
Bogie Type:
K6 Casting Bogie
Coupler:
No.16 Rotatable Coupler + No.17 Coupler
Design Speed:
100 Km/h
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Nude packing with support base and with anti-collision protection
Delivery Time
3-6 months
Payment Terms
T/T, L/C
Supply Ability
1000 sets per year
Product Description

Special Coal Wagon Bathtub Gondola Open Top 80 Tons Load Railway Railroad



Breif introduction:

C80 Special Coal Wagon Bathtub Gondola Open Top 80 Tons Load Railway Railroad was specially designed for Chinese Daqin Line(Datong to Qinhuandao) to transport bulk coal. The main purpose to develop this wagon was to improve the loading capacity of coal transportation to meet the economic development requirements. Each C80 bathtub gondola loaded more coal compared with previous railway coal wagon. It could realize continuous unloading without uncoupling, and meet the requirements of circular loading, straight in and straight out loading, disassembly loading and centralized traction of locomotive power during operation.



C80 coal bathtub gondola adopts stainless steel or aluminum alloy car body, greatly improving the car body lifespan. It adopts bathtub hopper unloading structure and rotatable coupler.


Main features:

  • Efficiency loading of 80 tons
  • Adapt to mechanical loading and unloading
  • Rotable coupler, no need uncoupling when loading
  • Stainless steel welded wagon body, longer lifespan
  • Special for coal or ore with big amount requirement



Main technical parameters:

Name Special Coal Wagon Bathtub Gondola Open Top 80 Tons Load Railway Railroad
Application Transport bulk coals by railway
Load 80 tons
Tare weight ≤26t
Capacity 84.8 m3
Axle load 25t
Gauge 1435mm
Coupler type #16 rotatable coupler + #17 coupler
Coupler center height(empty) 880 mm
Length 13976 mm
Bogie type K6 Bogie
Fixed axle distance 1830mm
Wheel diameter 840mm
Door hole size 950mm×756mm
Brake method Air brake
Brake distance ≤1400m
Brake ratio 7.3
Max. running speed 100 km/h
Min radius 145m
Lifespan 25 years
Limit gauge Comply with Comply GB146.1 1983 ‘standard gauge railway rolling stock gauge’


Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.

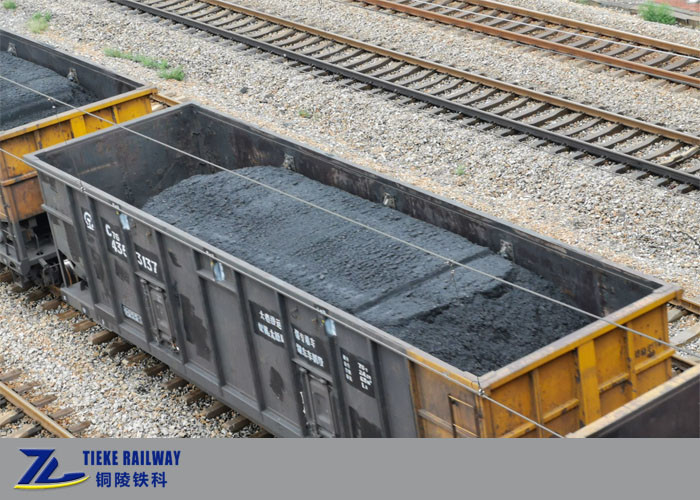

Application photo:Daqing Railway Coal Wagons Lines

Railway Special Coal Bathtub Gondola 80 Tons Load 100 Km/H Design Speed 0


 FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.

Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
