70t Heavy Load Railway Open Top Wagon 80km/h For General Purpose

70t Heavy Load Railway Open Top Wagon 80km/h For General Purpose

70t Open Top Wagon

80km/h Open Top Wagon

70t Open Wagon

Place of Origin:

China

Brand Name:

Tieke

Model Number:

C70

Contact Us
Request A Quote
Product Details
Name:
Railway General Purpose Wagon Train Gondola Heavy Load 70 Tons
Application:
Transport General Goods Like Ores, Coals, Containers And Etc
Railway Gauge:
1435 Mm
Pay Load:
70 Tons
Tare Weight:
24 Tons
Bogie Type:
K6 Casting Bogie
Coupler:
No.17 Grade E Steel
Design Speed:
80 Km/h
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Nude packing with support base and with anti-collision protection
Delivery Time
3-6 months
Payment Terms
T/T, L/C
Supply Ability
1000 sets per year
Product Description

Railway General Purpose Wagon Train Gondola Heavy Load 70 Tons



Breif introduction:

C70 Railway General Purpose Wagon Train Gondola Heavy Load 70 Tons is used on Chinese standard gauge railway. It is to transport coal, ore, building materials, machinery equipment, steel, wood, etc by rail train. It is a new heavy load railway common used wagon. It could meet the requirements of manual unload, the dumper’s mechanized unloading, and the thawing warehouse.



The typical feature of C70 gondola is heavy load of 70 tons, which has greatly improved the transport efficiency. Adopting new material, new technology, and new structure, C70 train gondola has longer maintenance cycle and lifespan. The C70 gondola adopts 17 coupler with grade E steel, improving the safety and reliability. Its brake system adopts module assembly technology, improving the assembly quality and running reliability. Modified chassis structure has bigger middle load. The bogies are K6, with superior running quality.



After over 15 year’s services on Chinese railway, C70 train gondola has been proven satisfactory to meet the requirements of high load and high speed.


Main features:

  • Wide application for general goods: packed goods, equipment, ore, coal, containers and etc
  • Heavy load of 70 tons
  • Longer maintenance cycle and lifespan
  • Stable dynamic strength
  • Reliable braking performance
  • Easy operation and maintenance
  • Safety



Main technical parameters:

Name Railway General Purpose Wagon Train Gondola Heavy Load 70 Tons
Application Transport general goods like ores, coals, containers and etc
Load 70t
Tare weight ≤24t
Capacity 77 m3
Axle load 25t
Gauge 1435mm
Coupler type #17 Grade E Steel
Coupler center height(empty) 880 mm
Length 13970 mm
Bogie type K6 Bogie
Fixed axle distance 1830mm
Wheel diameter 840mm
Brake method Air brake
Brake ratio 7.8
Max. running speed 80 km/h
Min radius 145m
Lifespan 25 years
Limit gauge Comply with Comply GB146.1 1983 ‘standard gauge railway rolling stock gauge’


Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.

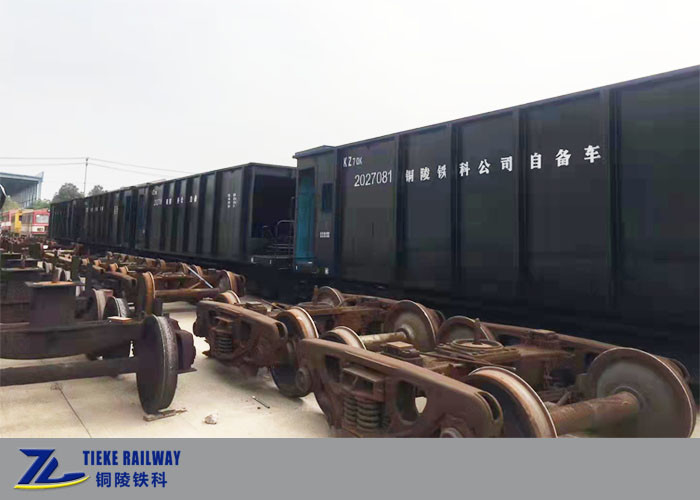

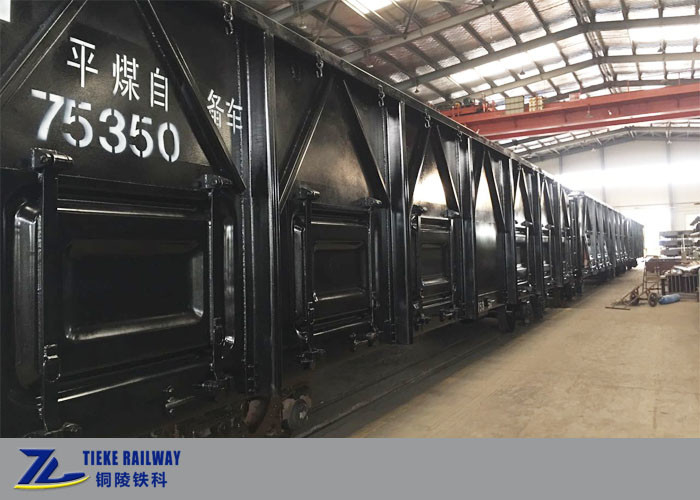

Application photos:

70t Heavy Load Railway Open Top Wagon 80km/h For General Purpose 0



70t Heavy Load Railway Open Top Wagon 80km/h For General Purpose 1

 FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.

Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
