Place of Origin:
China
Brand Name:
Tieke
Model Number:
NX70
This wagon is mainly composed of chassis, floor, container lock device, end wall, coupler buffer, brake system, and bogies.
Main features :
Main technical parameters:
Name | 70 Tons Load Railway Flat Wagon Container Wagon 1435 mm Standard Gauge TB |
Application | Transport containers by railway or railroad |
Load | 70t |
Tare weight | 23.8t |
Axle load | 23t |
Gauge | 1435mm |
Wheel diameter | 840mm |
Number of axles | 4 |
Bogie type | K6 Casting bogie |
Coupler type | #17 New interlock coupler, grade E steel |
Coupler center height | 880mm |
ISO container loading ground to rail surface distance(empty) | 1216mm |
Length | 16366mm |
Min radius | 145m |
Brake type | Air brake +park hand brake |
Brake ratio | 7.8 |
Brake distance | ≤1400mm |
Design speed | 120km/h |
Limit gauge | Comply with Comply GB146 1-83 ‘standard gauge railway rolling stock gauge’ |
Container railway loading condition:
S/N | Containers | Max. Gross Weight |
1 | 1×ISO 20’ Container | 1×30.48t |
2 | 2×ISO 20’ Container | 2×30.48t |
3 | 1×ISO 40’ Container | 1×30.48t |

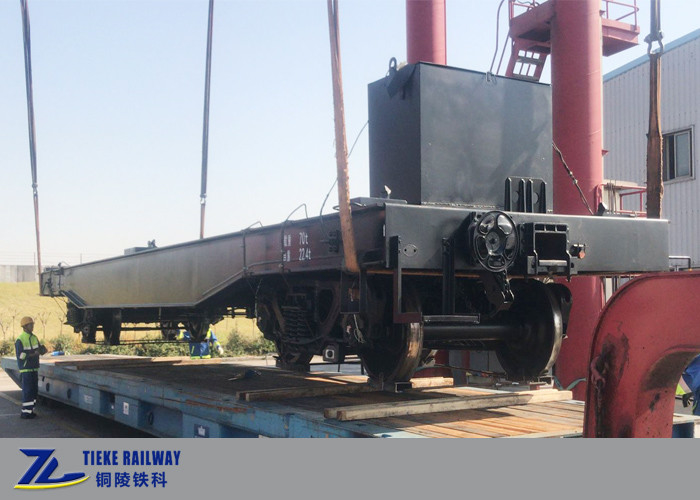

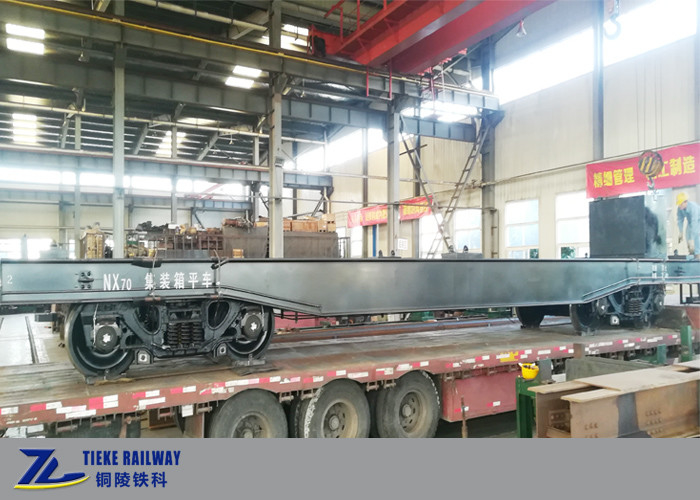

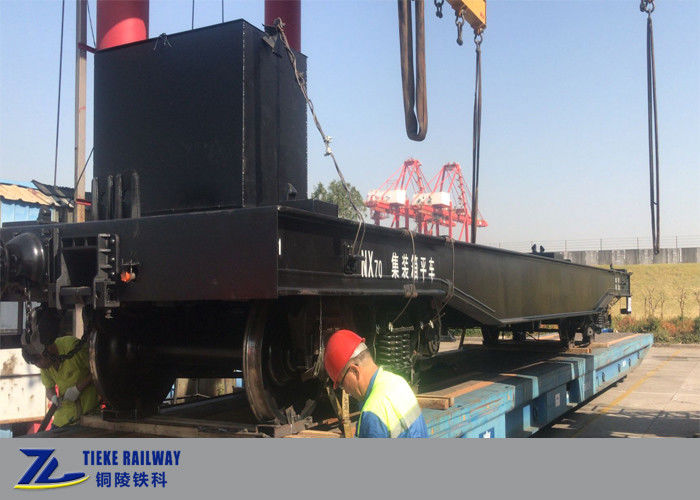

Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Application photos:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
