Low Floor Railway Freight Wagon 80km/H UIC Approved For 1435mm Gauge Maintain Rail

Low Floor Railway Freight Wagon 80km/H UIC Approved For 1435mm Gauge Maintain Rail

80km/H Railway Freight Wagon

UIC Railway Freight Wagon

1435mm Gauge Rail Freight Wagon

Place of Origin:

China

Brand Name:

Tieke

Model Number:

PD30

Contact Us
Request A Quote
Product Details
Name:
Railway Freight Wagon Low Floor Flat Wagon For Railway Maintain
Application:
Transport Railway Maintain Materials Like Rail Rows, Sleepers , Etc
Railway Gauge:
1435 Mm
Pay Load:
30 Tons
Tare Weight:
12.5 Tons
Bogie Type:
Welded Structure Bogie
Coupler:
No.2 Coupler
Design Speed:
80 Km/h
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Nude packing with support base and with anti-collision protection
Delivery Time
3-6 months
Payment Terms
T/T, L/C
Supply Ability
1000 sets per year
Product Description

Railway Freight Wagon Low Floor Flat Wagon For Railway Maintain


Brief introduction:

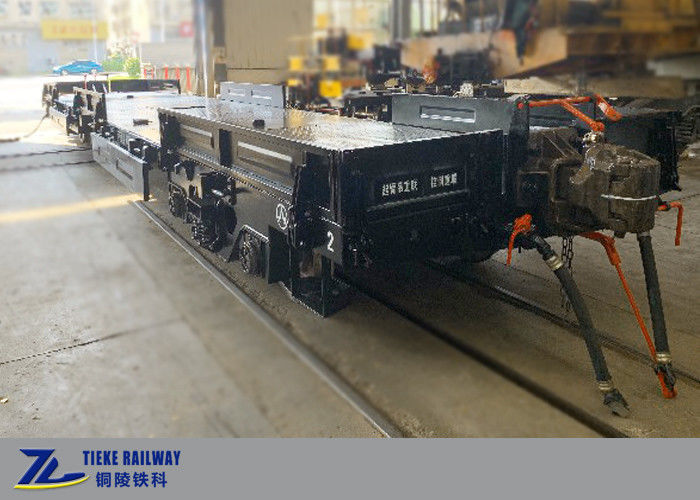

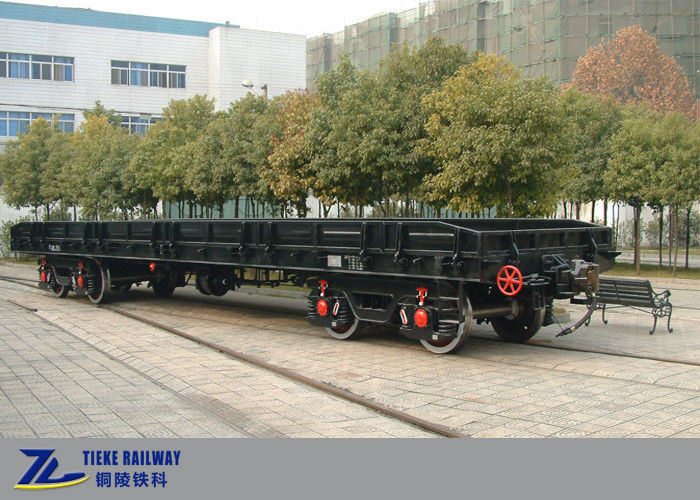

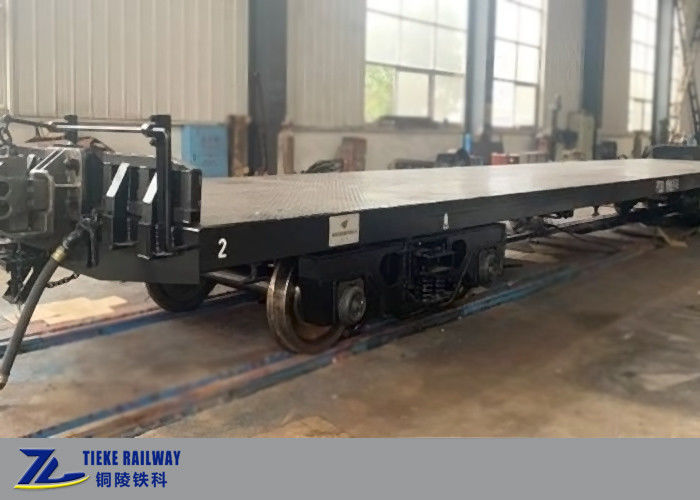

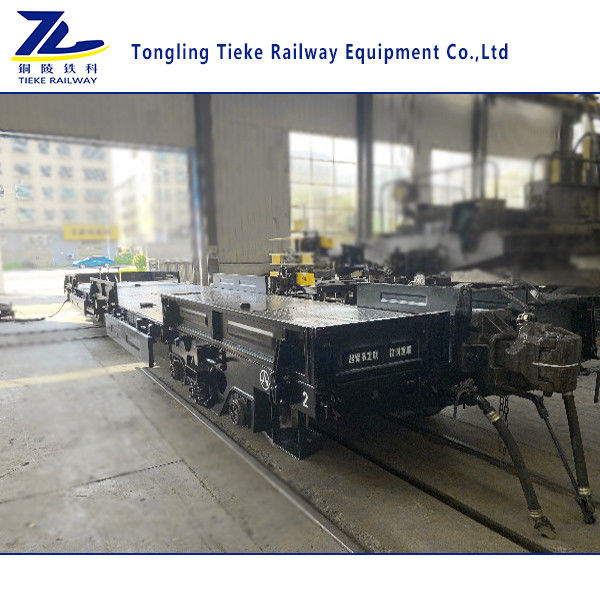

PD30 Railway low floor flat wagon is a low floor vehicle designed for urban railway construction and transportation equipment. It is pulled by rail truck, locomotive or other powered vehicles. It is used to transport rails, rail rows, sleepers, and other construction materials for urban subway construction units. Large and medium-sized industrial and mining enterprises, forests and local railways can also use it as a tool of transportation.

This type flat wagon is mainly composed of chassis, bogie, floor, air brake system, hand brake system, coupler buffer. The flat wagon chassis and the bogies are connected by center plate.



Main features :

  • Low floor railway vehicle
  • Stable running
  • Stable dynamic strength
  • Reliable braking performance
  • Easy operation and maintenance
  • Safety
  • Wide application: could load railway rail rows, sleepers, machines, and other building materials.



Main technical parameters:

Name Railway Freight Wagon Low Floor Flat Wagon For Railway Maintain
Application Transport railway maintain materials like rail rows, sleepers , etc
Load 30t
Tare weight 12.5t
Gauge 1435mm
Wheel diameter 630mm
Number of axles 4
Fixed axle distance of bogie 1600mm
Bogie type Welded structure bogie
Coupler type Front connection of No. 2 coupler
Coupler center height 880±10mm
Height from rail to floor 800 mm
Dimension(Length*width*height) 13980mm×2400mm×800mm
Min radius 100m
Brake type Air brake +park hand brake
Design speed 80km/h
Limit gauge Comply with CJJ96-2003 Metro B2 Limit gauge



Package and delivery:

Nude pack with support base and with anti-collision protection.

Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.

Low Floor Railway Freight Wagon 80km/H UIC Approved For 1435mm Gauge Maintain Rail 0



FAQ:

Q1: Are you a trading company or a factory?

A: We are directly a factory and we manufacture and export railway wagons directly.



Q2: Do you have design ability to provide customized railway vehicles?

A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.



Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?

A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.



Q4: Why should I choose you, compared with your competitors?

A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.



Q5: What should I provide to get a quotation from you?

A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
