Place of Origin:
China
Brand Name:
Tieke
Model Number:
C70
Breif introduction:
C70 Railway Coal wagon high sided open top wagon is used on Chinese standard gauge railway. We are also able to design narrow gauge, meter gauge open wagons with side hatches or without any side hatches. The main purpose of this wagon is to transport mineral bulk goods like coal, ore and other building materials. The most common used load is 70 tons and we could also design 40 tons, 50 tons, 60 tons or 80 tons wagons according to customer requriements.
The unloading could be by manual or by dumper's mechanized unloading. In case customer need to unload by manual, we could design unload hatches on two side walls. In case customer need to unload by dumpers, no unload hatches will be needed and the goods will be directly turnover from the open top. To meet continously unloading without decoupling, we will install rotatable coupler on one end and fixed coupler on another end.
Tieke has been producing various railway wagons for over 10 years and we are able to customize to customer special purpose.
Main technical parameters:
|
Name |
Standard Gauge/Narrow Gauge/Meter Gauge Coal Wagon High Sided Open Top Wagon |
|
Application |
Transport ores, coals, building materials |
|
Load |
70t |
|
Tare weight |
≤24t |
|
Capacity |
77 m3 |
|
Axle load |
25t |
|
Gauge |
1435mm, 1067mm, 1000mm |
|
Coupler type |
#17 Grade E Steel and No.16 rotatable coupler |
|
Coupler center height(empty) |
880 mm |
|
Length |
13970 mm |
|
Bogie type |
K6 Bogie |
|
Fixed axle distance |
1830mm |
|
Wheel diameter |
840mm |
|
Brake method |
Air brake |
|
Brake ratio |
7.8 |
|
Max. running speed |
80 km/h |
|
Min radius |
145m |
|
Lifespan |
25 years |
|
Limit gauge |
Comply with Comply GB146.1 1983 ‘standard gauge railway rolling stock gauge’ |

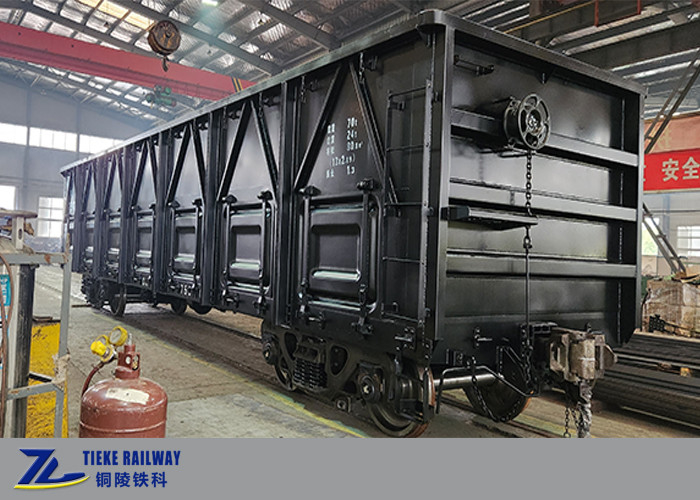

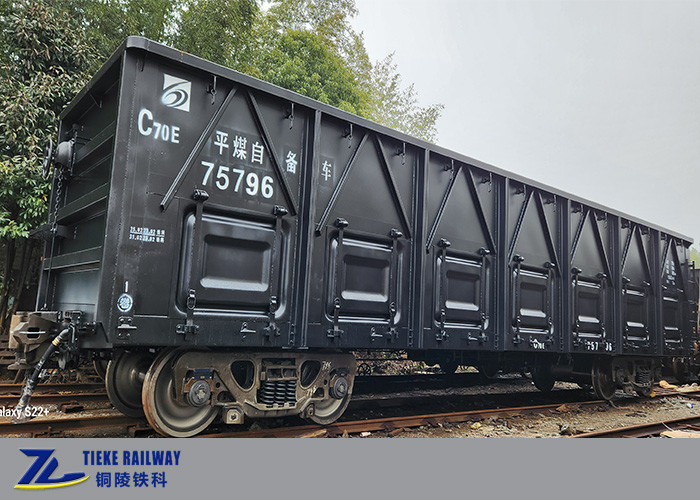

Open Wagon with manual unloading hatches:
Open wagon without unloading hatches:

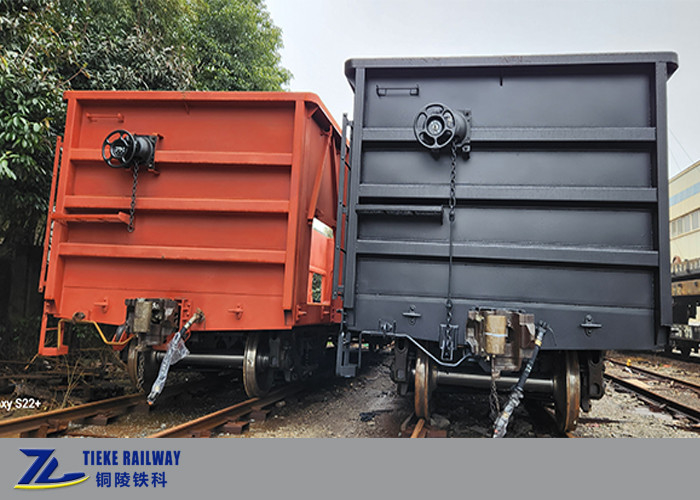

Rotable End & Rotatable Coupler No.16 Coupler or AAR FR Coupler:
Wagon Carriage Side Wall Assembly:
Wagon Body Welding Assembly:
Install air brake pipelines:
Wagon Painting: Paint design is according to customer requirements
K6 Casting Wagon Bogie:
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
